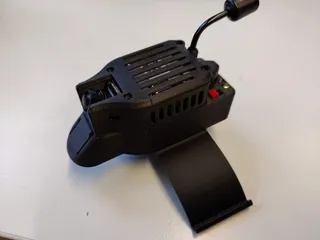

Quick mount mobile holder for the Radiomaster TX16s

Quick mount mobile holder for the Radiomaster TX16s.

Holds a mobile phone or similar (63 - apx. 90mm width)  for use  with Qgroundcontrol and Ardupilot or similar.

Hardware:

1pcs apx. 60mm long 4.5mm (max 5mm) spring in tension.

1pcs 28-30mm M3 bolt with lock nut

2pcs 2x10mm self tapping screws

2pcs 3x apx 16mm self tapping screws

To get this to work you also need to be able to connect to the FC using Wifi or similar. For this you can use ESP82266 or ESP32 connection. I guess it can also be possible to have the phone connected with Bluetooth to Crossfire to get telemetry.

https://ardupilot.org/copter/docs/common-esp8266-telemetry.html

https://ardupilot.org/copter/docs/common-esp32-telemetry.html
