{"data":{"model":{"id":"247516","slug":"sterilite-20-quart-filament-enclosure-20-516-inch-","name":"Sterilite 20 quart filament enclosure 2.0 5/16 inch rods","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.5000000000","myRating":null,"ratingCount":4,"description":"

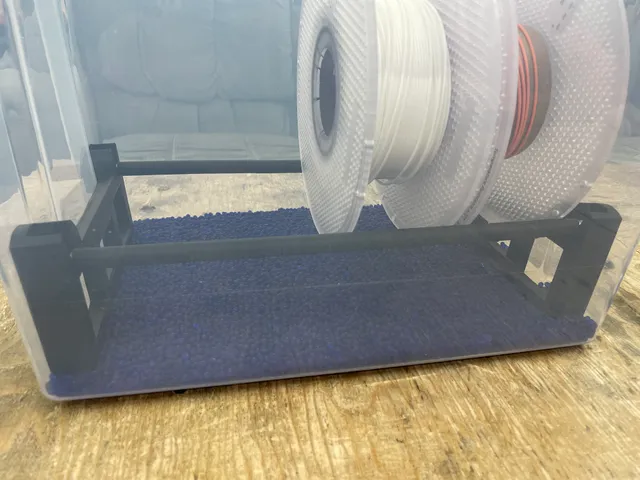

Also check out my silica gel bead container that fits at the bottom of the sterilite containers, underneath the spools.

This is my second remix of nikutama05's (on thingiverse) filament storage box that holds 4 spools of filament with these changes:

Designed for US-based 5/16 threaded rods. You need 2 of these that are each 12 inches long.
Compatible with inexpensive 608 bearings (as used in skate/skateboard wheels). You need 4 bearings per spool (12 bearings total).
Holes were cut in the very large side supports to significantly reduce filament use, while maintaining their strength.
I added a new model \"plugs\" that are various heights to slide into the side supports and hold the rods tight and press the side supports against the storage box walls. This keeps the rods from shifting around.

New in 2.0

Bearing spacers (no more clips)!
Combination bearing holders and filament guides that press-fit together. I recommend a tiny bit of CA glue to keep the two halves from separating.
Tiny spacer ring for fine tuning

You'll need to print:

2x Base
8x Spacers
32x Bearing holders

I did not include the filament guides and PTFE tubing stuff as I used someone else's model for those, and it really depends on your exact need as far as which style to use..

","category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","description":"Add cool improvements to your 3D printer - drybox, filament buffer, or extruder visualizer. These smart ideas will make your printer even better!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-08-07T17:35:58.778307+00:00","firstPublish":"2022-07-25T03:33:50.324320+00:00","datePublished":"2022-08-07T17:35:58.762859+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"New version of this airtight filament enclosure that is much easier to assemble.","likesCount":31,"makesCount":5,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":114,"displayCount":943,"filesCount":6,"privateCollectionsCount":28,"publicCollectionsCount":25,"pdfFilePath":"media/prints/247516/pdfs/247516-sterilite-20-quart-filament-enclosure-20-516-inch-rods-05994719-d9dc-44b4-bccc-a927a2e085f1.pdf","commentCount":7,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"1099484","filePath":"media/prints/247516/images/2228927_62332695-e81b-4591-85f2-6c89150b0f72/tempimage9ijmqw.jpg","rotation":0,"imageHash":"IggOHYKmmJiAeHiJh3h3h6eA2AqM","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"images":[{"id":"1099484","filePath":"media/prints/247516/images/2228927_62332695-e81b-4591-85f2-6c89150b0f72/tempimage9ijmqw.jpg","rotation":0,"imageHash":"IggOHYKmmJiAeHiJh3h3h6eA2AqM","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"1099483","filePath":"media/prints/247516/images/2228928_1b96f60f-1fac-4533-9548-5f5cb3fc339b/tempimage13dumn.jpg","rotation":0,"imageHash":"JPgFHYTGd2ZpdnaPZIaIdpd2z2n3","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"1128824","filePath":"media/prints/247516/images/2288209_6de2e904-3027-48bf-b96b-65f8162651e7/img_7367.jpeg","rotation":0,"imageHash":"YPgFHQZICIV7p2Z4inQ1R/R4an+H","imageWidth":960,"imageHeight":1280,"__typename":"PrintImageType"},{"id":"1128827","filePath":"media/prints/247516/images/2288213_81e4e797-60af-4f00-828d-f95c0a6adf7b/img_7365.jpeg","rotation":0,"imageHash":"nFgOJYyWipZkiHd/iId3io+G9IYY","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"}],"imagesCount":4,"tags":[],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"1140395","filePreviewPath":"media/prints/247516/stls/2228868_88726b2b-e456-45fa-9b34-0f22ab2ea3b7/20-qt-dry-box_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"15671","modelId":"71225","modelName":"Sterilite 20 qt Filament Enclosure - 5/16 inch remix","modelAuthor":{"id":"46829","handle":"Scott","verified":false,"publicUsername":"Scott","__typename":"UserType"},"model":{"id":"71225","name":"Sterilite 20 qt Filament Enclosure - 5/16 inch remix","slug":"sterilite-20-qt-filament-enclosure-516-inch-remix","datePublished":"2021-07-12T18:49:35.018624+00:00","image":{"id":"406151","filePath":"media/prints/71225/images/775454_fc8e43a4-0380-4974-8714-53b4493ea72d/large_display_img_1174_71225.jpeg","rotation":0,"imageHash":"YpcJDYTWp5ibeHaPhyS3ggh2hUBn","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"1","name":"Creative Commons \u2014 Attribution","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"__typename":"PrintType","eligibleForNomination":false,"priceBeforeSale":null,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"highlightedModels":{"models":[{"id":"249486","name":"GoPro Hero 9 10 11 12 13 USB passthrough battery door","slug":"gopro-hero-9-10-11-12-13-usb-passthrough-battery-d","ratingAvg":"4.8823529412","likesCount":228,"liked":null,"datePublished":"2025-01-21T02:07:55.387244+00:00","dateFeatured":null,"firstPublish":"2022-07-28T03:02:57.329851+00:00","downloadCount":2340,"mmu":false,"category":{"id":"26","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","__typename":"CategoryType"},{"id":"26","name":"Photo & Video","nameEn":"Photo & Video","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-01-21T02:07:55.404708+00:00","image":{"id":"1106198","filePath":"media/prints/249486/images/2243344_ba73ee83-862e-4dc1-83d2-023209c1f815/img_5354.jpeg","rotation":0,"imageHash":"YQgKHYT4h4iSWIhtlYiVZ/pwlx+H","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},"imagesCount":2,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"251166","name":"Silica gel bead container","slug":"silica-gel-bead-container","ratingAvg":"5.0000000000","likesCount":58,"liked":null,"datePublished":"2023-04-29T16:23:00.726064+00:00","dateFeatured":null,"firstPublish":"2022-07-31T00:36:14.477385+00:00","downloadCount":507,"mmu":false,"category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-04-29T16:23:00.746072+00:00","image":{"id":"1112627","filePath":"media/prints/251166/images/2256533_47ce0895-1ecf-454e-bb45-a1b8b58dd706/img_7285.jpeg","rotation":0,"imageHash":"IwgSBYCml5iXaHh/hpeGiaaJj634","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},"imagesCount":6,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"247371","name":"DPS3005 (DPS5005) Power Supply Case","slug":"dps3005-dps5005-power-supply-case","ratingAvg":"0","likesCount":33,"liked":null,"datePublished":"2022-12-26T15:32:48.694435+00:00","dateFeatured":null,"firstPublish":"2022-07-24T20:25:53.459338+00:00","downloadCount":192,"mmu":false,"category":{"id":"52","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"52","name":"Electronics","nameEn":"Electronics","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-12-26T15:32:48.716091+00:00","image":{"id":"1098934","filePath":"media/prints/247371/images/2227757_93ab95ad-75c4-40b3-92ee-b2ec9a3bfc70/large_display_img_1458_247371.jpeg","rotation":0,"imageHash":"JwgOBYD4mGd1mHh8dId4efV9fMr1","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},"imagesCount":5,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"247516","name":"Sterilite 20 quart filament enclosure 2.0 5/16 inch rods","slug":"sterilite-20-quart-filament-enclosure-20-516-inch-","ratingAvg":"4.5000000000","likesCount":31,"liked":null,"datePublished":"2022-08-07T17:35:58.762859+00:00","dateFeatured":null,"firstPublish":"2022-07-25T03:33:50.324320+00:00","downloadCount":114,"mmu":false,"category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-08-07T17:35:58.778307+00:00","image":{"id":"1099484","filePath":"media/prints/247516/images/2228927_62332695-e81b-4591-85f2-6c89150b0f72/tempimage9ijmqw.jpg","rotation":0,"imageHash":"IggOHYKmmJiAeHiJh3h3h6eA2AqM","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"imagesCount":4,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"890959","name":"Segway Navimow i-series AirTag holder","slug":"segway-navimow-i-series-airtag-holder","ratingAvg":"4.6666666667","likesCount":29,"liked":null,"datePublished":"2025-07-23T00:11:20.044107+00:00","dateFeatured":null,"firstPublish":"2024-05-25T03:41:46.857318+00:00","downloadCount":283,"mmu":false,"category":{"id":"64","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"64","name":"RC & Robotics","nameEn":"RC & Robotics","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-07-23T00:11:20.062253+00:00","image":{"id":"3172500","filePath":"media/prints/890959/images/6821324_507c17fa-cccc-409f-b9a1-dc1d30d3e7fd_e812a352-1774-4c41-858d-2ed5c6e87f63/img_6096.jpeg","rotation":0,"imageHash":"F/gJDYBKZnpwZXi2lZmIiHkwbQbj","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},"imagesCount":7,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"247372","name":"Gravitrax column bridge spacer","slug":"gravitrax-column-bridge-spacer","ratingAvg":"4.0000000000","likesCount":27,"liked":null,"datePublished":"2023-11-28T20:09:09.904795+00:00","dateFeatured":null,"firstPublish":"2022-07-24T20:25:52.459338+00:00","downloadCount":174,"mmu":false,"category":{"id":"37","path":[{"id":"30","name":"Toys & Games","nameEn":"Toys & Games","__typename":"CategoryType"},{"id":"37","name":"Building Toys","nameEn":"Building Toys","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-11-28T20:09:10.379207+00:00","image":{"id":"1098938","filePath":"media/prints/247372/images/2227762_5b60bebb-e10c-4688-b104-c311fa87f55d/large_display_img_1178_247372.jpeg","rotation":0,"imageHash":"mEkKHYRnaGWaZHeGiAeXYvd2bG/G","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},"imagesCount":5,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"348542","name":"Sliding lock for cardboard box playhouse","slug":"sliding-lock-for-cardboard-box-playhouse","ratingAvg":"0","likesCount":22,"liked":null,"datePublished":"2022-12-24T19:25:36.865849+00:00","dateFeatured":null,"firstPublish":"2022-12-24T19:24:08.360696+00:00","downloadCount":57,"mmu":false,"category":{"id":"47","path":[{"id":"30","name":"Toys & Games","nameEn":"Toys & Games","__typename":"CategoryType"},{"id":"47","name":"Other Toys & Games","nameEn":"Other Toys & Games","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-12-24T19:25:36.887367+00:00","image":{"id":"1439860","filePath":"media/prints/348542/images/2964512_dfc28475-547a-440e-a00a-508d2096fb72/img_5445.jpeg","rotation":0,"imageHash":"ZQgKDYK4mHZ7eHh/dtZmdJC1HDr7","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},"imagesCount":2,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"251704","name":"Roomba under cabinet bumper","slug":"roomba-under-cabinet-bumper","ratingAvg":"0","likesCount":21,"liked":null,"datePublished":"2022-08-01T01:11:09.739216+00:00","dateFeatured":null,"firstPublish":"2022-08-01T01:11:09.739216+00:00","downloadCount":33,"mmu":false,"category":{"id":"4","path":[{"id":"3","name":"Household","nameEn":"Household","__typename":"CategoryType"},{"id":"4","name":"Kitchen","nameEn":"Kitchen","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-08-01T01:12:07.787977+00:00","image":{"id":"1114525","filePath":"media/prints/251704/images/2260835_33fbd7b1-0716-47c1-8570-239f9831bd44/img_7302.jpeg","rotation":0,"imageHash":"HEkKNYi7moiZlnifhHd4en9X+nam","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},"imagesCount":4,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"46829","handle":"Scott","verified":false,"dateVerified":null,"publicUsername":"Scott","avatarFilePath":"media/auth/avatars/dd/ddd84ab7-820e-4323-b2d9-6f2b59ff9130.jpeg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"}],"featured":false,"__typename":"HighlightedModelsType"},"designer":false,"stripeAccountActive":true,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}

Sterilite 20 quart filament enclosure 2.0 5/16 inch rods
