8020 Dowel Rod Hangers

These 8020 Dowel Rod Hangers are used to hang wire for organization and dispensing.

Hardware Required:

1 x 3/8" or ½" Tubing or Dowel Rod

Print BOM:

2 x 8020 Dowel Rod Hangers of the same size as your extrusions

Print Parameters:

Material: PLA, PETG, ABS, etc.

Recommended Settings: 0.4 mm Nozzle, 0.2 mm Slice Height, 5 Bottom, Top and External Perimeters, 15% or greater infill.

Secondary Settings: 0.6 mm Nozzle, 0.3 mm Slice Height, 5 Bottom, Top, and External Perimeters, 15% or greater infill.

I have successfully printed these files using both of the recommended settings.

Supports: None

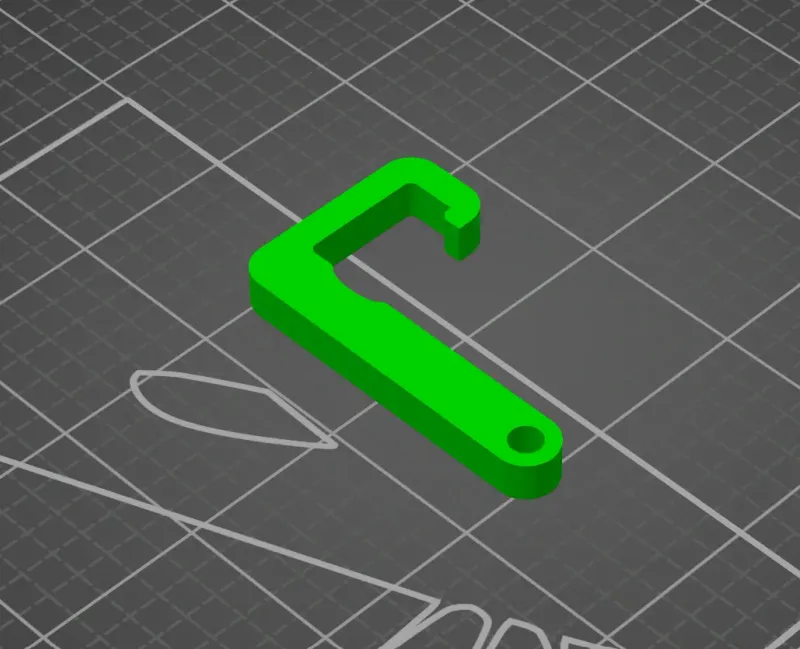

If you print in the below orientation there should be no need for supports.
