Skadis 40% Keyboard Stand

A 3D printable Keyboard Stand for the Ikea Skadis Pegboard. It allows you to securely display your Keyboard on the pegboard. The stand was specifically designed for 40% (or smaller) keyboards but has been proven to also work for bigger ones.

Features

The stand is designed so that the keyboard mostly rests on the long contact surface of the stand which helps distribute the weight evenly and also hold it more securely.

The stand also prevents having any pressure focus points on the edge of your keyboard which is typically the case with the thin Ikea Skadis Hooks.

Instruction

1. Download the model and load it into your prefered slicer

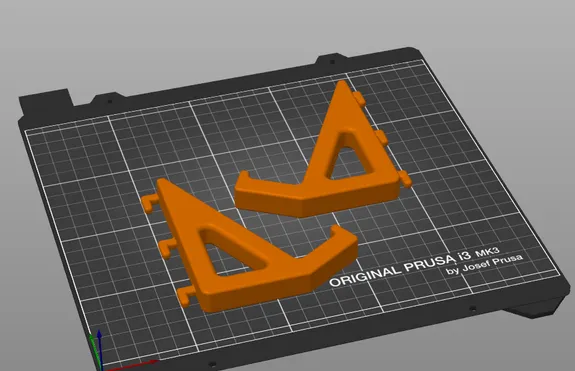

2. In your slicer: duplicate the stand and mirror it on the X-Axis or Y-Axis



3. Slice the model and print it

Specifications

The keyboard stand has the following dimension of …

• Length: 100.3 mm
• Width: 102.2 mm
• Depth: 15 mm

and can hold keyboards with a maximum size of …

• Length: depends on the size of your pegboard
• Width: 100 mm
• Height: 29 mm
• Weight: dont put a full brass keyboard on it

The skadis keyboard stand is mostly for keyboard size of 40% or smaller, but it can be used for bigger keyboard sizes.

Print Settings

• Infill: 15-20% Gyroid
• Perimeters: 2-3
• Layer height: 0.2mm
• Supports: none

Inspiration

The stand takes inspiration from the existing Skadis Hook as well as the phenomenal TrashiStand - a keyboard stand for the shelf. Also special thanks to DeadCatAlive for prototyping and valuable feedback.
