Velcro Mount for Ikea Skadis
A mount to attach Velcro / Hook and Loop loops to IKEA SKÅDIS pegboards. Comes in various sizes.
77
157
1
2503
updated
January 26, 2025
Description
PDFA strong mount to attach Velcro / hook and loop loops and straps to IKEA SKÅDIS pegboards. It is a remix of the Velcro Clip by Pavel Riedl that has been adapted to work with Skadis T-Nuts for easy and secure installation on Skadis pegboards.
Works with cinch straps as well as velcro tape from a roll.
 | Read more about the Skadis T-Nuts Mounting System and check out the Skadis T-Nuts Collection for more Skadis accessories that use T-Nuts. |
BOM
| Qty | Description | Sourcing |
|---|---|---|
| 1 | M2.5x12mm (or longer) Socket Head Cap Screw | Aliexpress |
| 1 | M2.5 DIN934 Hex Nut | Aliexpress |
Printed Parts
| Qty | Part | Download |
|---|---|---|
| 1 | Velcro Mount (choose size and orientation) | this project |
| 1 | Skadis T-Nut M2.5 | Download here |
Sizes
Files are available in the most common metric and imperial sizes and in vertical or horizontal orientation.
Metric
| File | Orientation | Velcro Width |
|---|---|---|
| Velcro Mount Vertical 8mm.stl | Vertical | 8mm |
| Velcro Mount Vertical 10mm.stl | Vertical | 10mm |
| Velcro Mount Vertical 12.5mm.stl | Vertical | 12.5mm |
| Velcro Mount Vertical 15mm.stl | Vertical | 15mm |
| Velcro Mount Vertical 16mm.stl | Vertical | 16mm |
| Velcro Mount Vertical 20mm.stl | Vertical | 20mm |
| Velcro Mount Vertical 25mm.stl | Vertical | 25mm |
| Velcro Mount Vertical 30mm.stl | Vertical | 30mm |
| Velcro Mount Vertical 50mm.stl | Vertical | 50mm |
| Velcro Mount Horizontal 8mm.stl | Horizontal | 8mm |
| Velcro Mount Horizontal 10mm.stl | Horizontal | 10mm |
| Velcro Mount Horizontal 12.5mm.stl | Horizontal | 12.5mm |
| Velcro Mount Horizontal 15mm.stl | Horizontal | 15mm |
| Velcro Mount Horizontal 16mm.stl | Horizontal | 16mm |
| Velcro Mount Horizontal 20mm.stl | Horizontal | 20mm |
| Velcro Mount Horizontal 25mm.stl | Horizontal | 25mm |
| Velcro Mount Horizontal 30mm.stl | Horizontal | 30mm |
| Velcro Mount Horizontal 50mm.stl | Horizontal | 50mm |
Imperial
| File | Orientation | Velcro Width |
|---|---|---|
| Velcro Mount Vertical 1_2in.stl | Vertical | ½ inch |
| Velcro Mount Vertical 5_8in.stl | Vertical | 5/8 inch |
| Velcro Mount Vertical 3_4in.stl | Vertical | ¾ inch |
| Velcro Mount Vertical 1in.stl | Vertical | 1 inch |
| Velcro Mount Vertical 1.5in.stl | Vertical | 1 ½ inch |
| Velcro Mount Vertical 2in.stl | Vertical | 2 inch |
| Velcro Mount Horizontal 1_2in.stl | Horizontal | ½ inch |
| Velcro Mount Horizontal 5_8in.stl | Horizontal | 5/8 inch |
| Velcro Mount Horizontal 3_4in.stl | Horizontal | ¾ inch |
| Velcro Mount Horizontal 1in.stl | Horizontal | 1 inch |
| Velcro Mount Horizontal 1.5in.stl | Horizontal | 1 ½ inch |
| Velcro Mount Horizontal 2in.stl | Horizontal | 2 inch |

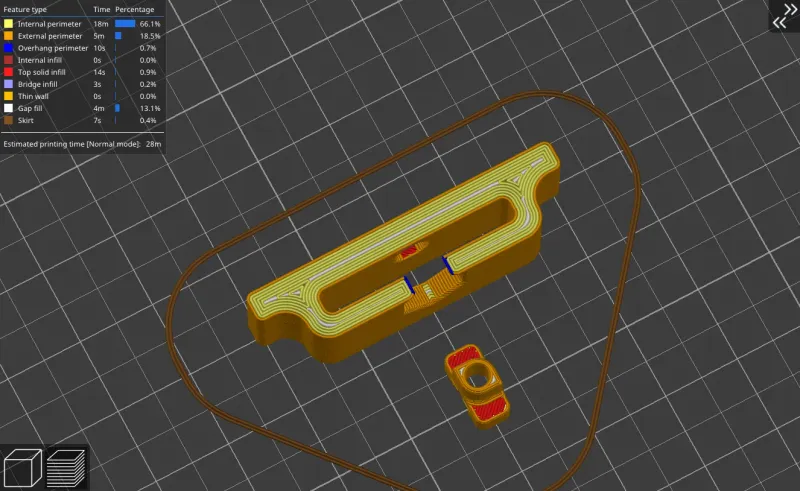

Printing

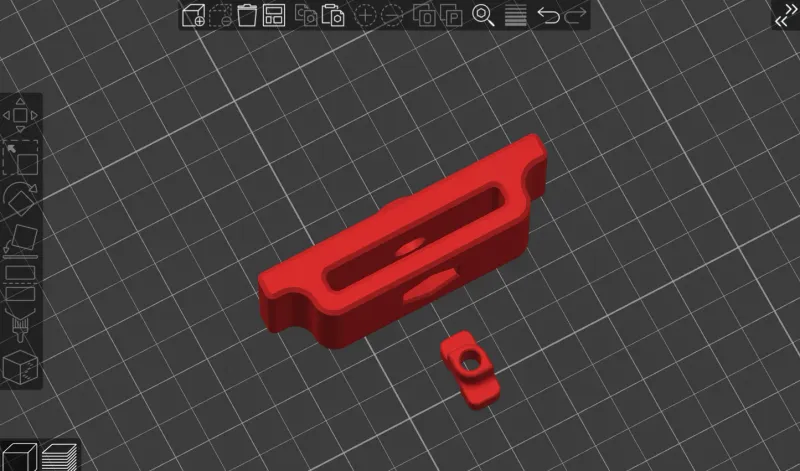

Print the parts in the original orientation. All STL files are pre-rotated.
- Material: PLA, PETG, pretty much anything
- Layer height: 0.2mm
- Extrusion width: 0.4mm
- Perimeters: 7 (important for super strength)
- Infill: 0% / doesn't matter

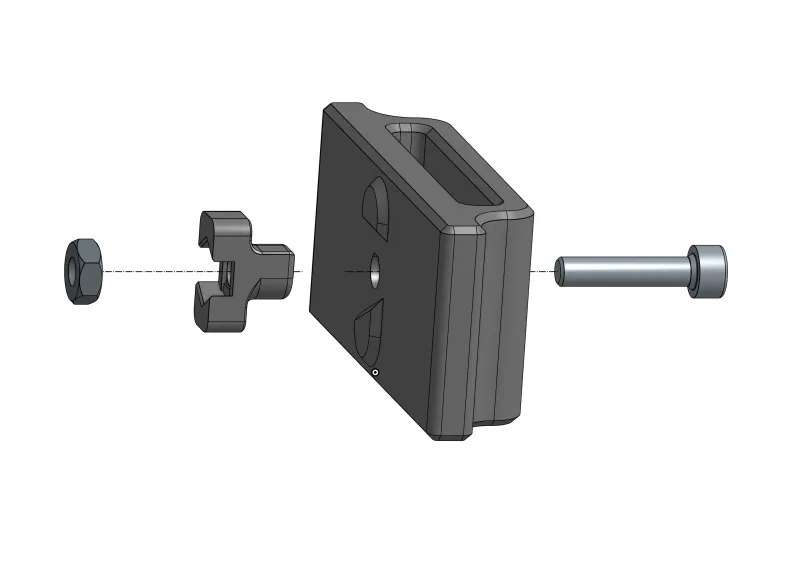

Assembly
- Insert the M2.5 nut into the Skadis T-Nut.
- Stick the M2.5x12mm screw through the Velcro Mount.
- Thread the T-Nut onto the screw and leave it loose so that the T-Nut can freely rotate.

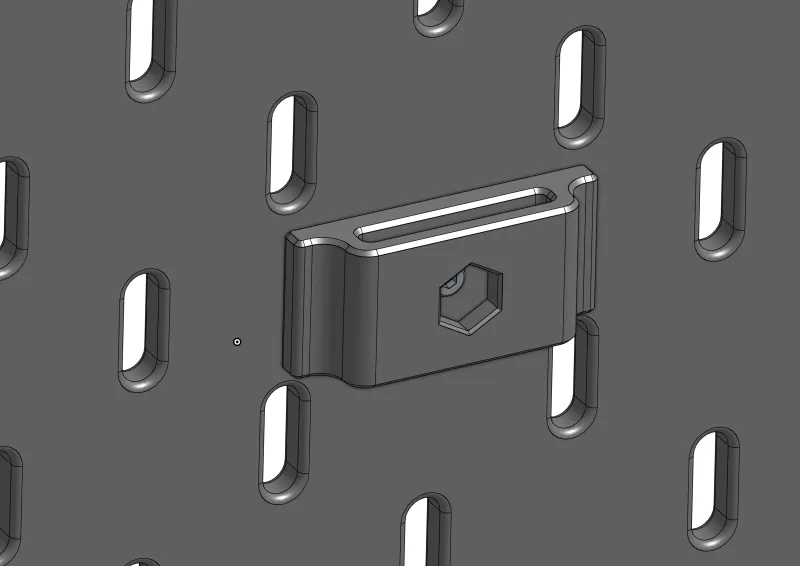

- Position the T-Nut in the vertical orientation and stick the T-Nut through the Skadis peg board.
- Us the alignment guides on the back of the mount to align the part in the center of the peg board hole.
- Tighten the screw. The T-Nut will orient itself in the horizontal position and provide a very secure hold.
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
.
