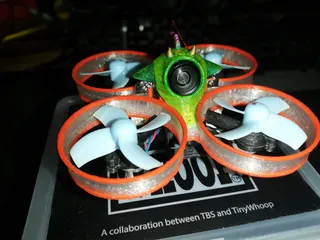

65mm Tiny Whoop Nano Frame

I created these Whoop frames specifically for the Tiny Whoop Nano FC.

UPDATE:

Made quite a few changes and am pleased to say I am happy with the final result.

I designed the 65mm frame as I felt the 55mm was getting too much washout for my liking.

The Camera holder is angled at 20º and thicker and re-designed, you should have less cam holder breakages.

The Motor holder was re-designed as I broke quite a few. There is a hole for rubber or silicone grommets for shock absorption. There are 2 variants, for 6x15 and 6x17 brushed motors.

The Battery holder and motor holders are attached with M1.2x4mm Micro Size Self Tapping Screws.

I added my racing canopy that clips in and swivels over the camera and snap fits to the frame however the frame is designed to work with the stock Tiny Whoop Nano Canopy: https://www.team-blacksheep.com/products/prod:twnano_canopy_black

To Assemble:

1. Feed the Cam and receiver through the bottom and snap in the FC
2. Snap the receiver on top of the FC in the provided cut-out.
3. Snap the camera into the Cam mount.
4. Place the motors in the Motor mounts and screw to the frame.
5. Screw the battery holder to the bottom.
6. Enjoy!

I can't take credit for the Nano Whoop Style Canopy, I found it online somewhere, I can't remember. I pulled it into Fusion 360 and fixed up the mesh.

Note:

The 65mm frame works well with the default FC firmware settings.

Update:

The 55mm frame evolved into its own thing and can be found here: https://www.thingiverse.com/thing:4303729

Update:

Added 7 x 16 frame and motor holders

Print Settings

Printer Brand:

TEVO

Printer:

Tarantula

Rafts:

No

Supports:

Yes

Resolution:

0.2mm
