Excellent engineering, fits absolutely perfectly!

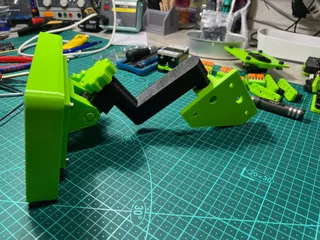

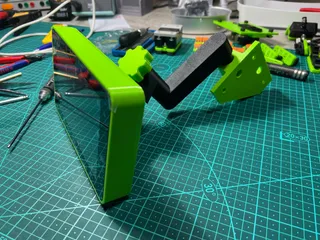

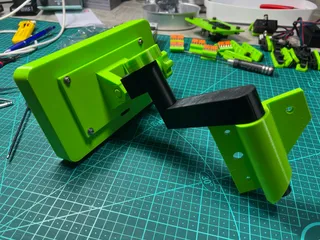

Printed in Spectrum PETG Lime Green (250° and 90°) and in Formfutura TitanX Black Filament (240° and 100°).
RasPi 7" Touch Screen Case and Mount for 3030 Bracket (RatRig V-Core3)
A Raspberry Pi 7" Touch Screen Case and Mount that attaches to a 3030 Corner Bracket
66
292
4
3528
updated
October 31, 2022
Makes
Comments

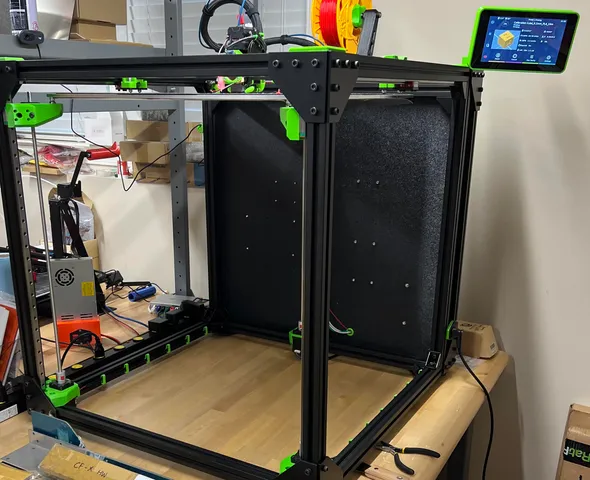

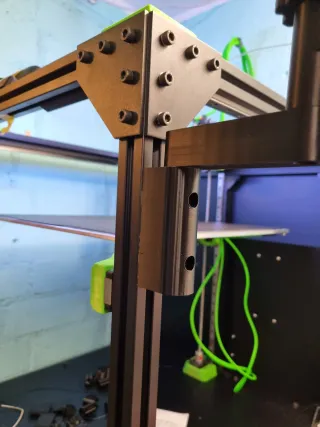

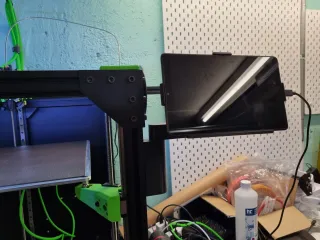

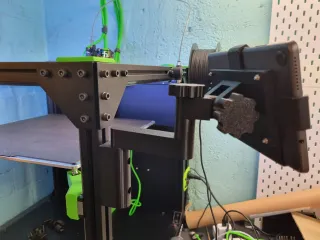

While printed on MK3S+ w/Devil Design PETG, it's mounted on a Rat Rig vCore 3 500mm. Getting the bracket mounted was interesting, for the corner screw I had to use some tape to hold the t-nut in, since the top middle screw is covered and has to be tightened BEFORE the bracket goes on. Perhaps a bit of a design change to expose the top middle screw would make this easier.
Very nice design - I'm very curious how you coded the button - would you please post that code block?
@66dutch_269836 I've added the scripts required to get the Print Start Button to work correctly. I hope they're helpful. Thanks!

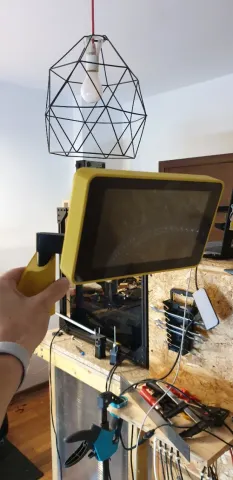

Great design. Printed the threads with 100% infill, very stable. Changed some things to fit my needs, like the tablet holder. Works like a charm.
Very nice design tho, the part where the thread meets the base is a bit flimsy, Mine broke off, but nothing a little epoxy cant fix
@D00M I found that it's best to print the threaded pieces at 100% infill.
I'll edit the instructions to include that info! Thanks!
