Astronomical Telescope "Hadley" - an easy assembly, high performance Newtonian
This telescope assembles with only prints, screws and glue - it is light and easy to use, and total project cost < $150
In the contest Cameras And Accessories
4,456
15 k
156
190 k
updated
August 8, 2024
Makes
Comments
Amazing project. Planning to buy a 3d printer first :D. A question: do you know about any robotized mount 3d print project? Thanks
Not sure where to ask this question so hopefully, this is a good place. I also hope you’ll be patient with my naivety😄! I printed the Hadley and structurally everything is great. I have it perfectly collimated but my question is adjusting the distance from the front section of the scope to the back section. The instructions suggest it should be about 261/4 inches. But I assume for best results that is why people perform a “first focus” where they focus on a stop sign etc a long ways down the road. I have tried that but I am missing something because I can’t ever get the sign in focus. Should 261/4” be close enough or can someone describe for me how to do a first focus in a detailed way. Thanks for the help!
Jez, i allways wanted to build a telescope since I ve seen the skyward150. No am a finally able to, and I've found this one. I am overwhelmed by the options, not to mention headly 2, skyward 200 and all those mods... Where shall I start ..
(deleted)

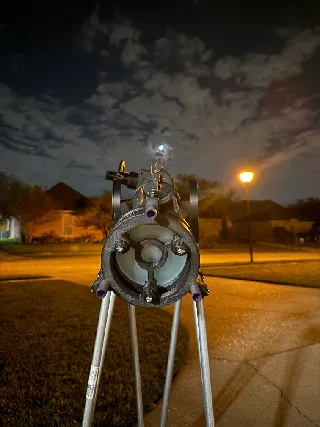

This was an incredible experience! I am convinced that stargazing packs an even bigger emotional punch when you are looking through a telescope you built yourself!
Still having some trouble with the included sites. I think I’ll get a telrad soon.
Update: After printing a vice for my phone, I took some pictures of the supermoon. It was so exciting! (edited)
sorry, where could I find the bom of this project? Thank you so much
@ViroonKongser_921861 I was having a hard time finding it too. It’s in the slideshow but if you still need it here’s the list. #10-24 nut - 50 #10-24 locknut - 3 #10-24 1/2” screw - 50 #10-24 3/4” Screw - 8 #10-24 2” screw - 4 #10-24 1”+ thumb screw - 3 #10-24 1/2” thumb screw - 2-4 Rods 33-36” 12 in aluminum rod Silicone Mirrors
Hope that helps!

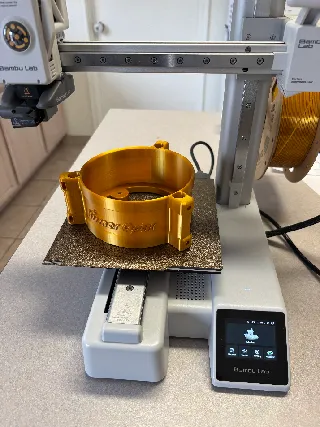

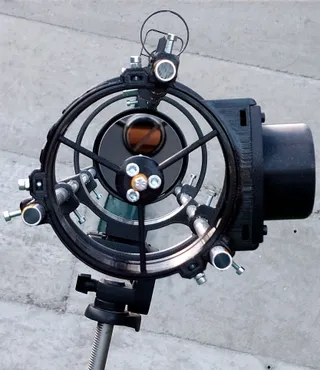

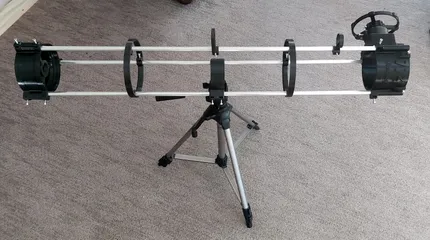

Such an awesome project! Printed in PLA-CF on Bambu Lab A1, got lenses from the maker of the model, printed Hill mount in PLA-CF also. (edited)
@PaukSK_388616 I see that everything is very simple for you, I think I will do the same, can you tell me which models exactly you printed?

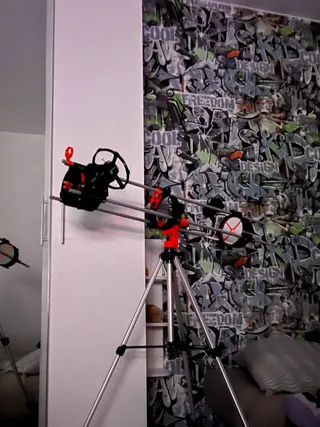

@_3691604 i made this before there was a metric kit, a created few new models, modified existing mesh files to match mine hardware and remade the small mirror adjuster
