LEGO flower post cap

A normal post cap does not look good enough? I have something nice for you.
197
542
11
3676
updated June 6, 2022

Description

PDF

At the moment the LEGO flower post cap is availabel for posts with a diameter of 27.5, 34.5, 42.5, 48.5 and 60.5 mm. But if none of them fits your post it is very simple to scale it. Instructions are below.



Check out my other postcap designs: https://www.printables.com/de/social/256636-seemomster/collections/185470



Instruction for scaling

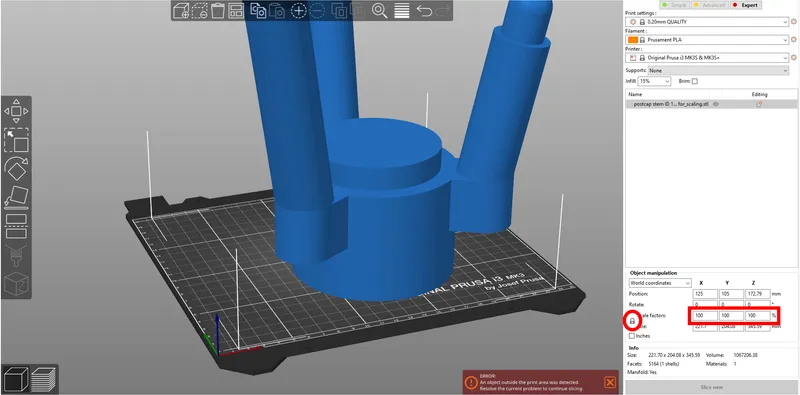

But if none of them fits your post it is very simple to scale it. You import the postcap stem ID 100 mm for_scaling. It will look something like this:

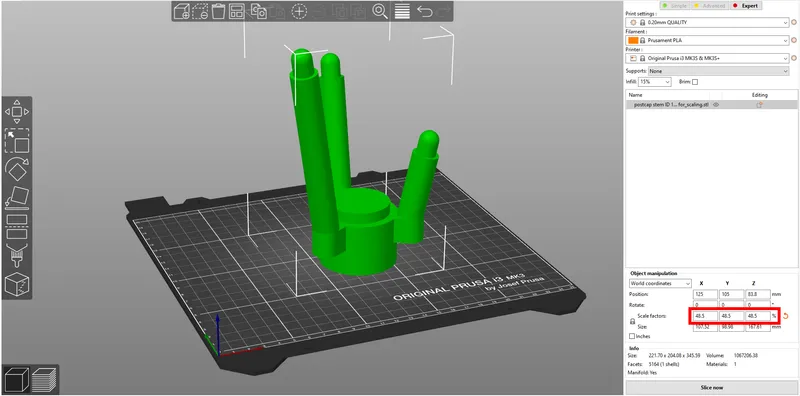

Make sure that the lock for scaling is closed, as shown in the red circle above. Now you can input your post diameter in mm as the Scale factor. I recommend to add a bit tolerance. Measured: 44.2 mm → Scale factor 44.7 mm. For example for a diameter of 48.5 mm it should look like this:

The same has to be done with the postcap flower ID 100 mm for_scaling.
