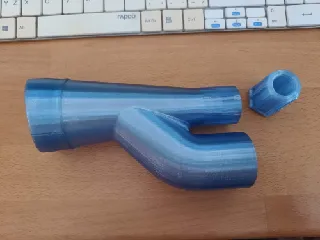

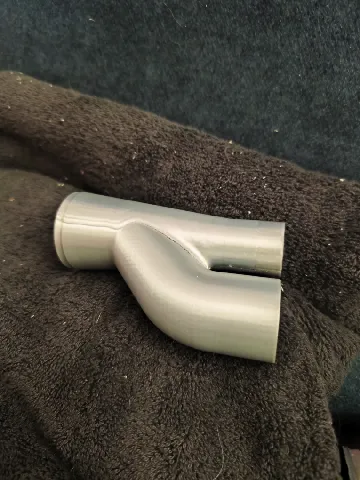

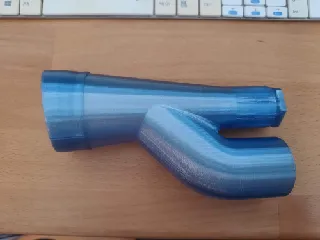

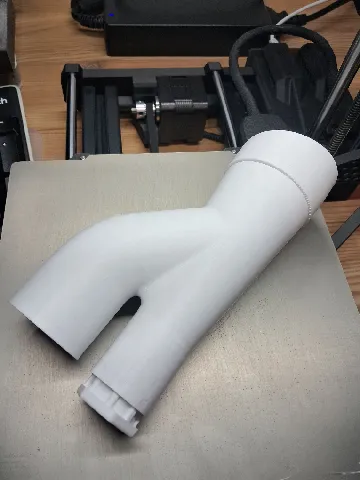

Printed in PETG - works like a charm. Only my Tornador somehow has an M14 thread, so I took some measurements and re-created the adapter in M14 (see https://www.printables.com/model/1738681-tornador-adapter-m14)
Tornador vacuum cleaner connection

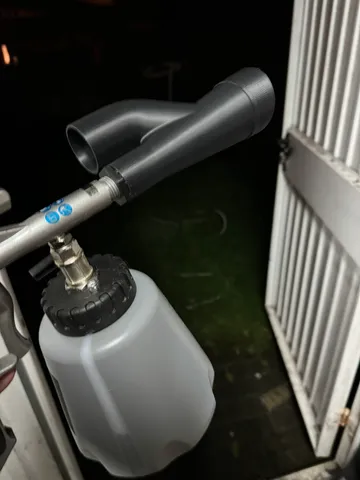

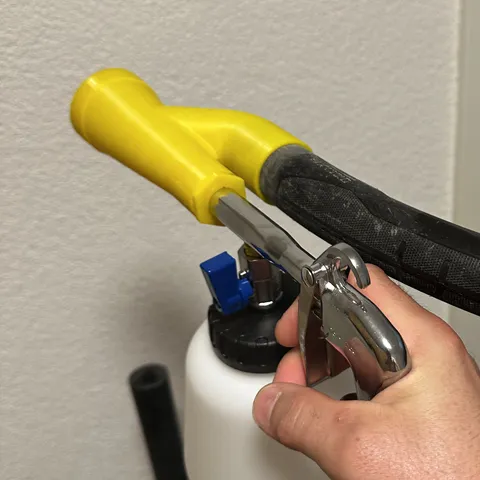

This is Tornador vacuum cleaner connection to suck up the dirt thrown up directly.
The front neck is 12.5 degrees slante
221
2320
5
10 k
updated
July 10, 2023
Makes
Comments
Looks nice😊
Hey, would it be possible to get the step file in order to expand the vacuum hole as currently it is 36mm and for me to use it with mine it has to be 38mm :( Thanks in advance!
@StevenTenev_1896018 You can create a adapter for
Printed fine on my Raise 3D Pro3 with ABS and 100% infill. Attaching the nozzle was a little tricky but since it's on it works like a charm. Adjusted the step file to hold a M22 thread to fit the Tornador Z20. Thanks for sharing.
@AndreasK_1090388 could you share the M22 insert?
Has anyone been able to test if the thread works on the Rag Company tornador?
@PauloAmaral_1802023 Pretty sure it is m18 thread. If yours is that, go for it. Also the guy above was able to edit the file to fit.
@PauloAmaral_1802023 I’m also trying to modify to fit the ray company air blaster did you ever get a remix for it?
View one more comment
Hey, what is the difference between v10 and v14 ?
I printed this for my tornador Z-014 but didnt realize the threads were a different size. Is it possible to make a different version of the V1 piece so it fits the Z-014?
@monotone_317694 i dont know the size of the thread you need. I can upload a fusion file so that you can Change it.
I'm need several test Prints to get the right on (edited)
@plex41 could you upload it? also how do you do custom threads like those on fusion?
View 2 more comments
V10 model is broken on the tornador interface. I little bit up from the neck that the gun connects to has perforations and broken geometry. I would love to use this model but can't because of the broken modeling. :-(
@FiberHelpsYou_395182

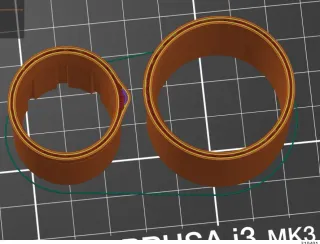

Thanks for your comment. I've been using it since posting it here with no problems. It would be interesting to know your print settings because in some places the wall thickness is only 1mm. I can't find any errors in the geometry that cause holes. I myself printed this part in PETG with a 0.4 nozzle and 0.2 resolution. No holes and so far nothing has broken, Please check the print settings first and look at the layers that are causing problems in the slicer.

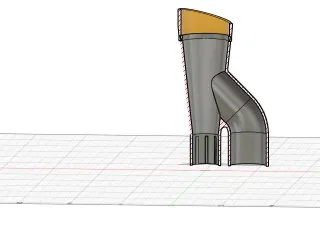

Attached is a cut through V10 (edited)
