DJI RC Mounting Plate (e.g. for bikes and bicycles)

Very sturdy mounting plate modelled for the DJI RC remote control (e.g. used for DJI Mini 3 Pro) intended for biking.
7h 28m
2× print file
0.15 mm
0.40 mm
59.00 g
70
449
0
4657
updated January 24, 2024

Description

PDF

This mounting plate results in a very robust mount for the DJI RC remote control, such as those offered for the DJI Mini 3 Pro drone.
The mount is tailored to the remote control and intended for outdoor use, especially on bicycles.

Note: This design is for the first version of DJI RC (see pictures). It is not compatible with RC2 or newer!

Update: @allg33k published a similar design for the RC2. You can find it here: https://www.printables.com/de/model/724738

This design is the third iteration (= first public version) and fixes all the problems of my previous designs: When the remote is held only at the bottom, the M4 screws fixing the remote would not survive strong shocks. Therefore, the lower M2 screws were added including a continuous lower bracket. Finally, the two upper hooks were added to avoid the last problems with strong vibrations. Now the remote is held firmly in all directions and can not be damaged even when riding on rough terrain (mountain bike).

Please also have a look at my other model “EASTON EA70 Mounting Plate” (https://www.printables.com/model/220432) which forms the seconds half of this project.

You are of course free to create your own specific bike mounting base plate or can mount the remote control using this mount to whatever base system you like.

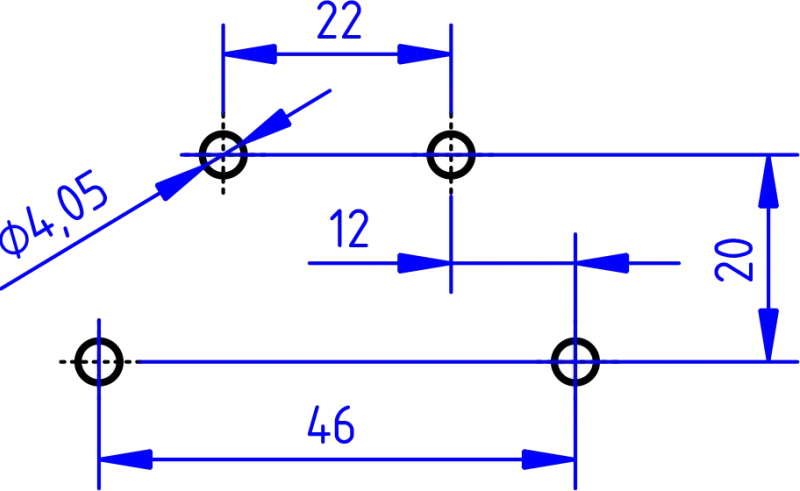

Here is the drawing for the screws on the mounting plate:



I recommend to print the mounting plate with PETG, 0.15 mm layer height, 40% infill and supports. PETG is recommended because of its high dynamic load stability when used on the bike (doesn't crack and break easily!).



Required printed parts:

  • 1 x “DJI RC Mounting Plate - Body.stl”
  • 4 x “M4 nut hand wheel.stl”

Required metal parts:

  • 2 x M4 x 10 mm cylinder head screws for the side screws of the DJI RC remote control
  • 2 x M2 x 5 mm cylinder head screws for the bottom screws of the DJI RC remote control
  • 4 x M4 x 25 mm hex head screws for mounting the plate itself, especially when used with my “EASTON EA70 Mounting Plate”
  • 4 x M4 nylon nuts for mounting the plate itself
