Meanwell RSP-320 or LRS-350 power supply Stacker

Safely stack the Meanwell Power supplies.
This was originally created to stack power supplies in a CG1500 box.

The addition of a terminal cover to help prevent fingers or objects accidentally touching live terminals (does not account for stupidity though and power should be switched off when working in the area!)

Also  included the F360 original design to modify yourself with all parameters.

Five Main Components -

• A simple stacking that can be used left or right.
• A Right Side (Inside) with strengthening guides
• A Left Side (Outside) which includes terminal cover
• Top CPU terminal cover.
• A Standoff to raise the PSU from the lower base


Customization

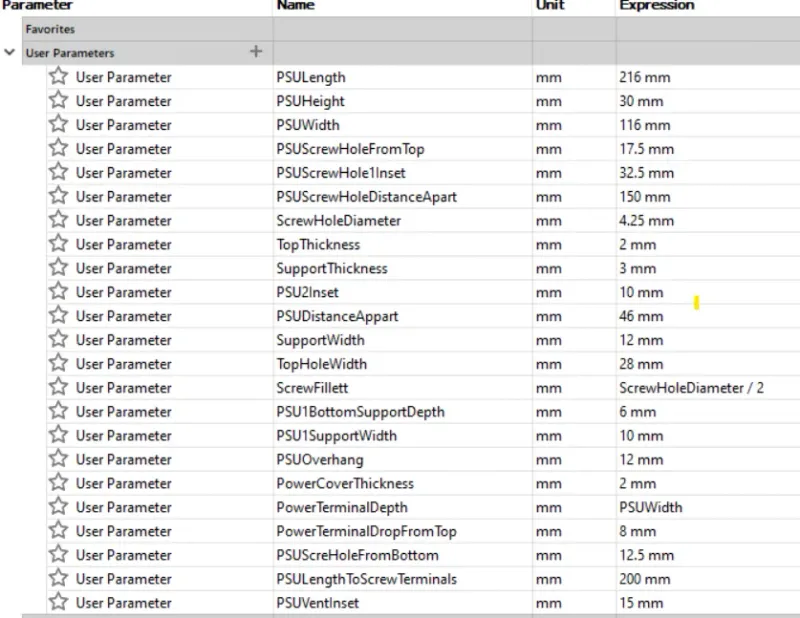

The following parameters can be modified with f360-

Printing -

If you don't require the terminal cover, print on the simple unit or the Left Side.
In the case of the left side, mirror a second on your print bed to work correctly.

I Used PETG
Layer Height .20
Infill 20%

Assembly

Decide on the components that suit your application and assemble if m4 8mm screws
