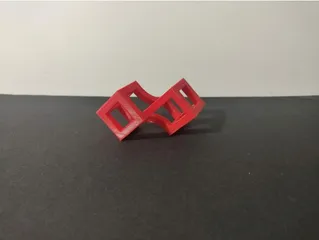

Pocket Dice Tower

A simple dice tower that is small enough to take anywhere.  It can fit in a pocket, purse, or game box.

The dice tower features three ramps (including the exit ramp) and two side ridges.

The optional cover enables the use of the dice tower as a dice box, with enough room for a full set of standard-size RPG dice* and some spares. The cover also doubles as a small dice tray.

FreeCAD and Step files also included.

Notes:

• Full Set of RPG dice: 1d4, 1d6, 1d8, 2d10, 1d12, 1d20
• Standard Size: 16mm d6 (measured along an edge). All dice < 25mm in longest dimension. See "MULTI-SIDED (POLY DICE)"

• This is designed for 1.2mm walls/floors.
• For the tower, print in the orientation you would use it. Do not attempt supports. This will require a small amount of bridging in order to print the internal ramps, but they don't need to be pretty to be functional.
• For the cover, print with the long flat side down, in the orientation it would be when in use as a dice tray. No special concerns.
