Ultra Guard Pro 100+ MTG Deck Box

This is my edition of a "Ultimate Guard 100+" deck box. I used Fusion 360 to build my own version from scratch. This…
120
951
11
5644
updated December 28, 2023

Makes

Comments

As requested, I have posted the step file for use on remixes.

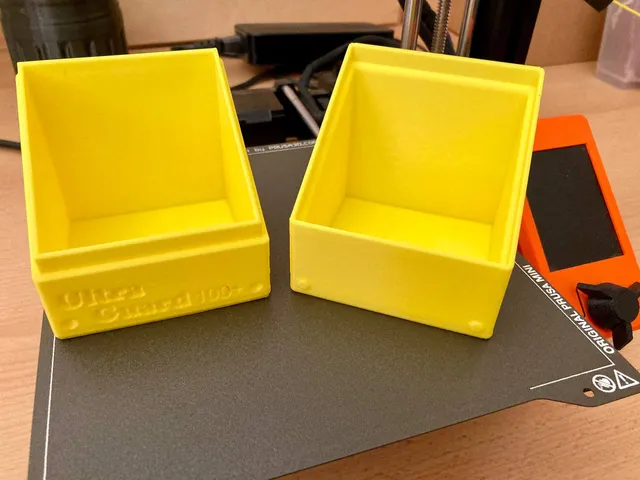

Nice and easy print! Printed with 0,3mm layer height in Filafarm TruePLA Sun Yellow.

Image preview

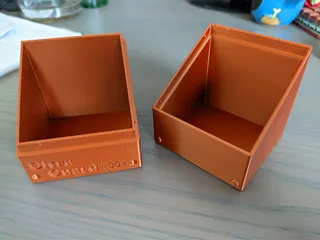

Thank you so much for this model. I made several and they do their job nicely. I recommend scaling the model pieces up to 106% to fit a 100 double sleeved cards in it nicely. Also, the pegs on the bottom piece can sometimes get printed out too small, which makes the box too loose, but someone already remixed this model with bigger pegs.

Image preview

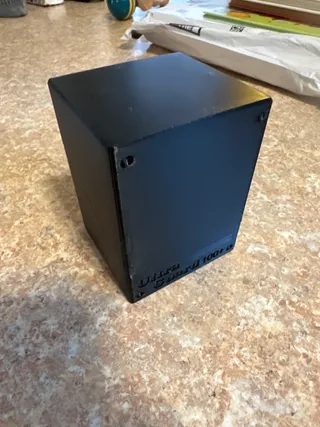

Printed one of these (black) to match my 80+ Boulder (pink) and it turned out really good!

Image preview

I am printing a new bottom with a tighter tolerance. If it works, I will add the updated STL to this model.

Should I use some horizontal expansion value in Cura to make it close smoothly?

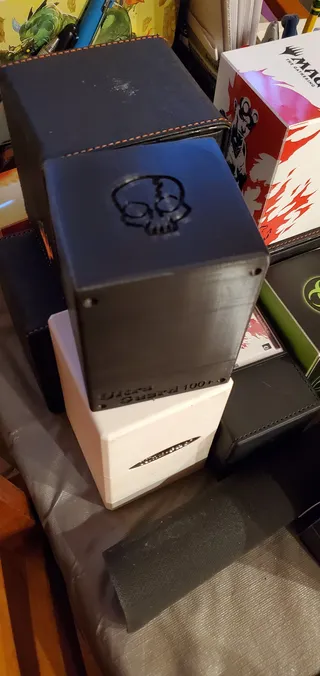

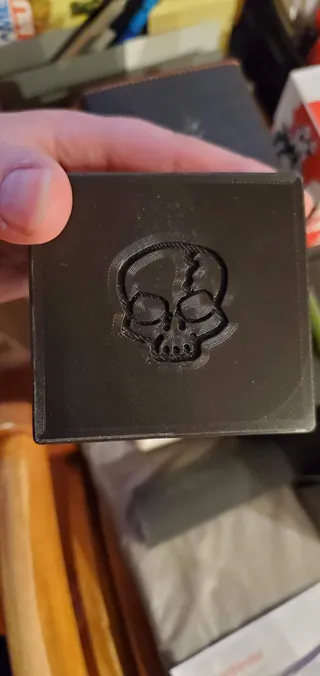

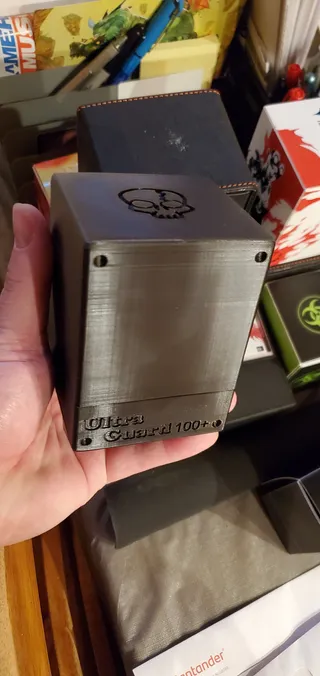

Loved it so I remixed it with a skull on top! Here is my remix: https://www.printables.com/model/504111-ultra-guard-pro-100-mtg-deck-box-with-skull

Image preview
Image preview
Image preview

Printed very nicely, the fit is a bit loose though.

Image preview
Image preview

Printed with 0.4 mm nozzel, fit is a bit too loose for my liking. Looks good otherwise. Filament PM PLA metallic green (edited)

Image preview
Image preview

Printed nicely and holds 108 single-sleeve cards with ease, but probably no more without forcing it. Printing in PETG using a 0.6mm nozzle makes for a very loose fit, so it's not possible to lift by grabbing the top and will probably break open if put in a bag. Still great for shelf storage.

Will re-print with PLA to try if it'll be a tighter, more secure, fit with same nozzle and later potentially step down to 0.4mm nozzle for a third print as well.

Image preview
Image preview
Image preview
