TS80P Full Set Case

This is a remix of sarf2k4 https://www.thingiverse.com/thing:3300590 big box with the divider modified to allow clearance for the larger diameter of the TS80P.

I included all the files for the big box.

My Meshmixer file is available at https://www.thingiverse.com/thing:4508133 if you have a need to tweak it. It appears printables does not allow Meshmixer files to be uploaded.

The following is quoted from the original items description:

I decided to make one because others doesn't suit my liking. I also wanted to house 'everything' in this single case without leaving out something else, while I don't have a soldering iron holder, I decided to incorporate into this as well.

• Store 2 tips at once
• Meant to house everything a ts80 need
• Stand/holder to put the ts80 safely during operation

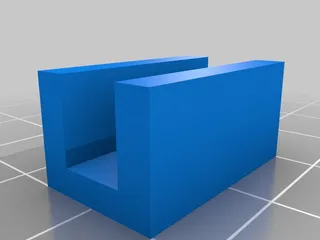

Included 2 stands file, if the stand slab is loose from the divider, print the tighter version, it is meant to be snug fit with the divider. Spool are meant to be glued together then wind solder lead. Use any 1.75mm filament to hold between top and bottom case together. I suggest do a test print of top case first and try the clearance. Sand a little if it is too tight, put something if it is too loose.

Print Settings

Printer:

Ender-3

Rafts:

No

Supports:

No

Resolution:

.2 mm

Infill:

20% I think

Filament:

Prusament PETG

Carmine Red

Notes:

I used PETG, PLA should be fine.
