FLSUN SR - Fan Duct (Narrow)

Description

The nozzle of the FLSUN SR is slightly longer than the focal point of the stock fan ducts, resulting in the airflow cooling the nozzle rather than the part / extruded filament.

Whilst this hasn't had a noticeable effect on the majority of prints, this may cause some issues with high angle overhangs or longer bridges, as well as small / thinner details on certain models.

This redesigned fan duct adjusts the focal point of the air flow by changing the angle and position relative to the nozzle. It maintains a similar area of coverage, but is slightly narrower than the stock ducts.

Print Settings:

• Brim - Not required

• Support - No

Looking for other options?

This duct is a part of a series with several options available to suit your needs

• FLSUN SR - Fan Duct (Narrow) https://www.thingiverse.com/thing:4896490

• FLSUN SR - Fan Duct (Ultra Narrow - Short) • RECOMMENDED • https://www.thingiverse.com/thing:4899374

• FLSUN SR - Fan Duct (Ultra Narrow - Long) https://www.thingiverse.com/thing:4899374

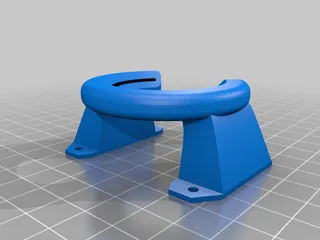

• FLSUN SR - Fan Duct (Radial) https://www.thingiverse.com/thing:4915578

• FLSUN SR - Fan Duct (Radial with Offset) https://www.thingiverse.com/thing:4916950

Print Settings

Printer:

FLSUN SR

Rafts:

No

Supports:

No

Resolution:

200

Infill:

15

Filament:

Black Post-Printing =============
