Simple Angled Leg Bracket for round legs

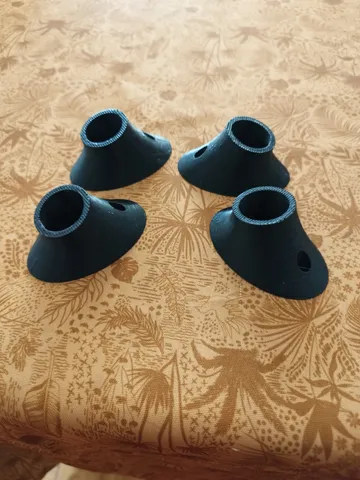

Simple modern looking furniture leg bracket for round rod stock at 15° Angle.
In the contest Print Tables
445
803
3
4528
updated
November 3, 2022
Makes
Comments
Hi would it be possible that you make ones with 40mm inner diameter?
@SlothWoodwork hey, i will take a look if i get home and will upload a version for 40mm. However if the screw hole size dosent matter to much, you could try to scale it up to about 133%, as this should result in a version with a roughly 40mm leg hole. This would be the fastest solution for you. 😁
@Kilberisch_263650 OMG i never tought about upscaling
View one more comment

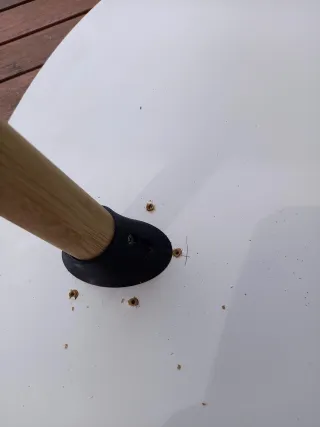

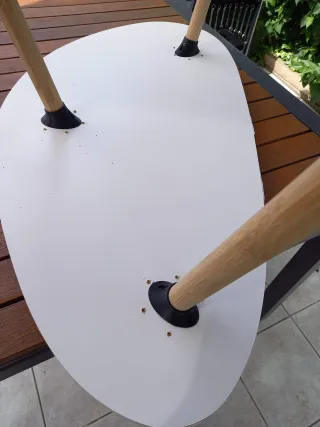

I was finally able to fix my wobbly (low-cost) table. Works perfectly for 30 mm legs. Positioning was easy and simple, due to the little arrows in the base of the bracket.
Thanks a bunch for desinging this!
This is exactly what I was looking for. Printing this now at 76,7% scale. I have 23mm stock (intented for use as a broom stick). Will post pictures later.
Thanks! (edited)
@slierd_269138 sounds cool, I like the idea to repurpose stuff from other uses, too. Also, I just added an folder for modified models, you can find an version there for 23mm stock. This way you dont need to scale the model that dramaticly. therefore the screw holes might be more usable that way. Can't wait to see the make! (edited)
@Kilberisch_263650 thank you for this. Ran this print last night and unfortunately I ran out of PLA and I'm having quality issues with ABS on my current printer. Will get back to this later. Thanks again!
Edit:
Oh by the way, I was really curious to know how you bonded the legs to the print. (edited)
