BMG Wind Ender 3 Stiff Mount

I got tired to refix again and again screws that fix BMG Wind ( https://aliexpi.com/twlM ) to Ender 3 carriage. They are totally inaccessible, thus always loose making nossle tip sway.

This model is also not very mounting friendly, but if you fixed it, you can be sure extruder is fixed tight

Used 2pcs M3x8 DIN 7991 (DIN965, flathead) to fix the mount to the carriage and 2pcs M3x6 ISO7380 to fix extruder to the carriage

All fixing holes are designed to be tight fit, so use bit of sanding if they are too tight.

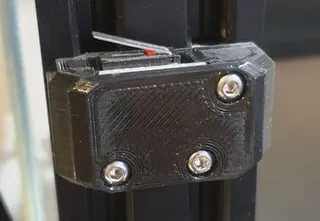

On the photo you also can see:

Model fan mount

3DTouch mount

UPD 2022/09/19 Added a right version (Prototype) as per request

Print Settings

Supports:

No

Notes:

Print with 0.5 line thickness
Models are optimized for 0.4mm nozzle and 0.2mm layer height

Category: 3D Printer Parts
