Nice design, though the post could potentially be wider to support heavier blades. Printed in PETG, 15% infill, 3 perimeters - worked well enough for my blade.
Lawn Mower Blade Balance 2.0
Upgraded the balance to include a base to balance on.
78
637
13
2189
updated
April 27, 2022
Makes
Comments

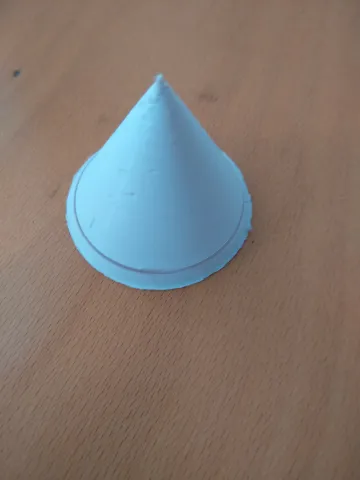

Printed in pla.
Attempted to be used to balance science olympiad 2024 wind power turbines.
Printed beautifully first try, seems to work great! Thanks for sharing! Will save me a lot of fiddling to get my mower blade balanced!
Built this. Works perfectly.

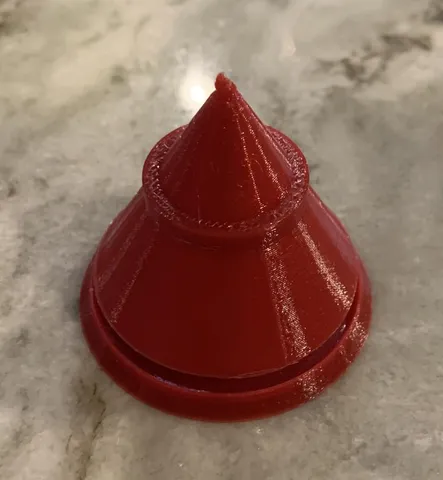

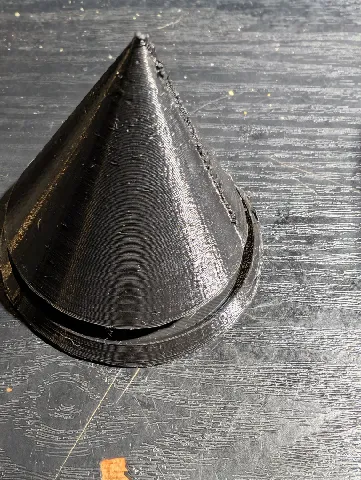

This is a remix to add a ledge at a 23mm diameter height to allow the blade to be level on the cone. Printed in PETG with a 0.6mm nozzle with .3mm layer height.

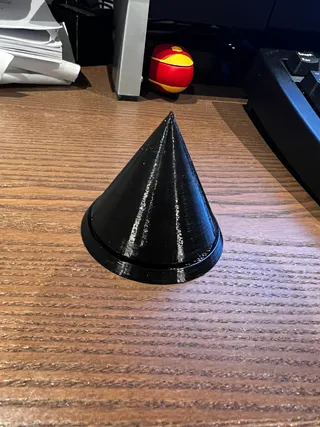

Very helpful but multiple layers/indentations would make this a 5 star design. It works well as it is but it is hard to properly position the blade on the support. Printed with black Overture PETG.

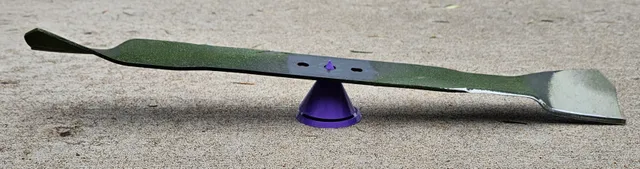

incredibely precise, i calculated the deflection you see here to be 0.042Nmm or 0.35g at 12mm from center
