Sapphire Pro Dual_Z Mod

I've designed dual Z mod for my TwoTrees Sapphire Pro. This mod helps a lot with bed shaking while fast printing and printing with high accelerations, it provides better stability for heatbed. You can also use dual z leveling with this addon.

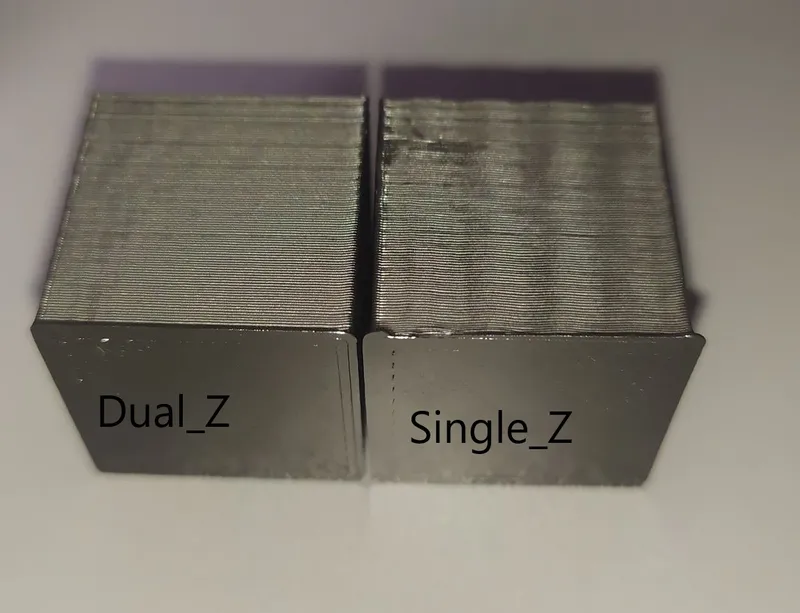

I printed some calibration cube's with 7k acceleration to compare printer with and without the mod.

Parts:

3D Print:

• 4x - Profile_Mount_Bracket
• 1x - Stepper_motor_mount
• 1x - Main_Z_Plate
• 1x - Bed_Plate_Drill_Guide (To drill 5mm holes in printer's bed plate)

To buy:

• x12 - 3x14mm Screw (to mount linear bearings and lead screw nut)
• x12 - 3mm Nut
• 2x - Linear Bearing LMK8UU
• 2x - 8mm Linear Shaft 300mm
• 4x - 8mm Linear Shaft Support SK08
• 1x  - Tr8x2 Lead Screw with Nut
• 2x - 375mm 2020 Aluminum Profile
• 1x - Usongshine Nema 17 17HS4401 Stepper Motor (with cable and stepstick)
• 4x - 3x6mm Screw (to mount stepper motor)
• 19x - 4mm V-Slot Nut
• 8x - 4x9mm Screw (to mount shaft supports)
• 11x - 4x6mm Screw (stepper mount and profile brackets)
•  1x - Stepper Motor Coupler
• 3x - 5x15 (or longer) Screw
• 3x - 5mm Nut
• 6x - 5mm washer

You can also use this mod only with lead screw, it will still work pretty well.

Print Settings:

All parts must have enough stiffness and strenght so I printed them with ABS.

• Infill - 40% Cubic
• Perimeters - 3
• Top & Bottom layer - 4
• I recommend using brim while printing with ABS
• No supports
