Water Pump Power Converter Case

Water Pump Power Converter Case

A Simple 3D printable case for the Power Converter PCB developed for the different variations of the water pump design. The PCB Schematics and layouts can be found on GitHub repository linked below:

Equipment List

• 1 x Water Pump Power Convertor PCB
• 2 x M4x20mm Metal Bolt
• 2 x M4 Metal Nut
• 4 M2.5x6mm Nylon Screw
• 4 M2.5 Nylon Nut

Useful Links

• GitHub PWM Controller Repository
• 30mm Water Pump
• 50mm Water Pump V1
• 50mm Water Pump V2

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

0.4mm

Infill:

10%

Filament:

PrimaValue PLA N/A

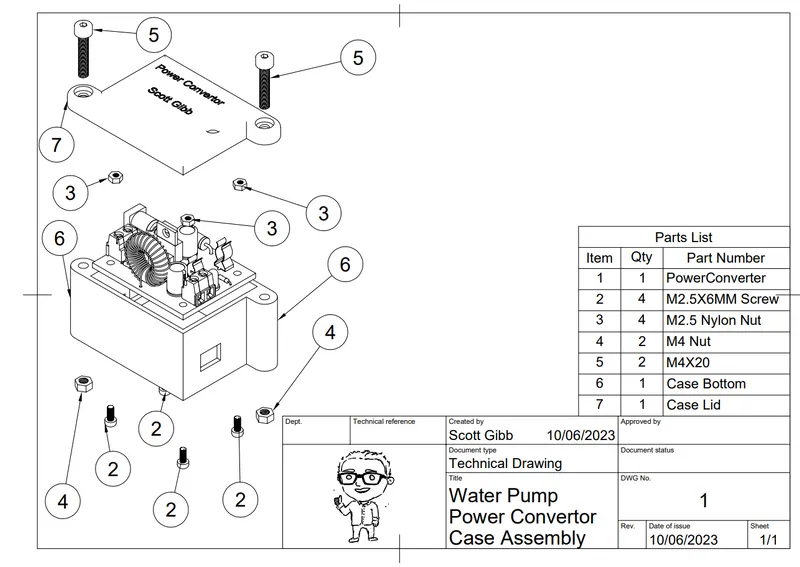

Technical Drawing

Exploded View
