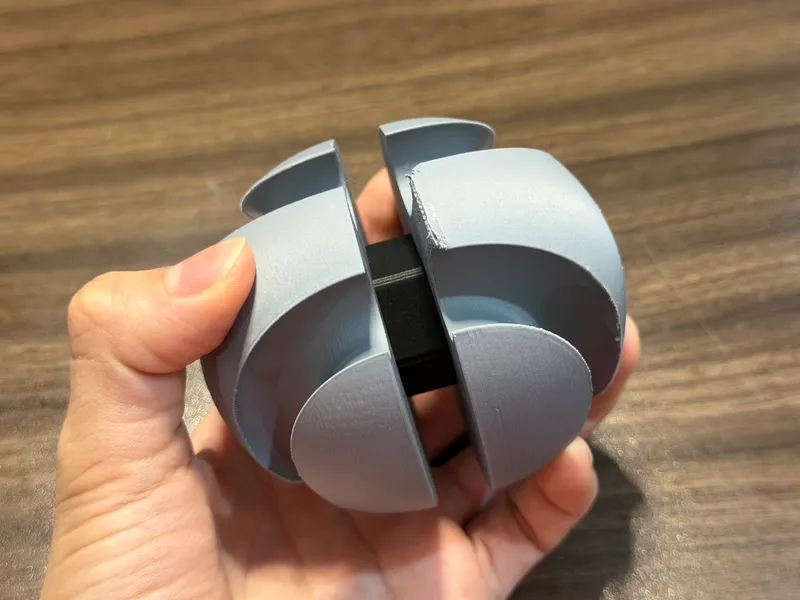

The Orbital Sphere is a mechanical desktop sculpture designed around an organic, interlocking infinity loop path. This model splits a continuous 3D track across two interlocking hemispheres, held firmly in place by a hidden, internal hexagon alignment block.

Note: Make sure the marble size is accurate, not too tight or loose. I recommend putting more than one marble in there

Features & Design Spec

• Design: Clean, modern aesthetic that fits on a desk.

• Internal Alignment: Features a hexagon alignment core to lock the two halves together with friction. Glue is recommended but optional

• Optimized for 16mm Marbles: Designed around 16mm marbles. Check out these 3d printable marbles if you don’t have any

Print Settings

Because this model features organic, curving 3D paths around a sphere, it requires supports to print properly.

• Supports: Required. Tree Supports are highly recommended, as they navigate the curved outer geometry easily and pop out of the track channels cleanly.

• Orientation: Print both hemispheres flat-side down on the build plate. (as oriented)

• Material: Any would work. Beware of tolerances

• Post-Processing: Ensure the lower track channels are thoroughly cleaned of any leftover support to give the marbles the best possible pathing. Sanding it down can help if the track is too tight.

• Assembly: Insert the marbles before you assemble the two halves. Insert connector into one half and press in before aligning and inserting the other half onto the connector. Or use common sense.
