Overlapping Segments Rotary Digital Clock

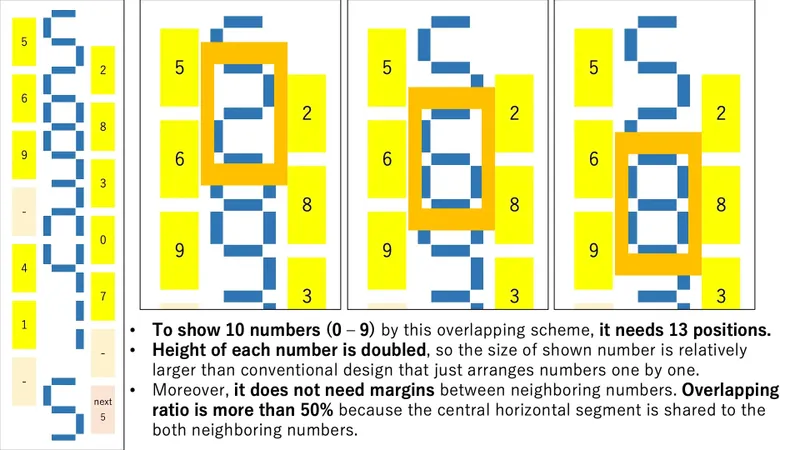

Darrell Aldrich's smart idea of overlapping segments digital clock is used to make the digits relatively larger than former Rotary Digital Clock.

Instead of painting segments, printed part is just sticked to the rotor.

Darrell Aldrich presented very smart idea (video shown above) to reduce the number of the parts for digital clocks with circulating digits.

I implemented this idea to 3D printed rotary clock.

Comparison to the former projects

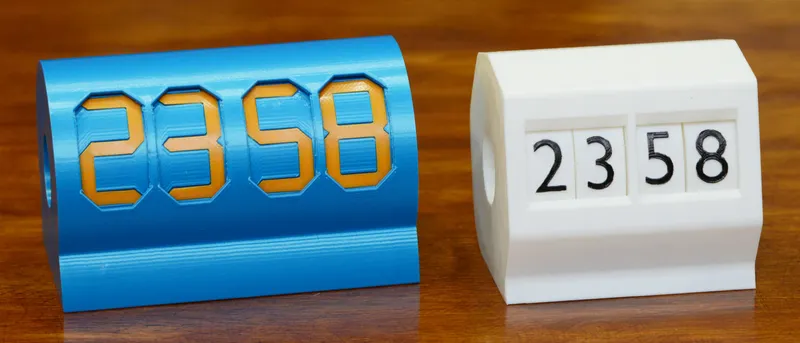

Comparison to the conventional design of rotary clock

The size of each digit is almost doubled. Mechanically they are identical, except the number of click stops (13 vs 10).

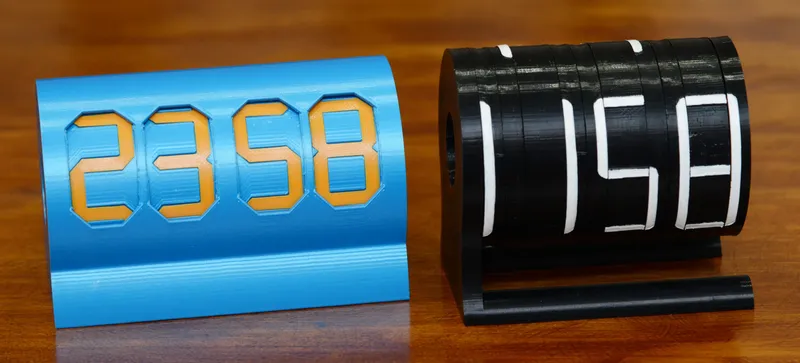

Comparison to the former rotary 7 segment clock which has 3 rotors for each digit.

The former design has still larger digits. Cover is not necessary also. However, it takes a long time to show the time because it has many rotors (10 or 12 rotors). Compared to the former design, the new clock is better for practical use.

How to make

Necessary parts

• ESP32 based micro computer
• 28BYJ-48 geared stepper motor and driver circuit comes with
• Several 2x8mm tapping screws
• Wire, soldering iron, lubricants such as silicone oil
• Double sided adhesive tapes or superglue

Print

• Print all parts with supplied posture.
• body.stl needs support for print.

Assembly

• Remove blobs and debris well. Especially, the both sides of rotors should be smooth.

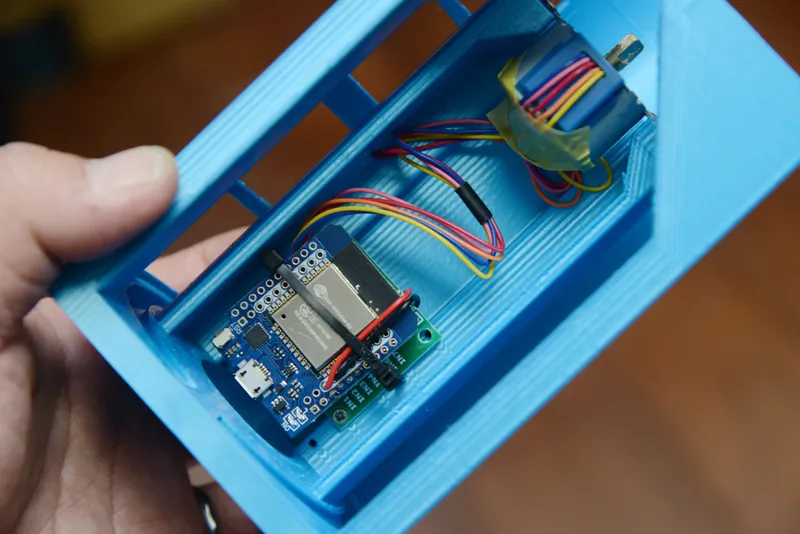

• Attach circuits and the motor into the axis with 2x8mm tapping screws.
• Stack all wheels. Place spacers among wheels.

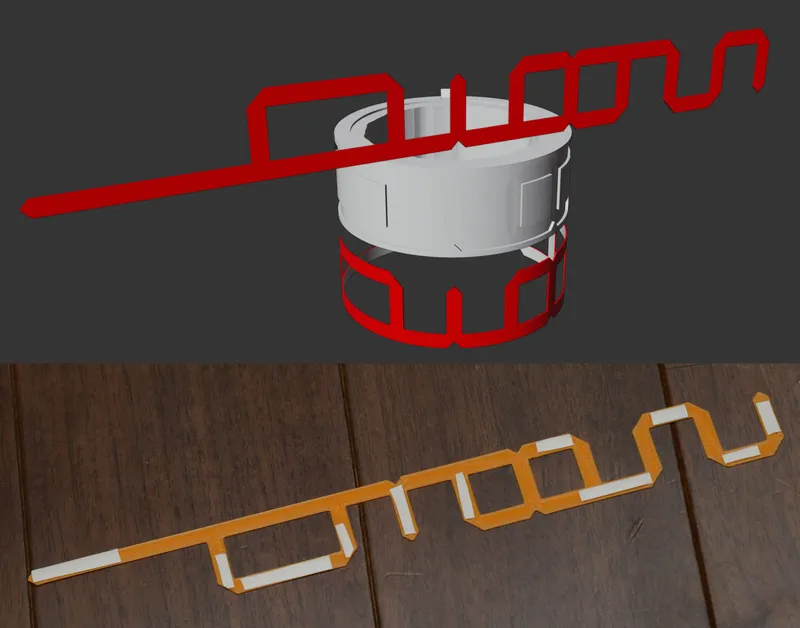

Stick segments

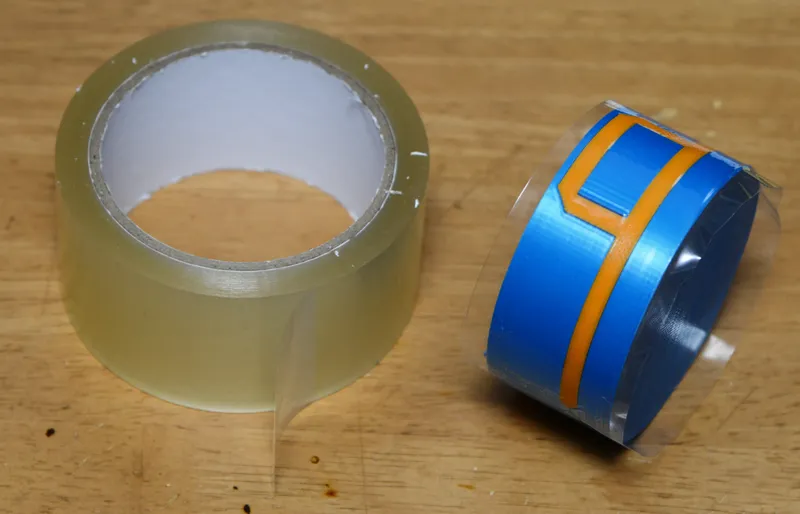

If the segment part peels off, use transparent adhesive tape (OPP tape).

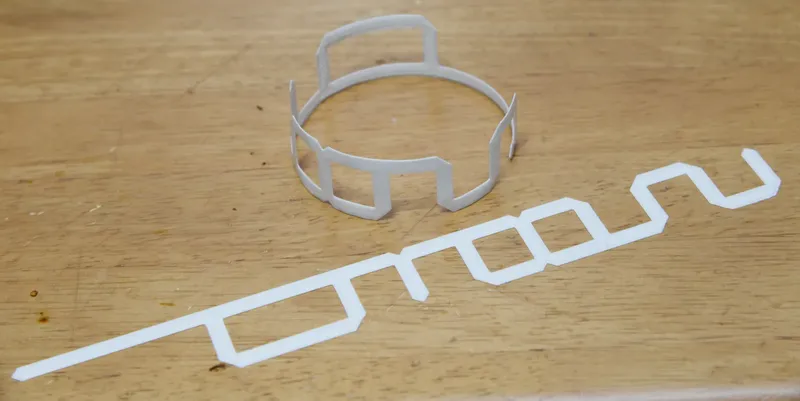

I found another way to avoid peeling off. Stick the segment part to some cylindrical object (radius is around 7cm) using adhesive tape. Then warm up it using hair drier or heating gun. After cooling down, it is nicely curled and easy to stick without peeling off.

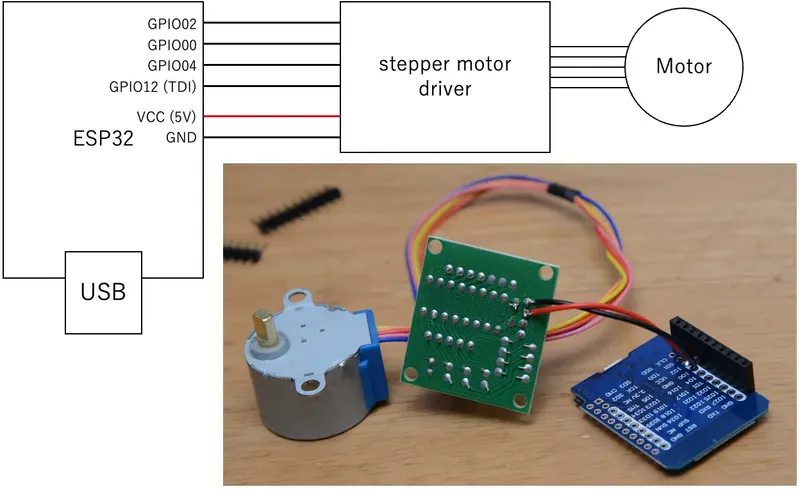

Circuit

How to use

You can set SSID and password of your WiFi using smartphone app.

This function is named SmartConfig. The apps for setting are at

Android: https://play.google.com/store/apps/details?id=com.khoazero123.iot_esptouch_demo&hl=ja≷=US

iOS: https://apps.apple.com/jp/app/espressif-esptouch/id1071176700

The status of WiFi connection is indicated by the motion of the rotor.

• Large reciprocal motion : connecting to WiFi of past setting stored in non-volatile memory.
• Small reciprocal motion : SmartConfig mode. If 30 seconds of WiFi connection trial fails, it automatically moves to the the smartConfig mode (waiting for the setting from smartphone app.)

Please not that your smartphone should be connected to 2.4GHz WiFi.

Acknowledgement:

Thanks to airtcp. His original source code can be seen at the page of previous version, https://www.thingiverse.com/thing:4931539

The code for this clock is almost same to the former project (shown above) and WiFi setting process is exactly same.

FAQ

Q1. A rotor is unintentionally rotated by the neighboring rotor.

A1. The position of the stepper motor is also very important. If the motor is not centered precisely, the second wheel is unintentionally rotated. It is also useful to increase the thickness of spacer if you are making the numeric type clock.

Q2. Can I use Wemos D1 mini or ESP8266 based board?

A2. I have not tried them yet because Wemos D1 mini and most ESP8266 based board can not be used in Japan legally.

Q3. I would like to set WiFi settings in the source code directly.

A3. Please take a look at the top of the source code. Turn off the flag named WIFI_SMARTCONFIG (at line 10), from true to false. In this case, you should write your SSID and password.

Q4. How to change the source code between 12H and 24H versions?

A4. Please take a look at the top of the source code "7seg.ino". Turn the flag named HOUR12.

Q5. It seems that the motor is rotating to the opposite direction.

A5. Please take a look at the source code Change the content of array named port[4] .

Q6. Numbers or segments are not well aligned.

A6. Some parameters to tune the alignment are prepared in the source code. One is the KILL_BACKLASH parameter which compensate the backlash of internal gear of the stepper motor. The other parameter is in the function setup(). When the motor pushes the rotor to the endstop, it will be distorted. The value at the comment "release pushing force to align all digits better" could be tuned to compensate it.

Q7. Sticked segments peal off.

A7. Some options to solve this problem.

• Use superglue
• Wrap the rotor with transparent adhesive tape or shrink wraps
• Stick the segment part to some cylindrical object (radius is around 7cm) using adhesive tape. Then warm up it using hair drier or heating gun. After cooling down, it is nicely curled and easy to stick without peeling off.

Related Projects

Minimal Mechanical Digital Clock with Network Time Acquisition : 1st version of numeric type clock

Rotary 7-segment clock : 1st version of 7-segment type clock. Detailed description on how to show 7-segment number with only 3 rotors are there

Rotary Digital Clock : 2nd version of two projects above. It has mechanical endstop to initialize, so photosensor is not necessary.
