Name: AirManagerV2 recirculating air filter for 3d printing enclosure
Brand: Printables
SKU: 16996
Rating: 4.7894736842 (110 reviews)

19 reviews

TechNerd

@danielschweinert

UPDATE: I've uploaded the Fusion360 and STEP files for easier remixing in case you can't find the Titan blower.

19h 31m

6× print file

0.20 mm

0.40 mm

PET

250.00 g

Prusa MK3/S/S+

In the contest Practical models

1,249

2373

41 k

updated July 26, 2024

Danke

Great addition to enclosure.

DigitalArk

@DigitalArk

Technically, I printed a different blower housing and filter housing:

https://www.printables.com/model/83215

Then I printed a different funnel:

https://www.printables.com/model/572223

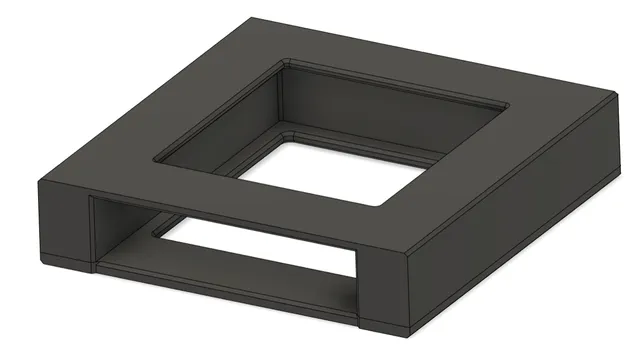

Then I made my own filter media tray:

https://www.printables.com/model/819711
And used a different lid:

https://www.printables.com/model/227335

But NONE of this would be possible without your brilliant original design. Thank you for your incredible contribution to this community!

TechNerd

@danielschweinert

@DigitalArk Thank you very much 🙏

Chillkroetchen

@Chillkroetch_1843868

Easy printing and assembly, killed my printer in the process due to my own stupidity.
Screw length in BOM should be at least 5mm longer
4/5

Alpenmeister

@Alpenmeister

Amazing model. Used modified parts and roomba filters. Unfortunately the recommended fan is very loud.

Les vis M4 de 35 mm de longueur sont trop courte pour fixer le ventilateur Titan.
Jai donc opté de le fixer avec du scotch double face de 1.5mm d'épaisseur.

ImpacterDIY

@ImpacterDIY_1124078

Thanks 😁

bradbee

@bradbee_329977

Does anybody have a wiring diagram?

TechNerd

@danielschweinert

@bradbee_329977 you don't need a wiring diagram. These voltage regulators are pretty easy to connect. Input Voltage +/- and Output Voltage +/- to FAN Blower thats all to it.
