Standing LED lamp
Description
PDFIt is very easy and pretty modern looking LED lamp. You need to print only the base. You need to put something heavy inside the base (for example stones, concrete or pieces of metal).
There are two versions of the cover base. The first is ready for motion switch and the second one is without any holes for switch (you can have the switch straight in power adapter or you can put the switch to the aluminium profile- infra red switch or touch switch).
You will need:
- aluminium profile for the LED strip which needs to be 2m long (https://eshop.ledsolution.cz/nastenny-profil-pro-led-pasky-n3-cerny)
- LED strip which is 2m long
- power adapter
- power adapter connector
- motion switch https://www.aliexpress.com/item/1005003884738911.html?spm=a2g0o.productlist.0.0.2d7e1fc2JtPkgt&algo_pvid=84d9ecbf-7b44-4793-a87b-a89f81f7a363&algo_exp_id=84d9ecbf-7b44-4793-a87b-a89f81f7a363-12&pdp_ext_f=%7B%22sku_id%22%3A%2212000027386518323%22%7D&pdp_pi=-1%3B2.35%3B-1%3B-1%40salePrice%3BUSD%3Bsearch-mainSearch
- piece of wire
- 8x M4x10 or M4x12 screws and 4 nuts
| Drill a hole to the aluminium profile 23mm far from the edge. | |

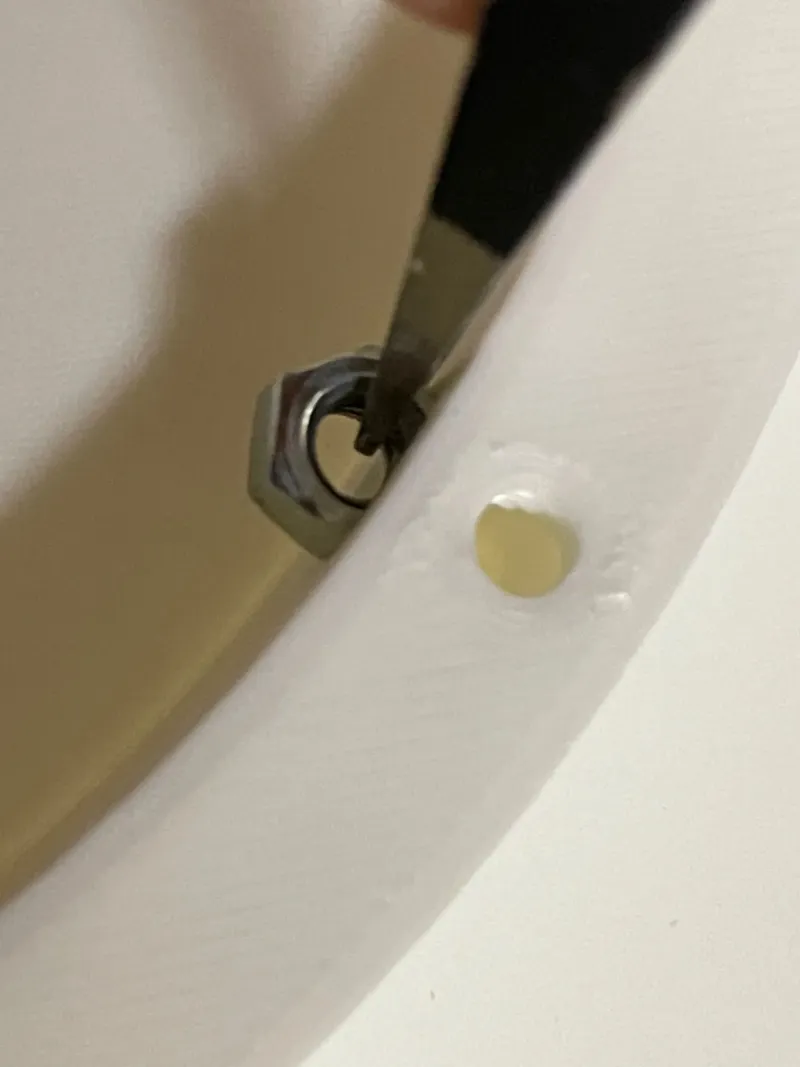

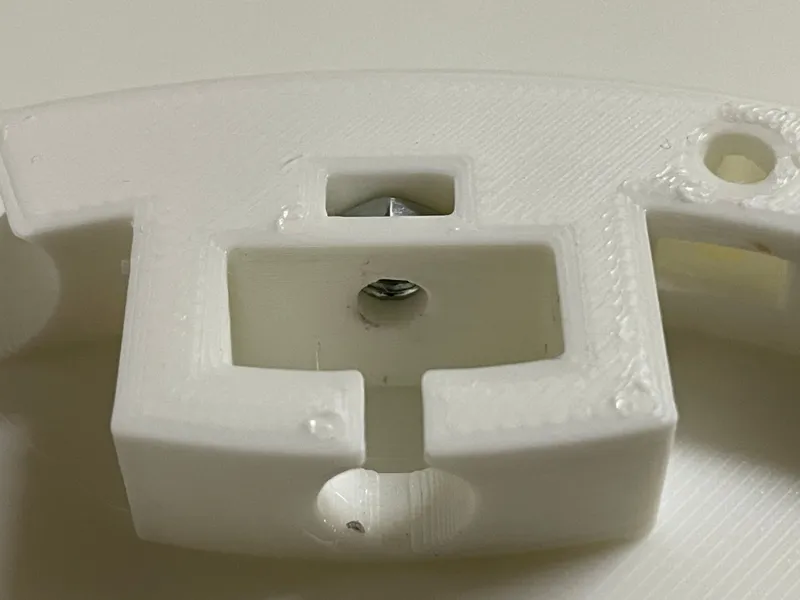

| Put nuts to the holes which are prepared in the printed cover base. I used hot melt gun for fixing the nuts so they won`t come away. |   |

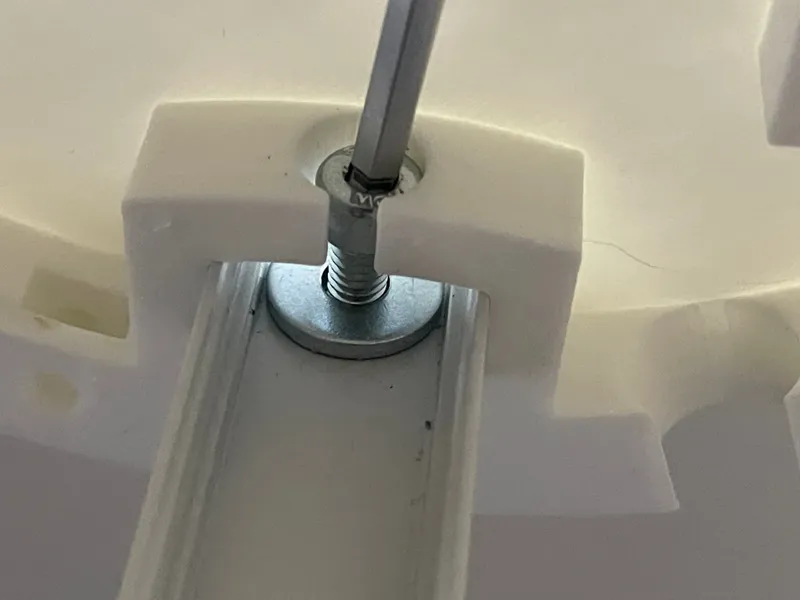

 | Insert the aluminium profile to the printed cover base and screw it together. |
Insert the conector for power adapter, motion switch, LED strip and connect it together. It is an electric lamp, don`t forget to isolate it. |  |

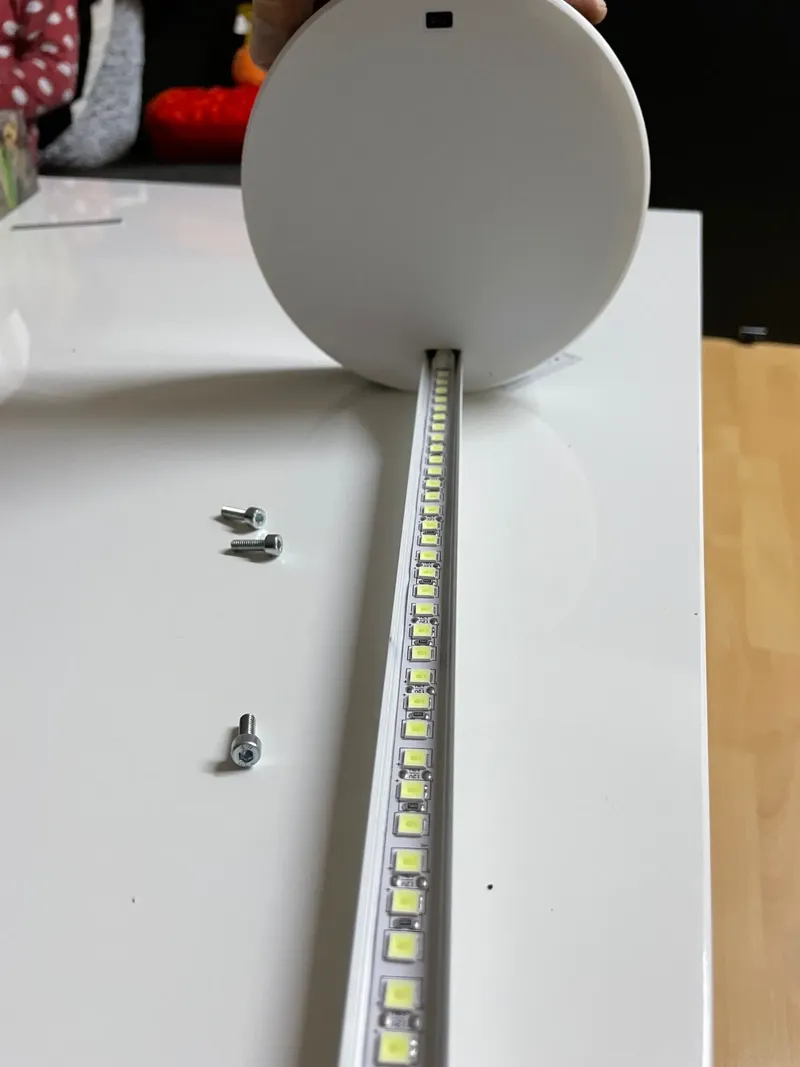

 | If you don`t want the lamp straight up you need to curve the aluminium profile first. Then you can glue the LED strip. It is not possible to glue the LED strip and then curve the aluminium profile. It would damage the LED strip. |

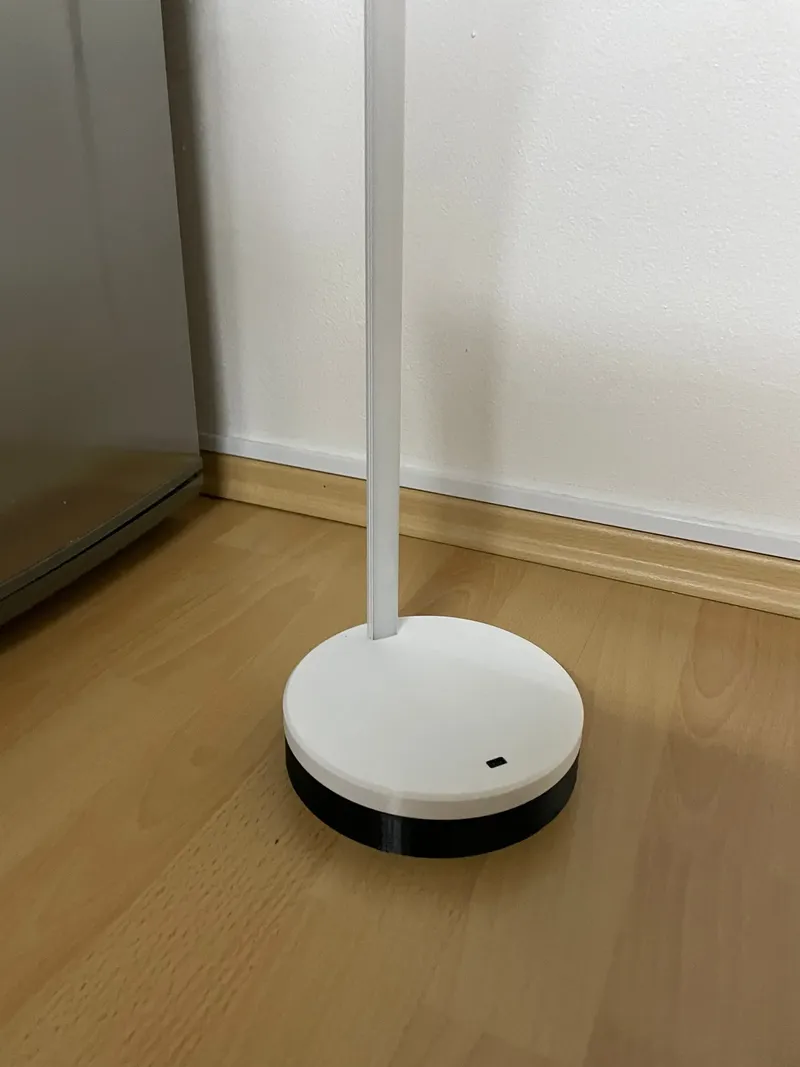

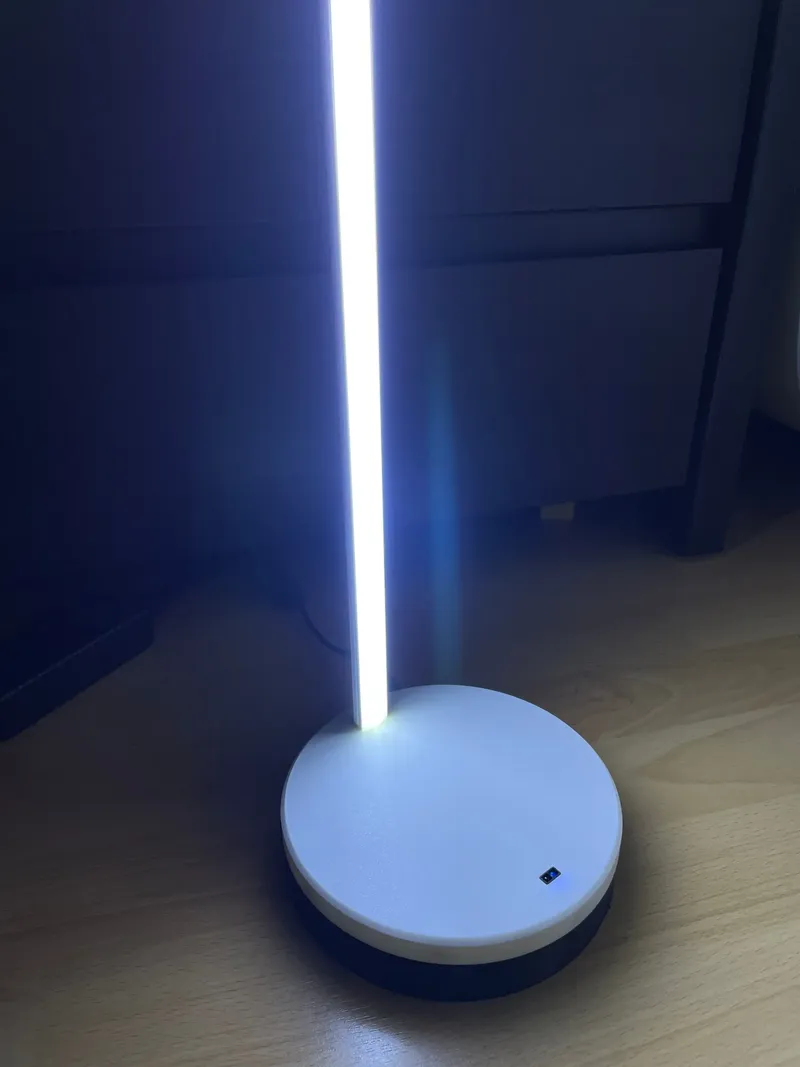

| You are done. You can turn it on. It is also cool to have dimmer remote on the lamp, use colorful LED strip or connect it with voice control. |   |
