Calibration Bro ( CaliFlower Calilantern Calibration cross alternative) - Calibration shape + Calculator - Klipper & Marlin

Use Calibration Bro to calibrate your printers X & Y Esteps, and Skew. 1) Print Calibration Bro & wait for it to cool…
432
3850
38
14 k
updated March 22, 2024

Description

PDF

Use Calibration Bro to calibrate your printers X & Y E-steps, and Skew. Its a free alternative to the Califlower and/or Calilantern.

Print Calibration Bro. Wait for it to cool down! Don't compromise the shape by removing it while hot & bendy. You should tune your flow and pressure/linear advance before using calibration bro.

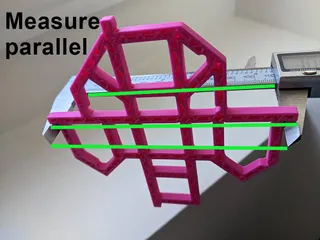

Measure Calibration Bro, using the reference measurements in the images.

Follow the calculator link below and enter the measurements into the calculator

Take the results and use them to update your X & Y E-steps and to create a skew correction.

Calculator: A) You can use the attached excel workbook file that has images embedded, or B) clone a copy of the calculator from google docs. The docs version strips the embedded images.

https://docs.google.com/spreadsheets/d/e/2PACX-1vThsVkzw7_n7qthCFOmfJjI5CmkoGVeD1cE45_tOZ1VgvNR_wJLD5nc67XXAV3KsfGcDHsZuWXqzEXM/pub?output=xlsx

See the images for reference measurements as well as measuring tips !

Watch this video if you want more info, it works the same!

Please don't forget to hit the like button if you found this useful ;)

I would like to thank lukeskymuh (Lukas Sky) for their development and maintenance of the Calibration cross in/since 2017.




Leave a comment if you found this helpful!

Print Settings

Printer:

Any

Rafts:

No

Supports:

No

Infill:

Min 10%

Filament:any PLA


Notes:



Print in PLA for minimal material shrinkage. No need to print with top skin. Just a few layers of bottom skin and 3 walls or more should do. Use 3 walls minimum. It shouldn't be flimsy.





Category: 3D Printer Accessories

Tags



Model origin

The author marked this model as their own original creation. Imported from Thingiverse.
