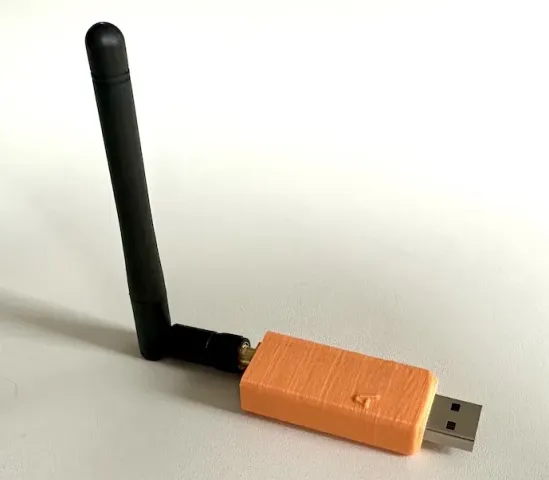

Slim Case for CC2531 with external Antenna
This is an easy printable one-piece case for the CC2531 Zigbee Sniffer Board with external antenna. Print the case…
18
111
8
548
updated
April 7, 2022
Makes
Comments
Who cares about LEDs :-). Nice and easy print... I had to open the USB port hole a little bit (elephant foot?) ... Anyway, nice one.

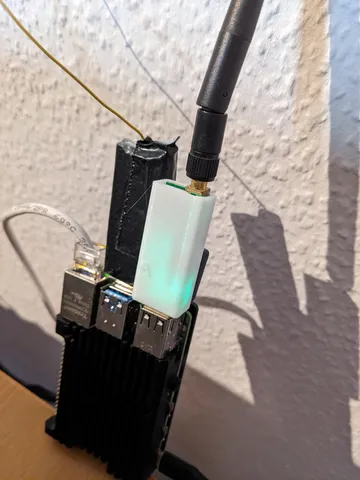

Nice fit with the larger Pin version. The Raspberry has those USB Ports very close together, maybe you can't use the next port anymore, but that not the fault of this case.
But now it dimms the darn LED of the Board.

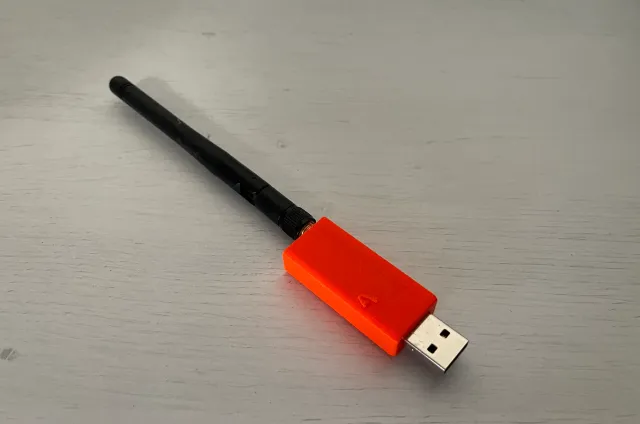

Perfect fit. Came out very nice even at 0.3mm draft mode in prusament orange pet-g!
snug and need to tweek profile using 0.6mm nozzle but worked and prints fast at 0.3mm :)
I printed one, and it turned out fine.

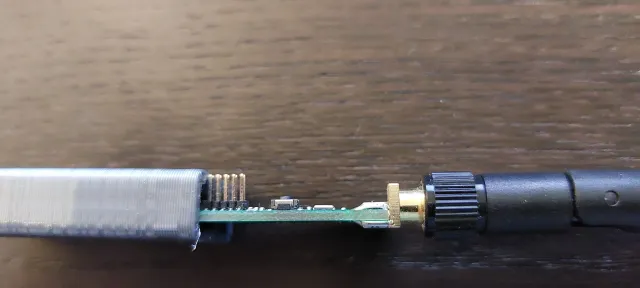

Unfortunately, my headers are too high and I can't get the module in, without cutting them.
When I try the USB part, it fits, so I guess the dimensions are in order, it's just that my headers are too high.
@Robindk Thank you for the feedback!
My modules fitted perfectly without cutting the headers. There might be different versions of the module. I could try to increase the space above the headers. Or maybe I can create a version with bigger tolerances. Which solution do you prefer?
Hi AL_3D, it would be great if you could increase the height above the headers a bit! the space left for the soldering is perfect, and the USB connector also fits, so I think the tolerances are already good. Thanks in advance! (edited)
