Corner Bumper (Parametric)

Parametric design made in Fusion you can customize to fit any furniture you want and protect the corners from hurting yourself or your toddlers.

How to modify it

1. Open Fusion and the provided file

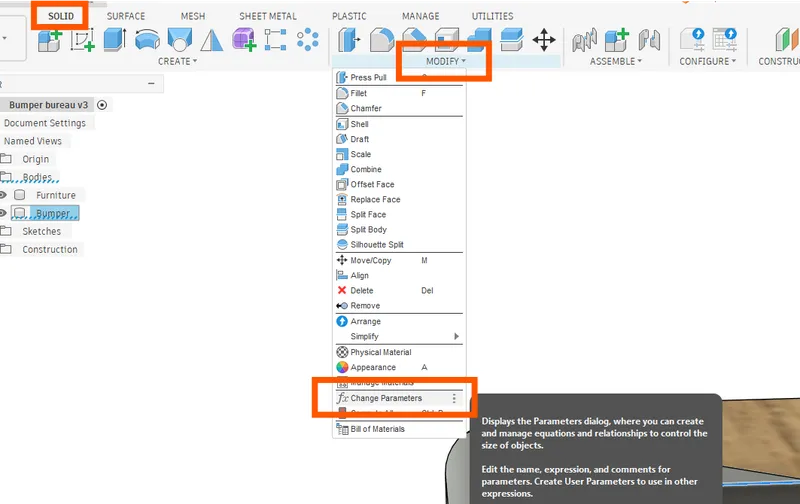

2. Click on "Modify" from "Solid" tab, and then click on "Change Parameters"

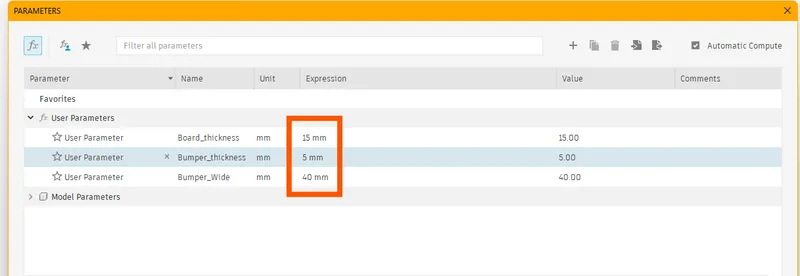

3. Change the parameters you want to adapt the shape to your furniture.

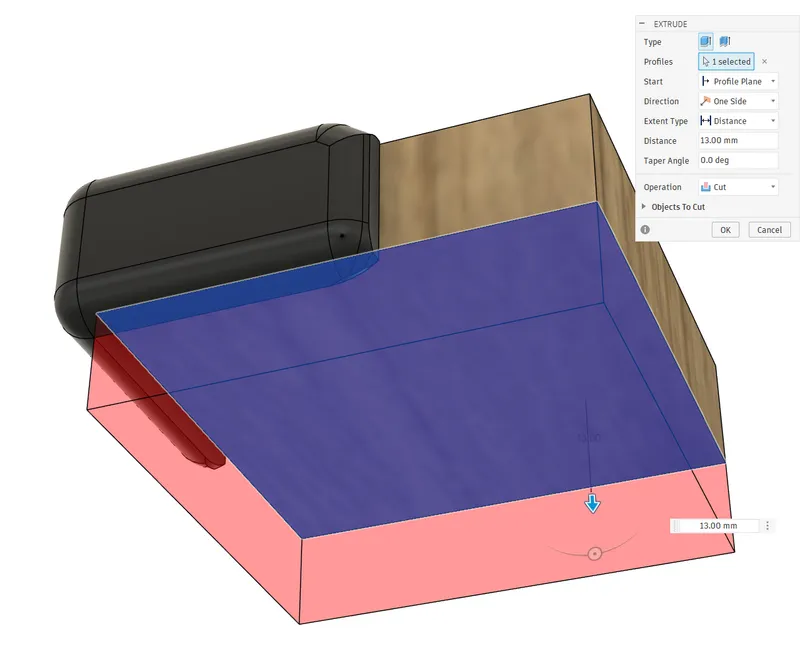

4. In case of plain furniture, you can just extrude the bottom face of the piece of wood to cut the part:

Printing tips

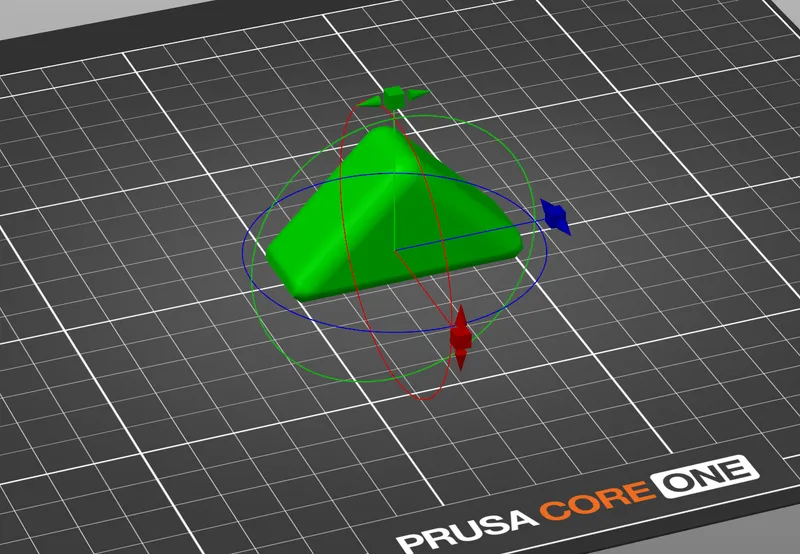

Orientate the part so it stands up:

To change its rigidity, print it using different TPU or even hard plastics and change walls and infill.

Mine is 95A TPU with 3 walls and 10% gyroïd infill

I used double sided tape to secure it to the furniture.
