VMAX New VX2 E-Scooter Chiclew 3L bag bracket
Beschreibung
PDFA bracket that provides a proper fixture of the Chiclew Scooter bag to a VMAX New VX2 (Hub/Gear).
Tighten the screws only until the bracket is properly seated. A gap between the clamp and the slider parts is intentional and part of the design. Do not attempt to tighten the screws until the parts are flush, as this may cause damage.
Material:
Part | Amount | Info |
|---|---|---|
Chiclew 3L bag | 1 | |
M4 self locking nut | 6 | |
M4x12 hexagon socket head screw | 6 | |
VMAXChiclewClamp_v1.0 | 3 | A filament that can bear mechanical load such as PETG is recommendet. I printed the parts with 3 walls, 0.4mm nozzle width, 4 top and 4 bottom layers and 15% adaptiv cubic infill. |
VMAXChiclewSlider_v1.0 | 1 |
The part "VMAXChiclewClamp" has a small print-help-cutout in the holes which is meant to be orientated to the top on the printplate.

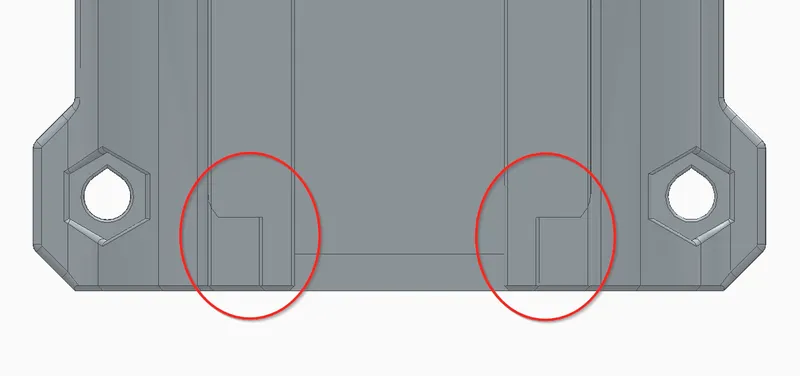

For the clamping mechanism of the Chiclew bag it is very important to place the part "VMAXChiclewSlider" with the slider cutout facing in the slider downward on the printplate, as shown below. The Chiclew bag relies on a sharp edge in which it's clip can snap into.
If you have any comments, suggestions or similar, you are welcome to contact me.
