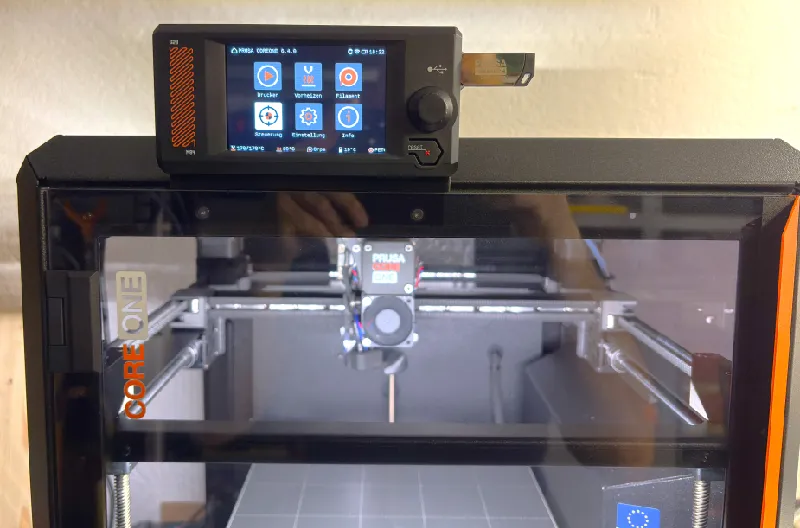

Prusa Core One - Comfortable height display

PLEASE READ FIRST

Experimental display adapter: This adapter for the Prusa Core One / Core One + is at the beginning purely experimental at this stage. The fit, handling, and assembly of this adapter are still being tested.

Please note: The ribbon cables between Buddy and the display are too short for plug-and-play operation. The ribbon cable needs to be 120 cm long. It must be extended, either by soldering or by purchasing two new connectors.

______________________________________________________________________________________________________

Index of Changes

31.01.2026

• Adapter version V1.00 uploaded

• Project details uploaded

______________________________________________________________________________________________________

Project background

Even before purchasing the conversion kit MK4S for Core One, I reserved a spot for the new printer where it would eventually be placed.

Unfortunately, I am taller than average and prefer to work standing up and at eye level.

In order to avoid further damage to my spine at my advanced age, I decided to find a way to raise the display to eye level.

______________________________________________________________________________________________________

Mount the display housing

To attach the adapter to the original display housing, I initially opted for a simple solution. Two holes in the adapter indicate the position that needs to be transferred to the display housing.

I drilled two 2.5 mm holes into the Prusa display housing at these markings. Two M3 x 10 countersunk screws hold everything in place on the adapter.

The screws cut themselves into the 2.5 mm holes as they are turned.

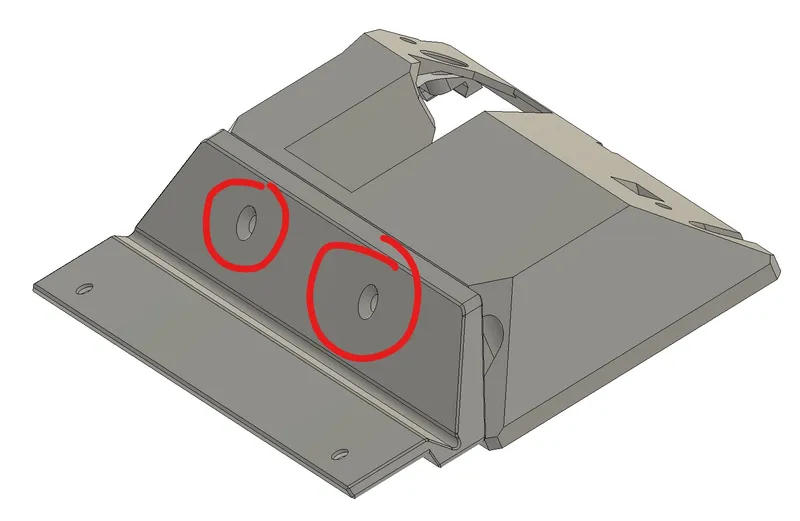

The two countersunk screws M3 x 10 mm are mounted here (red circles).

______________________________________________________________________________________________________

Mounting the adapter on the profile

The prepared display with the adapter plate is now attached to the upper profile of the Prusa Core One housing using two M3 x 10 mm countersunk screws, one washer, and two self-locking nuts.

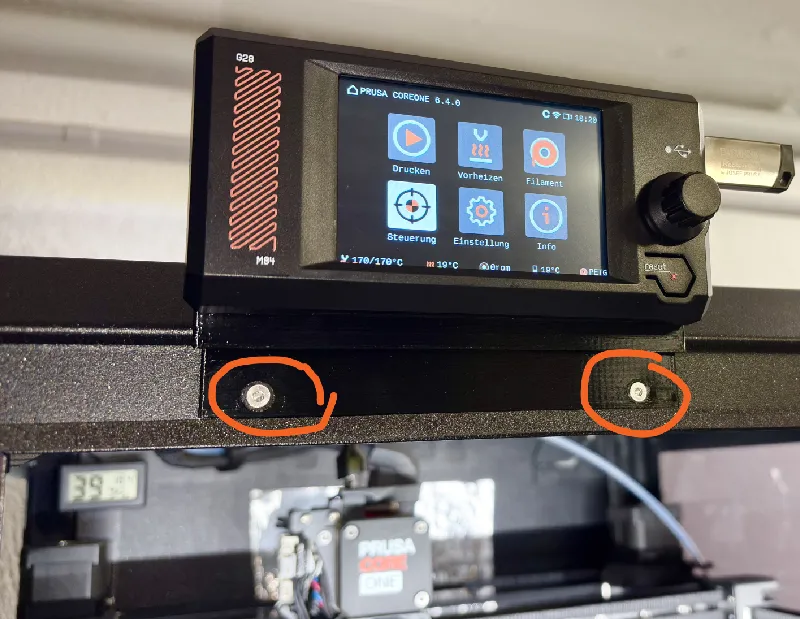

The two countersunk screws M3 x 10 mm are mounted here (red circles).

______________________________________________________________________________________________________

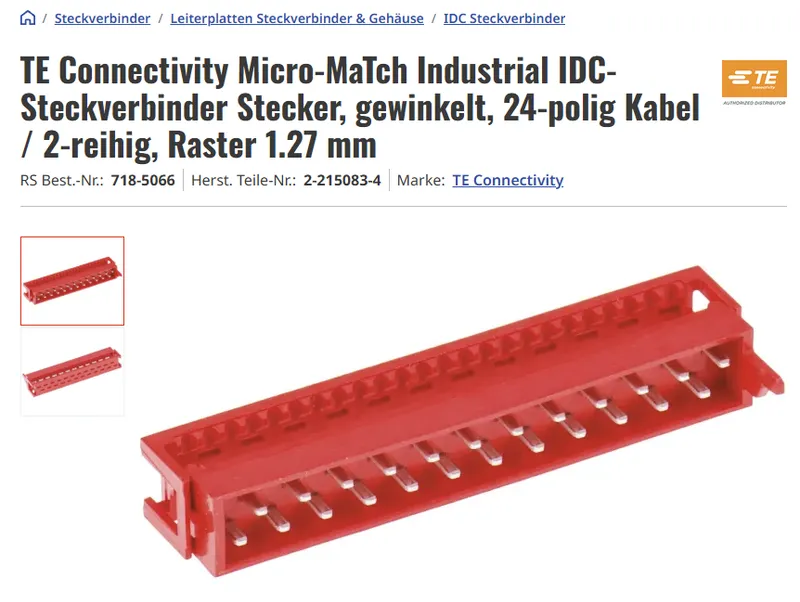

Where to buy display connectors

______________________________________________________________________________________________________

What next?

I will design a clean cable routing from the display housing to the buddy and maybe also implement a display adjustment.

If you have any ideas, feel free to write to us or upload a remix right away.
