Configurable Mounting Beams for Modular Mounting System

These are simple but effective beams for mounting any Modular Mounting System, GoPro, or other compatible components.

This pack includes a number of common sizes, some with angled or straight connectors.
I've also included an axis changer, an M-M connector, and an F-F connector.

or you can use the OnShape document to create and configure any size you need. The configuration panel includes options for length as well as angled or straight tabs.

Configuration Options

Length - Sets the functional length of the beam (the length between tab centers)

• M-Tab Direction

  • Perpendicular - Tabs will be perpendicular to the beam

  • Parallel - Tabs will be parallel with the beam

• F-Tab Direction

  • Perpendicular - Tabs will be perpendicular to the beam

  • Parallel - Tabs will be parallel with the beam

• Tab Rotation - Rotates the two ends relative to each other. This allows you to create axis changers.

Check out my Configurable Bolt Knob to create knobs for this and other projects!

Examples

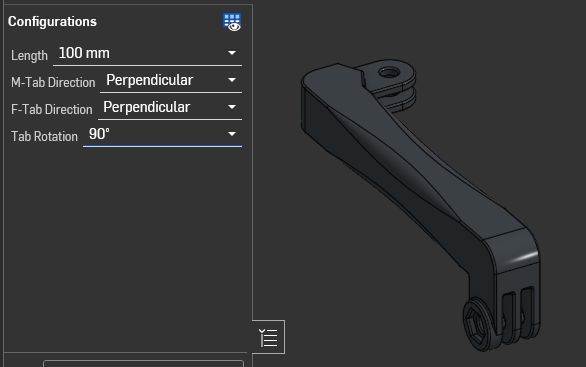

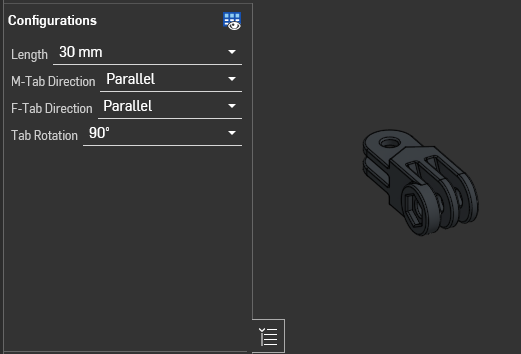

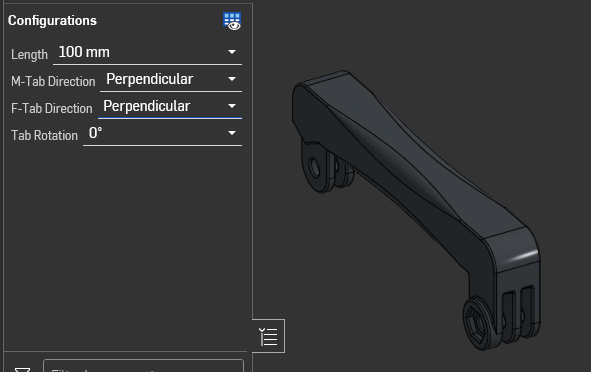

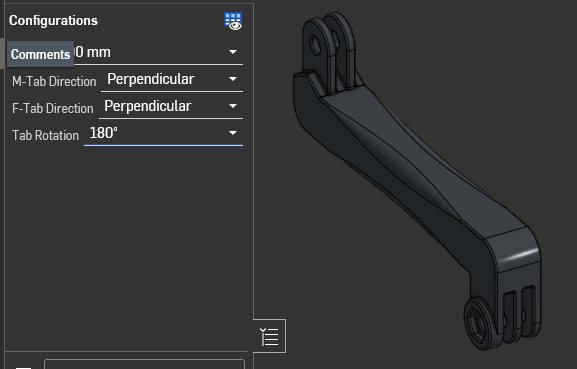

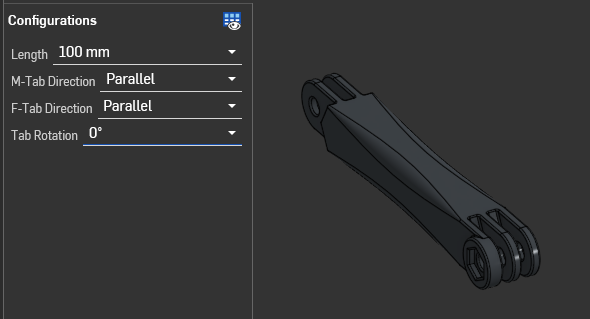

Here are just a few examples of possible configurations:
