Monster Truck V2! No Glue Needed to Assemble!

Update 29/01/26 - Screw together Shocks & Legs officially added! Model is 100% clip or screw together, no glue needed!

Update 28/01/26 - Big update! T-case now screws to body, hubs & axles click together. No glue needed!

Update 27/01/26 - Fixed shock mount orientation, better suites printing on side.

Update 26/01/26 - Added photo of support settings used for shocks, down below.

Update 24/01/26 - Redesigned hub to be more pointy, easier to attach wheel.

Update 23/01/26 - Body & Shocks are now clip together!

Easy assembly.

It's possible to print all on 1 bed sheet, but it's tight!

All parts sized to fit tightly together with tight margins to keep the model feeling solid, because of this, connections may require a bit of force.

Recommended assembly as follows:

• Review photos if any questions or leave a comment and I'll reply as soon as I can.

1. Screw T-case to Body

2. Screw Shocks to Legs, leave 1/4 - 1/2 turn unscrewed

3. Connect together Legs to T-case

4. Connect together Shocks to Body - gently compress shock until clips

5. Connect Hubs to Legs

6. Connect Axles to Hubs

7. Connect Wheels to Hubs

8. Insert Exhaust to Body

9. Complete!

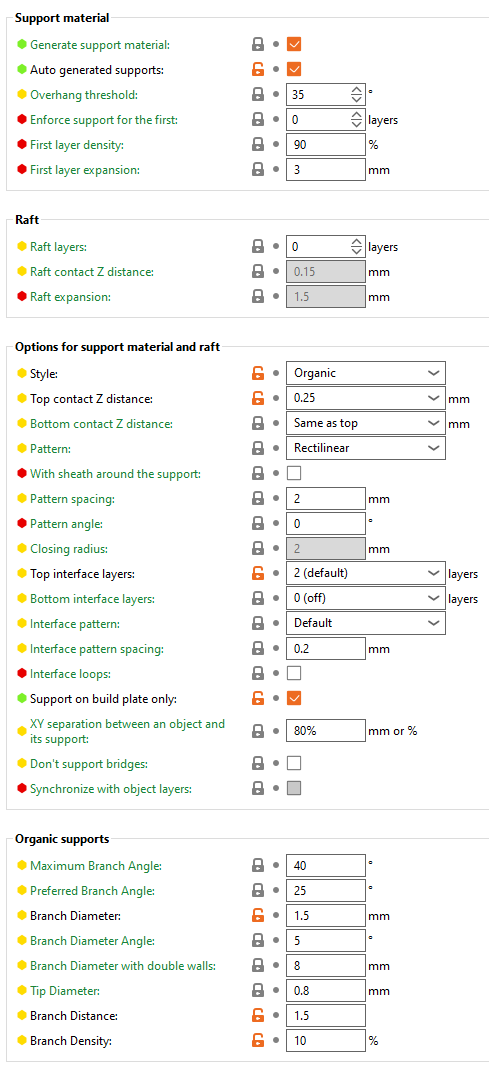

Support settings (for shocks):

Lots of supports needed on shocks. Shocks are tricky to print and after many trials these settings worked the best for me (Prusa Slicer). Much easier to remove and still a good quality print:

Redesigned most aspects of the model.

• Added shocks with mounts to body and legs
  • Shocks work
• Added ‘hubs’
• Added Axles
• Redesigned ‘transfer case’
• Redesigned ‘legs’
• Added 2nd exhaust
• Larger more defined tires
• Increased overall size
