Snow Brush and Ice Scraper Connector Replacement Part (Suitu ST-3904)

This is a direct replacement part for a snow and ice scraper connector (Suitu ST-3904). If your original plastic connector has snapped or worn out, this model allows you to restore your winter tool quickly and easily. It is designed to be a fit with original parts and uses the original mounting screw for installation.

Recommended Print Settings:

This part should be printed with a high wall count instead of infill to ensure maximum durability. In addition, use the QUALITY setting for better layer adhesion. This is crucial to keep the bendable part from breaking off.

• Material: PLA, PETG, ABS, etc.

• Infill: 100%.

• Wall Loops: 6 (Crucial for structural integrity and strength).

• Supports: Yes (Recommended for the locking tab and overhang areas).

• Layer Height: 0.2mm.

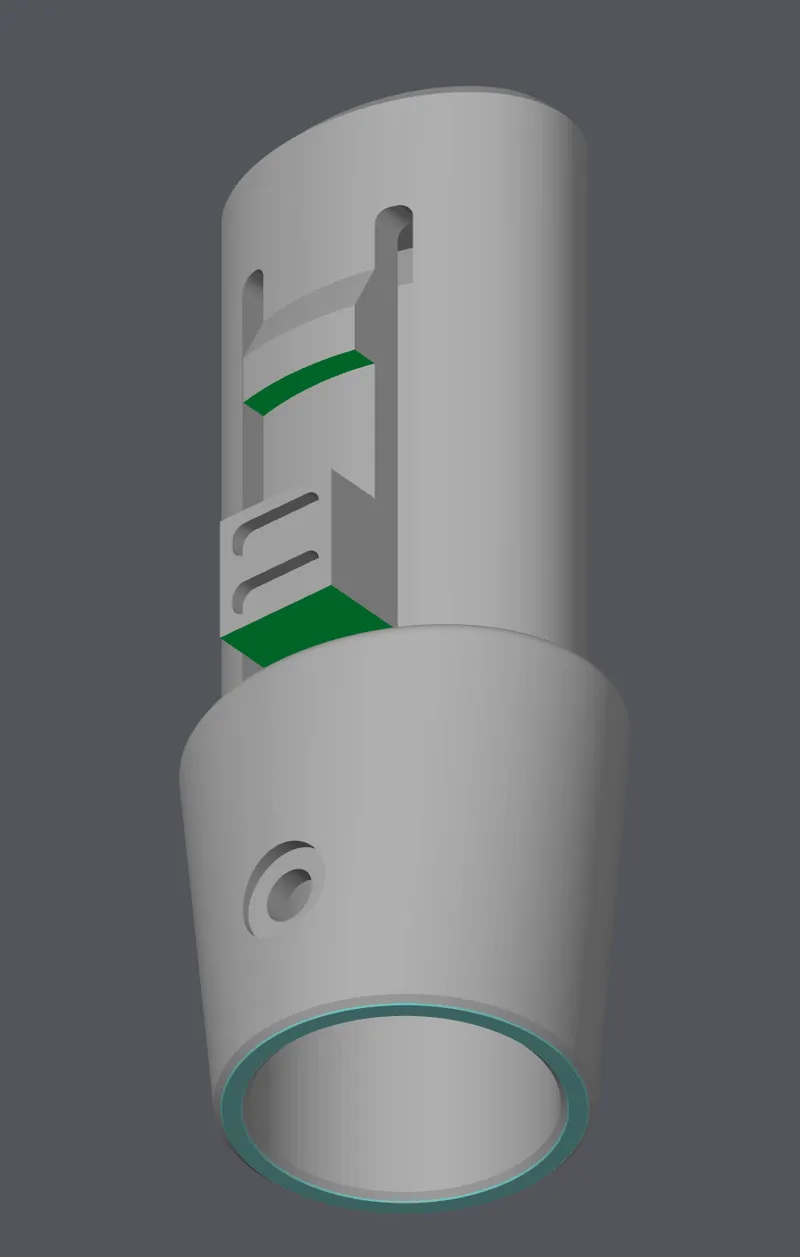

Recommended Support Placement:

Assembly Instructions:

1. Remove the broken connector from your scraper.

2. Slide the new 3D-printed connector onto the handle.

3. Align the hole with the mounting point on the handle.

4. Use the original screw to secure the part in place.

5. Snap the scraper head back on, and you're ready for the snow!
