PKB 5 B2 - custom cover ( parkside defender bluetooth )

Model suitable not only for those who follow their own style

You have a choice of two printing options:

1. As a project with your own logos/images, which you can simply replace by right-clicking on the "logo1.3mf" model and selecting the "replace with STL file" option

2. Use individual covers, apply a textured finish, choose the right color and that's it!

Happy printing, and don't forget to share your creation!

RECOMMENDED PRINT SETTINGS:

• Nozzle: 0.4mm

• Filament: PET

• Infill: 5%

• Layer Height: 0.2mm

• Perimeter: 2

• No supports needed at all

• Easy and reliable print

NECESSARY ACCESSORIES:

• 8 pieces of Heat Set Inserts with size M3 with a height of 4mm and an outer diameter of 5mm

• 8 pieces of M3 screws, 8mm long, with a hexagonal countersunk head

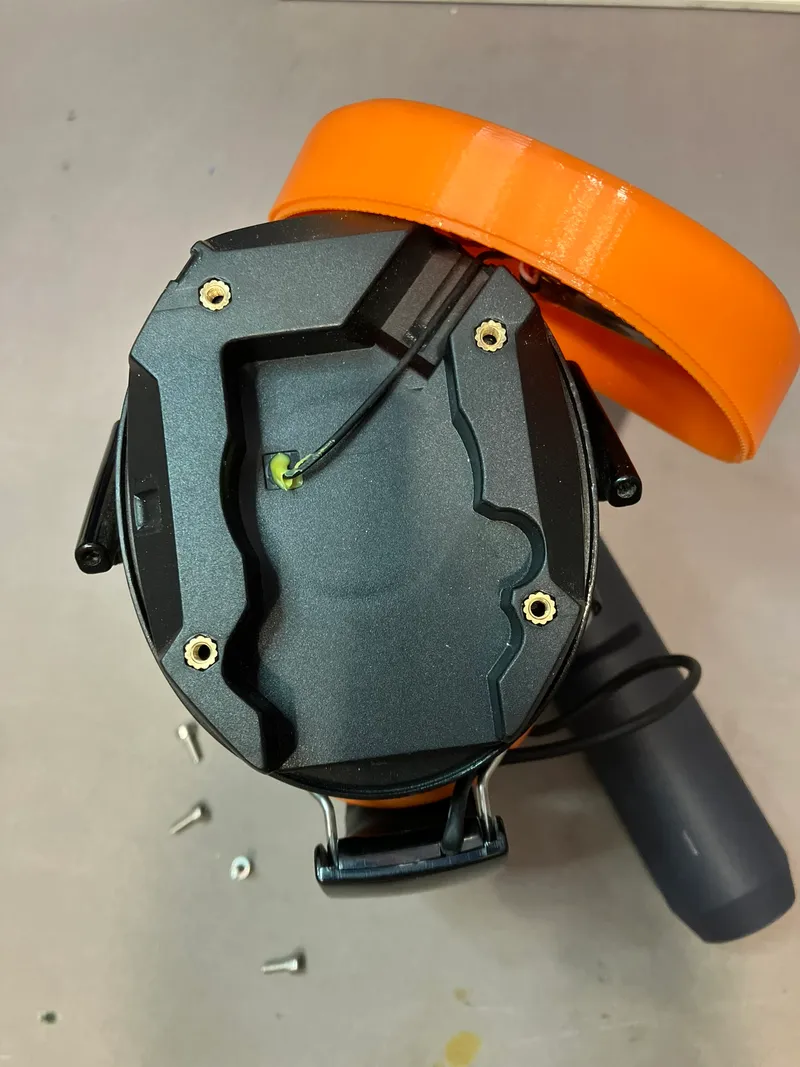

• When you are ready to remove the original covers, which are actually just pressed tightly onto the four rollers (places for future insertion of the inserts, you can see the specific places in the photos), for me it was enough to just hold firmly and rock from side to side with a lot of patience.

• If you decide to pry, in that case I recommend using a soft cloth to support the pry tool so you don't damage the black plastic.
