Laptop stand for 15,6 inch laptop with optional cooling
Description
PDFI liked the original concept, but it just didn't work for me. The base was too short, making the stand unstable, and my laptop actually slipped off once (luckily it landed on my chair). Also, I needed a way to keep the temps down during heavy work.
After this upgrade, I noticed a significant drop in operational temperatures—around 10°C to 15°C lower than before (results may vary depending on your laptop and fan and other conditions).
Main improvements:
Better construction: Extended the base and support arms. No more tipping over backwards.
Secure Grip: Reworked the front stoppers to be higher and reinforced. Your laptop won't go anywhere.
(optional upgrade) Active Cooling: The center brace is now a dedicated mount for a 140mm fan (I used a Noctua NF-A14 PWM).
Assembly & Print Tips:
Fan: Noctua NF-A14 PWM. Everything needed for fan mounting is included in the Noctua box.
Power Supply: I used a 12V / 2A (24W) DC Adapter (specifically Solight for LED strips). It provides more than enough power for silent and stable operation.
Material: I highly recommend using PETG (I used Prusament Signal White). PLA might soften/degrade over time due to the heat exhausting from the laptop.
Settings: Use at least 3-4 perimeters for maximum strength, especially for the front stoppers and joints. Use 20-25% infill.

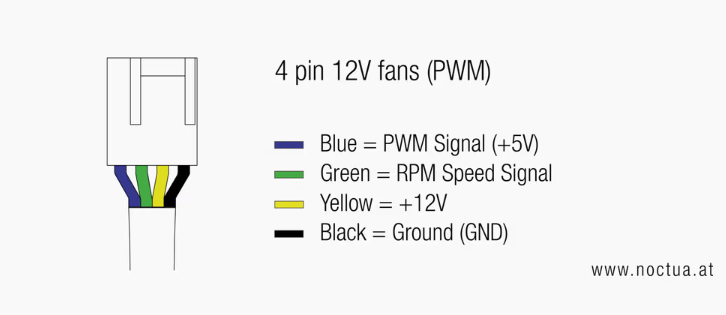

Wiring/Connection Diagram (for DC adapter only)
If you are using a standard 12V DC adapter instead of a PC motherboard (most likely), refer to the included Noctua wiring diagram down below:
Yellow Wire (+12V): Connect to the positive wire of your adapter.
Black Wire (GND): Connect to the negative (ground) wire of your adapter.
Blue/Green Wires: These are for PWM and RPM signals. For a simple "always-on" cooling setup, you can leave these disconnected.
Disclaimer:
All electrical modifications are performed at your own risk. The author assumes no responsibility for any damage to property or equipment caused by incorrect wiring or handling of electrical components.
Now is all magic on your printer.:)
T3D_design 2026
Resources:
https://www.noctua.at/en/support/faqs/what-pin-configuration-do-noctua-fans-use
https://www.alza.cz/solight-sitovy-adapter-pro-led-pasky-230v-12v-2a-24w-bila-barva-d6859917.htm
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
This is a complete ground-up redesign. While inspired by the original concept, this version fixes several major full functionality issues and introduces optional active cooling:
Fixed Stability (Anti-Tip): The original design was way too short, which was a massive problem. I extended both the top support and the bottom base. The stand is now rock-solid even during heavy typing and won't tip over backwards.
Improved Front Stoppers (Anti-Slip): I completely reworked the front feet that hold the laptop. My laptop actually slipped off the original stand once (thankfully it landed on a chair). This version features higher, reinforced stoppers to prevent any sliding again.
Optional Active Cooling (1st gen): The center brace has been redesigned to act as a dedicated fan mount (optimized for Noctua fans). It directs airflow straight to the laptop's intake, making it a perfect functional upgrade for high-performance tasks.
