Drybox mount for Mi Temperature & Humidity Monitor 2

Description

Minimalist cradle mount for Mi Temperature & Humidity Monitor 2.
This mount designed to be glued behind glass, plastic or another transparent flat surface, primary speaking of dryboxes and desk greenhouses.

Required BOM

1. Thin white double-sided tape, preferably 40mm or wider.

Printing

I've used white PLA with 0.1mm layer and 100% infill, and but less infill & quality would suffice for a functional part. I've also used top surface ironing, but it is just for looks & completely unnecessary.

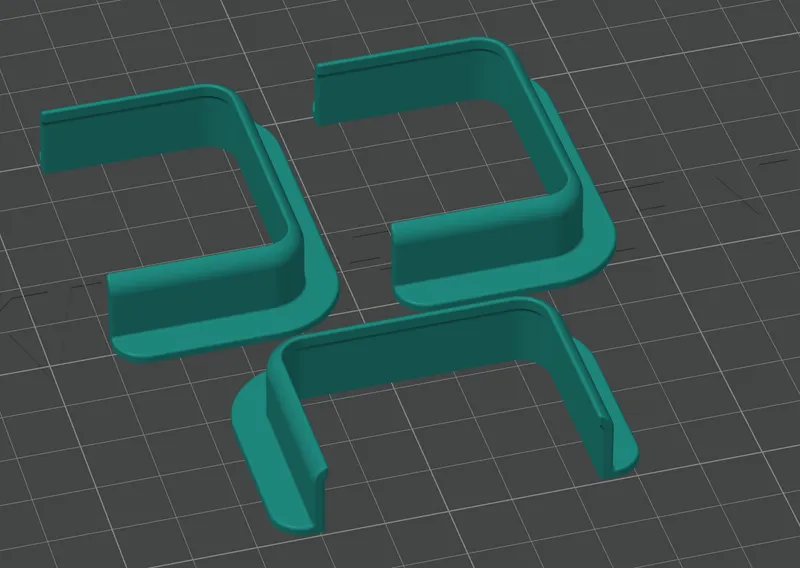

Models should be oriented as on following image:

Use flat table to achieve stronger adhesion, or use textured table for relatively easy removal.

Assembly

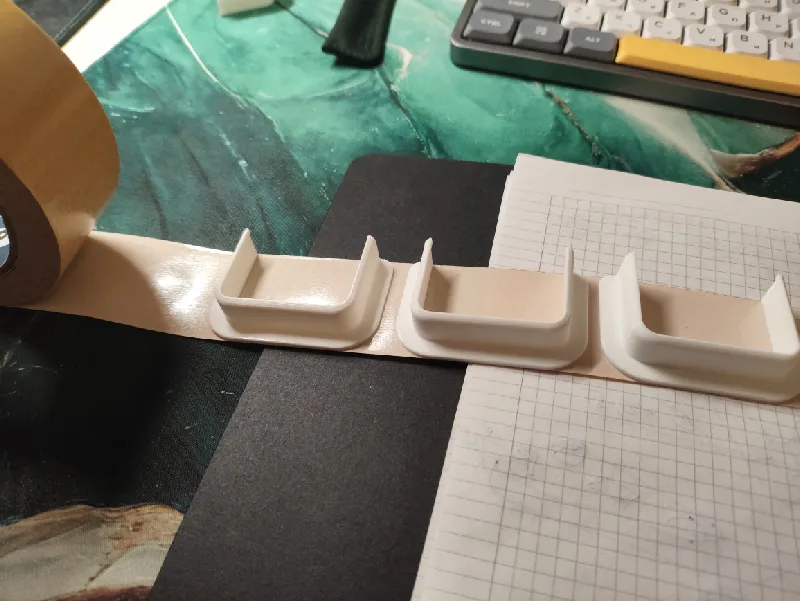

• Take a piece of tape that has suitable size to fit your prints, and stick prints with flat side down:




  Mount was designed with 40mm adhesive tape in mind. You can use narrower tape, but it would require more manual trimming.

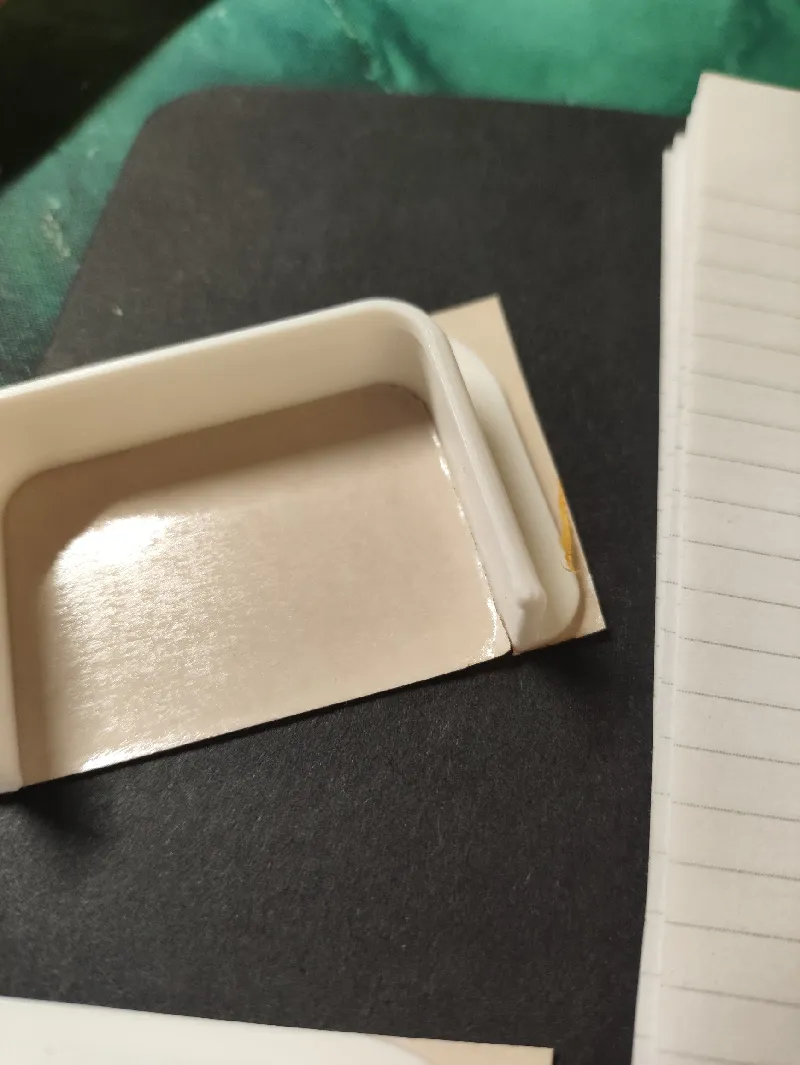

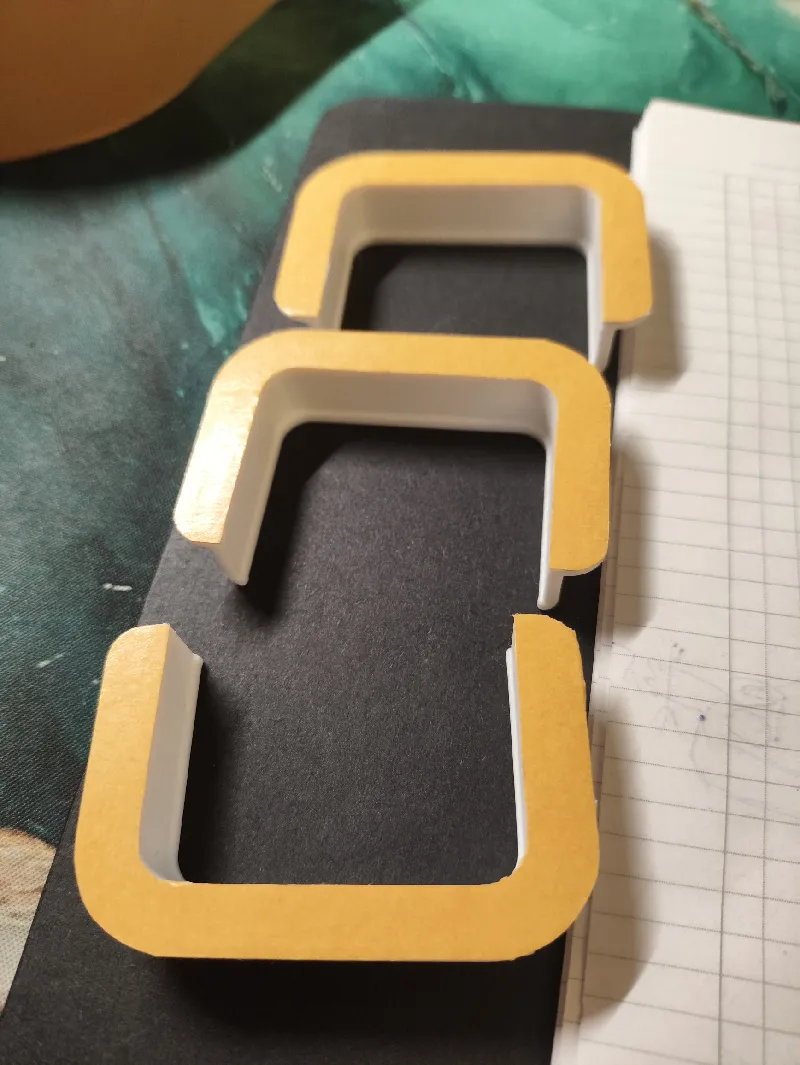

• Separate your prints from one another, and use box cutter or precision knife to trim tape using part wall as a template:

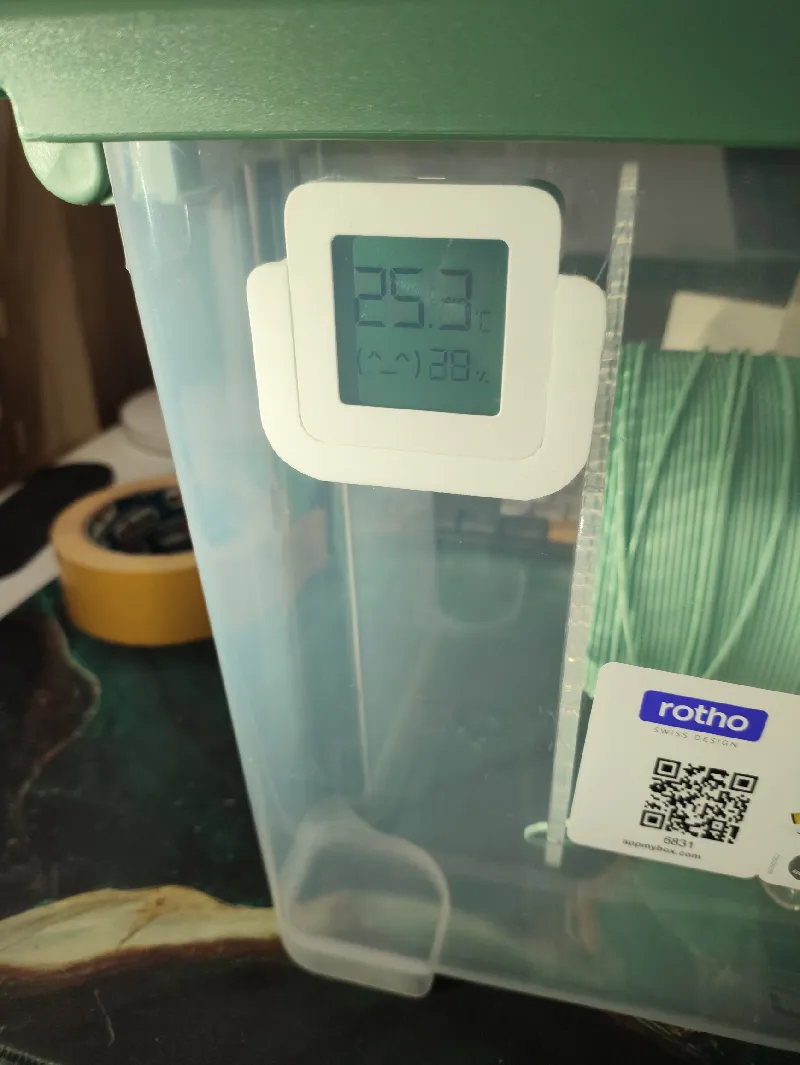

• Stick prints inside a drybox or on other transparent surface as you see fit:
