Revolver Easy Moon-Clip Loader, 2 Piece Print

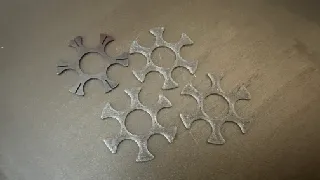

After purchasing a RIA/Alfa Proj. AL9.0 9mm revolver, I needed a way to easily reload moon clips that didn't cost a fortune. I quickly modeled up a squeeze-style loader that holds the moon clip in place, while guiding cartridges into each position. This does not take much force due to ample mechanical advantage in the arm. Feel free to modify the STEP files to fit whatever moon clips you would like to use, as long as you keep the license the same as on this model and re-upload as a remix so others can benefit as well.

• Parts required:

  • (1) 1/4-20 countersunk machine screw

  • (1) 1/4" washer

  • (1) 1/4-20 nylon insert lock nut

  • Printed Components

• Print details:

  • Material-PA6GF, although this would likely work just fine in other filaments as well.

  • Walls/top and bottom layers-4 or 5, depending on material

  • Infill-25% rectilinear

• Assembly:

  • After printing, ensure smooth fit between the pivot point and the arm.

  • Insert 1/4-20 bolt from the bottom up through both pieces.

  • Place washer on top, then the nut.

  • Tighten nut until it bottoms out against the washer. Back out 1/8 turn to allow for smooth operation.

• Video Link-

  • https://youtube.com/shorts/Ky7rnyNnVSs?si=wEuLI5tA717TWlVA

Hopefully this helps save anyone's thumbs out there if you have a lot of moon clips to load! Feel free to remix or suggest modifications to the design. I check printables fairly regularly, and would be happy to help.
