Everything Presence Pro Ceiling Mount

My new and improved downlight enclosure for the Everything Presence Pro sensor!

• Repackages the Everything Presence Pro as a ceiling-mounted sensor

• Fits a 90mm or 92mm downlight hole

Parts


• Everything Presence Pro Sensor

• 4 x M3x12mm

• 2 x M2x6mm

• 2 x M3x25mm

• Optional 6mmx20mm springs

Printing

Print each component flat side down, I used a textured print bed. Matte filaments blended into my ceiling best.

PLA should be fine, but if you're in a warm climate, PETG is a much better option.

No supports required

Assembly

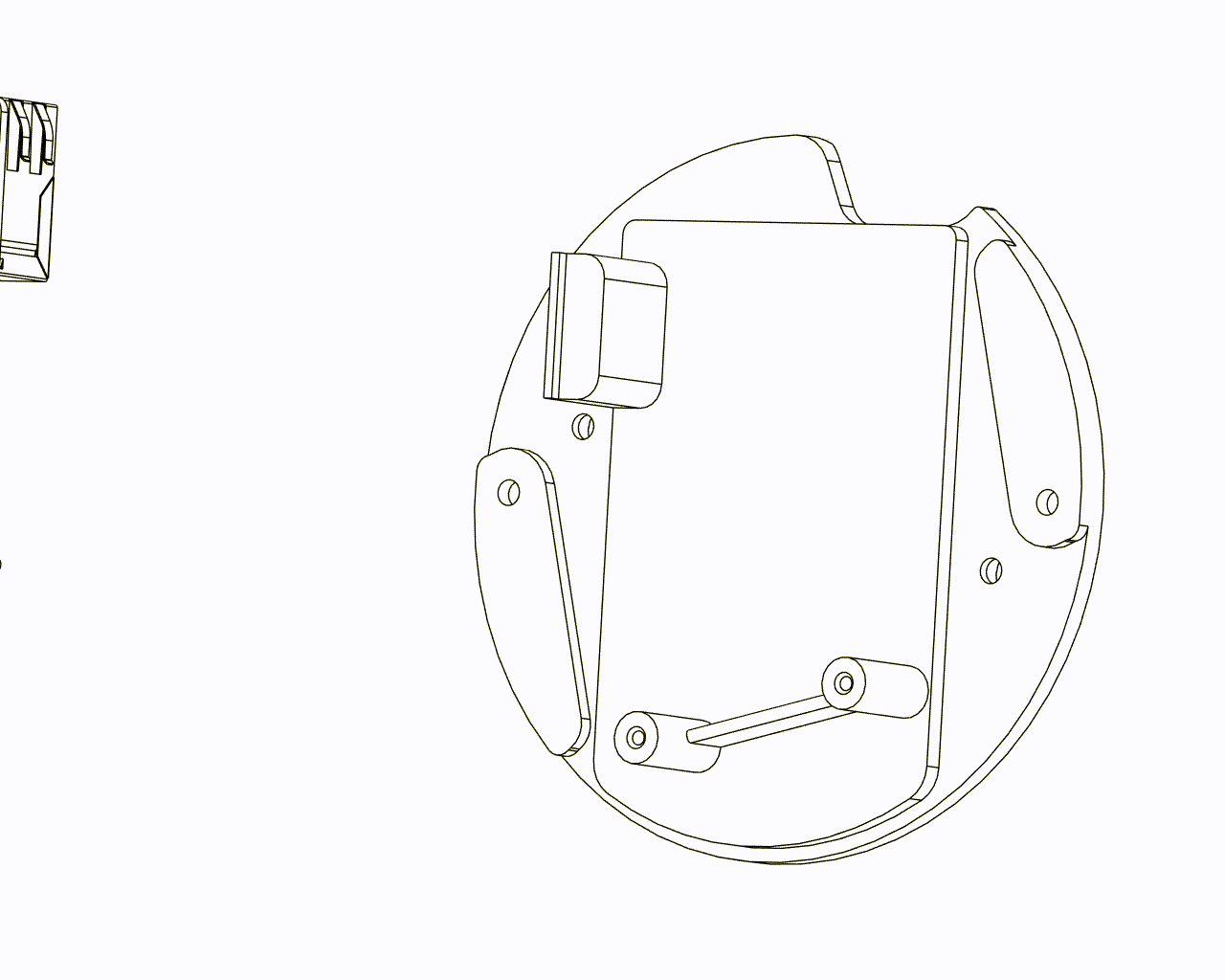

Disassemble your EP Pro sensor, and using the M2x8mm screws, screw it into the Sensor_Mount component. Only two of the screw holes are utilised.

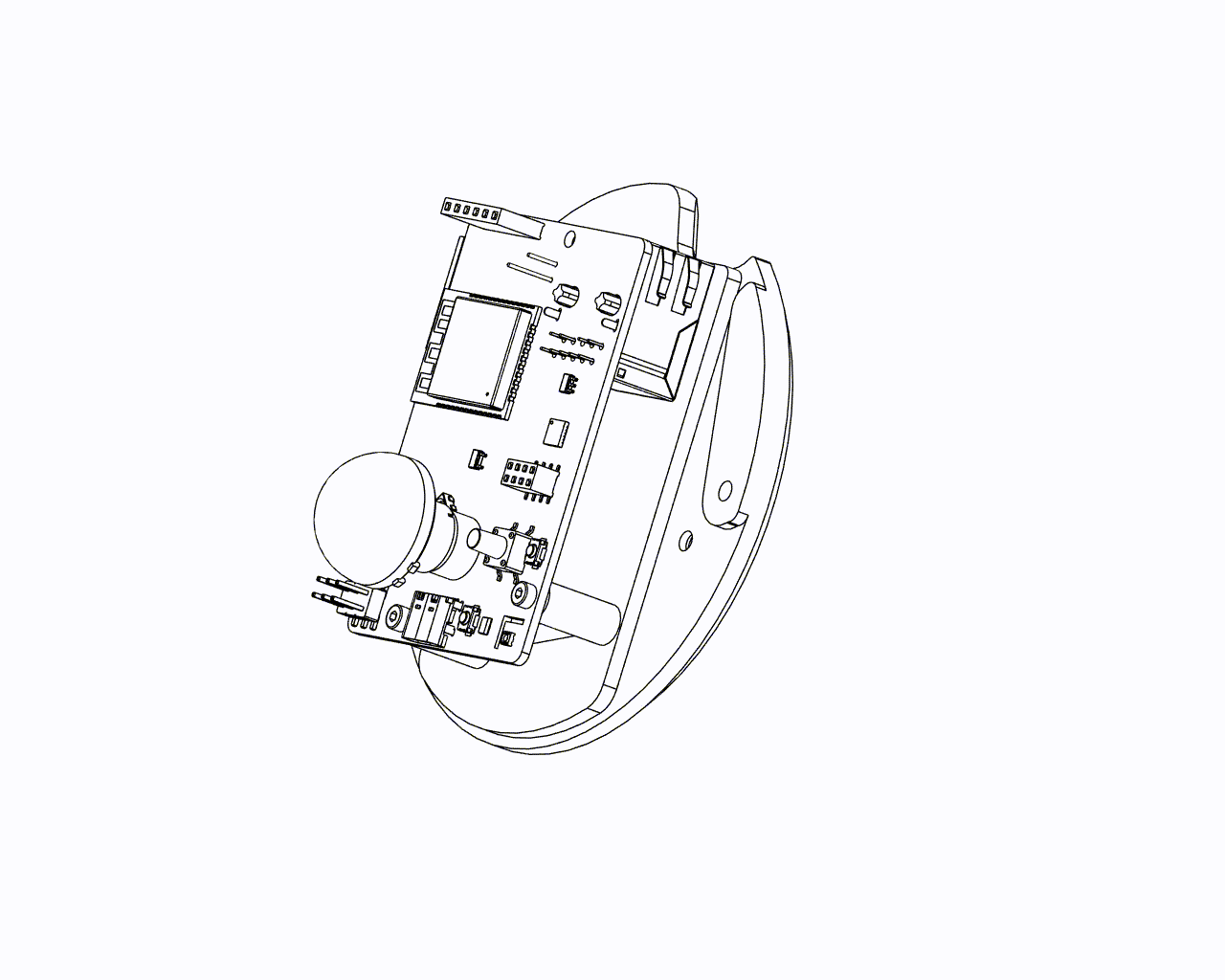

Install the Shroud using 2 x M3x10mm screws.

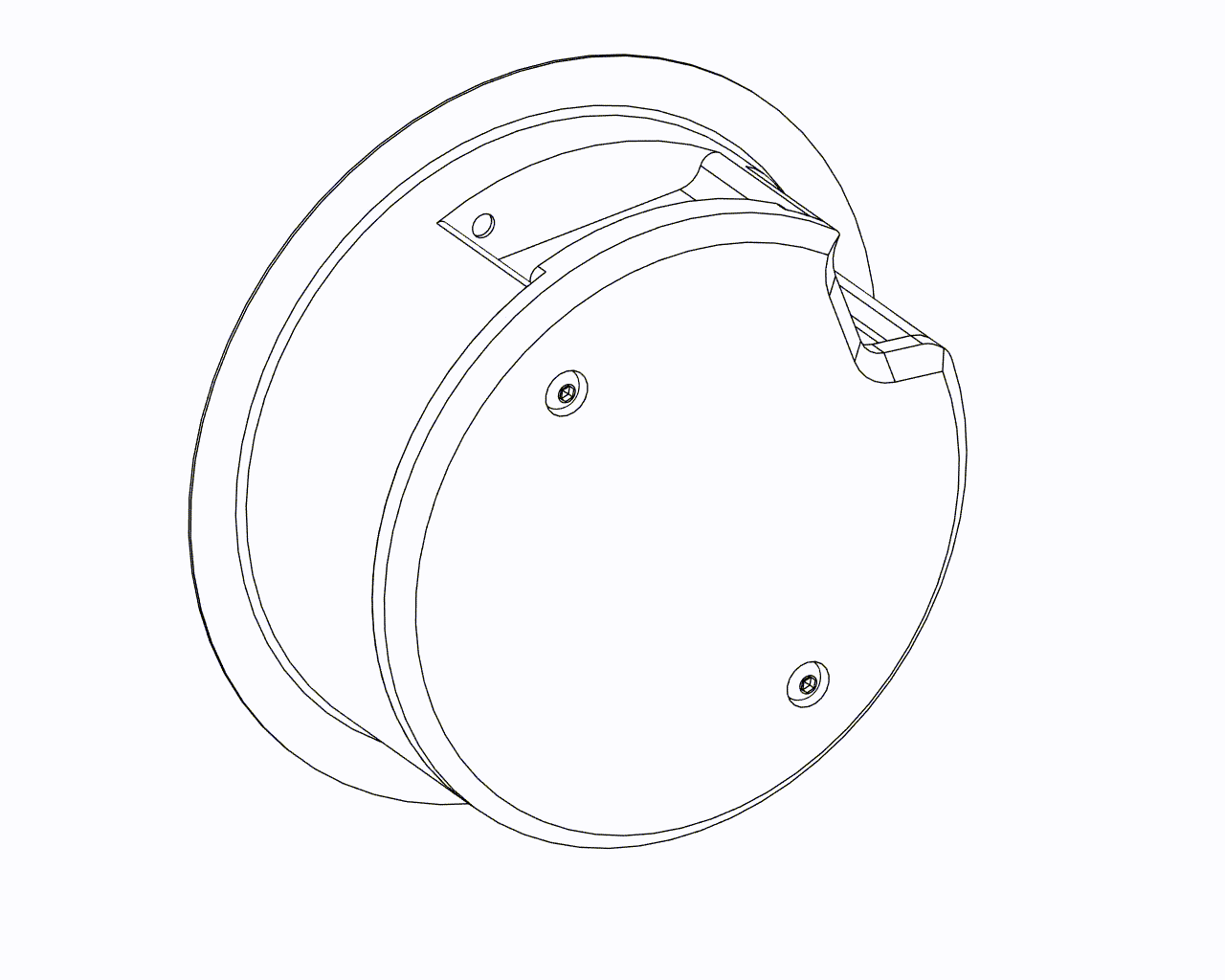

Lastly, install your arms with the M3x25mm screws through the Shroud and the arms, adding springs between the arm and Shroud component if you want to!

You're done! To install your sensor, cut a 90mm hole in your ceiling, slide the sensor into place and tighten the 25mm M3 screws.

As you tighten them, the arms will swing out and tighten against the back of the plasterboard.

Once tight, lock your faceplate in place.
