Thermistor mount

There are two different housings. The standard housing is to be mounted on a horisontal 2020 extrusion like in the pictures. The other one is for mounting it on a vertical extrusion.

Both use the same back cover.

The models are oriented correct and does not need supports.

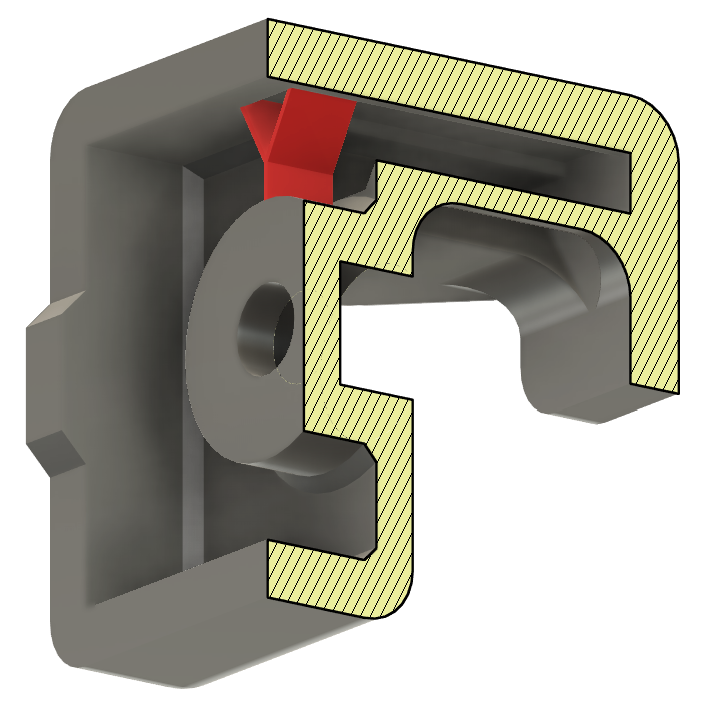

A build-in support marked in red need to be removed after printing

Place the thermistor in the back cover with 2 mm extra cable.

The cable need to be in the correct opening to hide it inside the extrusion.

Slide the back cover into the housing to lock the thermistor in place.
