Cooler Master Qube 540 RETRO MOD front panel

Cooler Master Qube 540 RETRO MOD Front panel

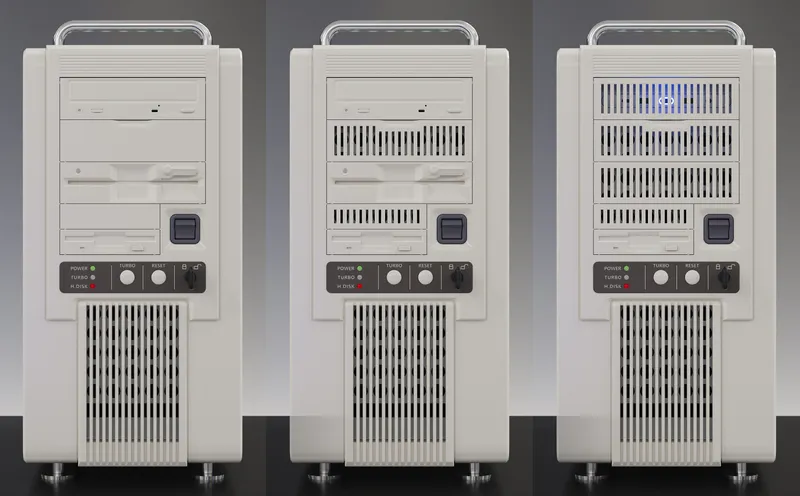

This retro mod was inspired by retro computers from the 90s, like the 386.

Design Features

The I/O panel is hidden under a hinged cover that resembles an optical drive, and there are also several types of replaceable front panel blanks marked as optional.

The power button makes a clicking noise, but it can be made functional as it has a removable housing.

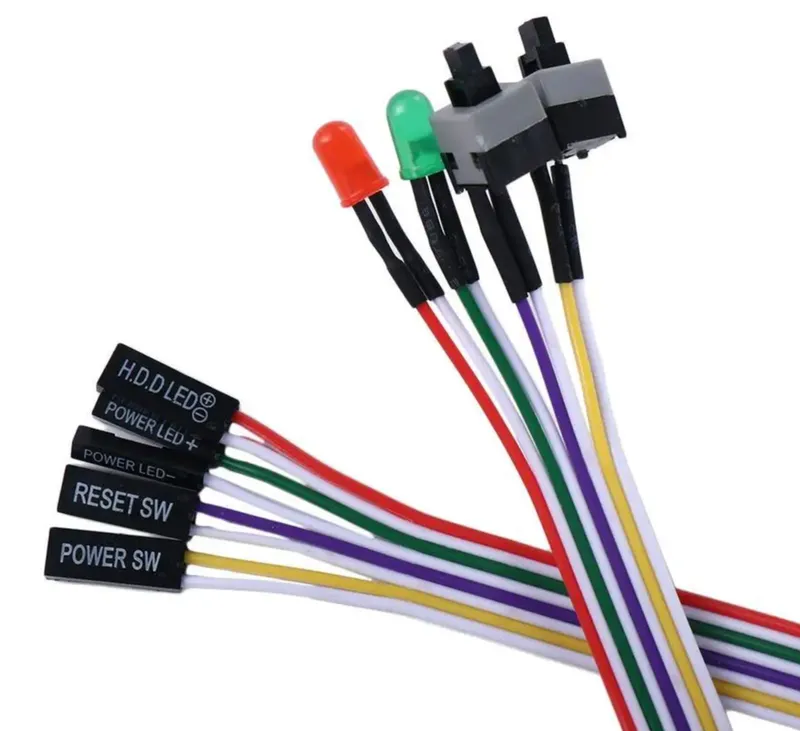

The front panel indicators can also be made functional using the front panel power and HDD LED kit.

For assembly, you will need:

M3x10 screws - 16 pieces

Glue (optional)

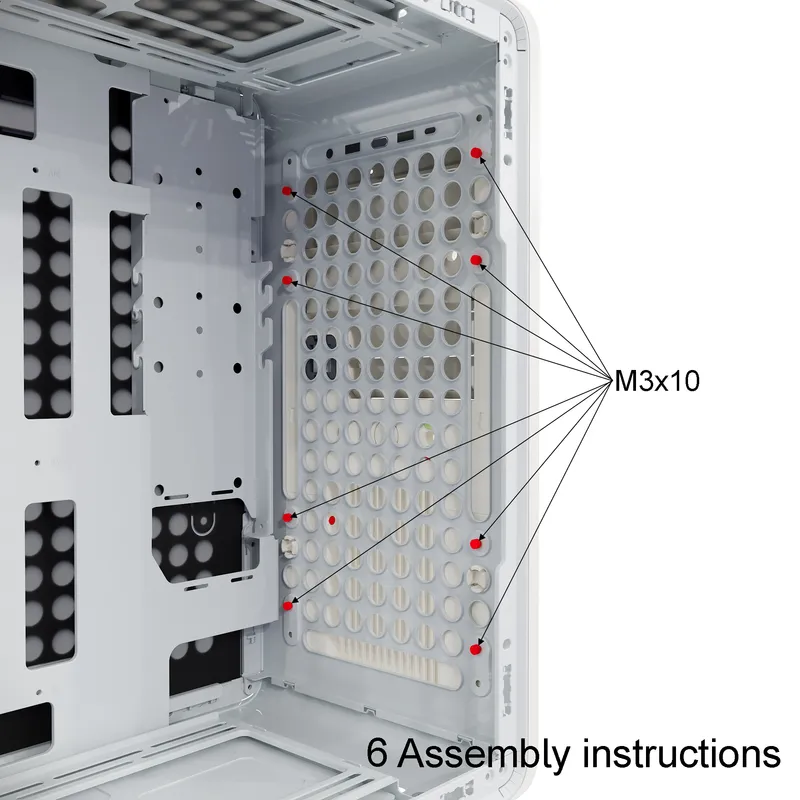

The panel is secured from the inside of the case with 8 screws

Print settings:

2-3 perimeters

15-25% infill

Pins - Should be printed with 100% infill

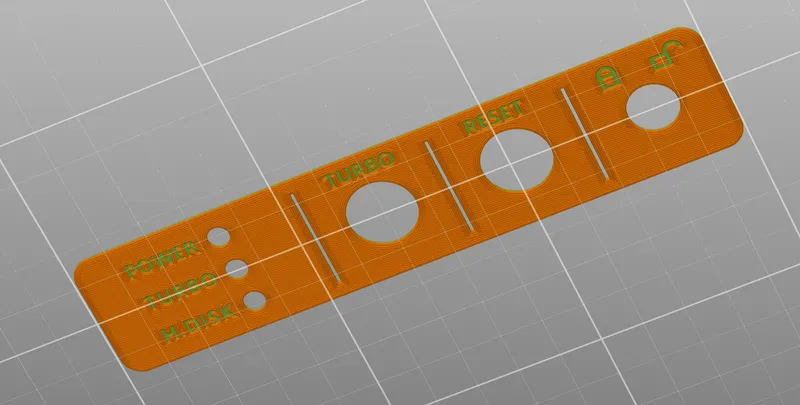

Front Panel Label.stl- Print using color change on the 4th layer to obtain more contrasting inscriptions.

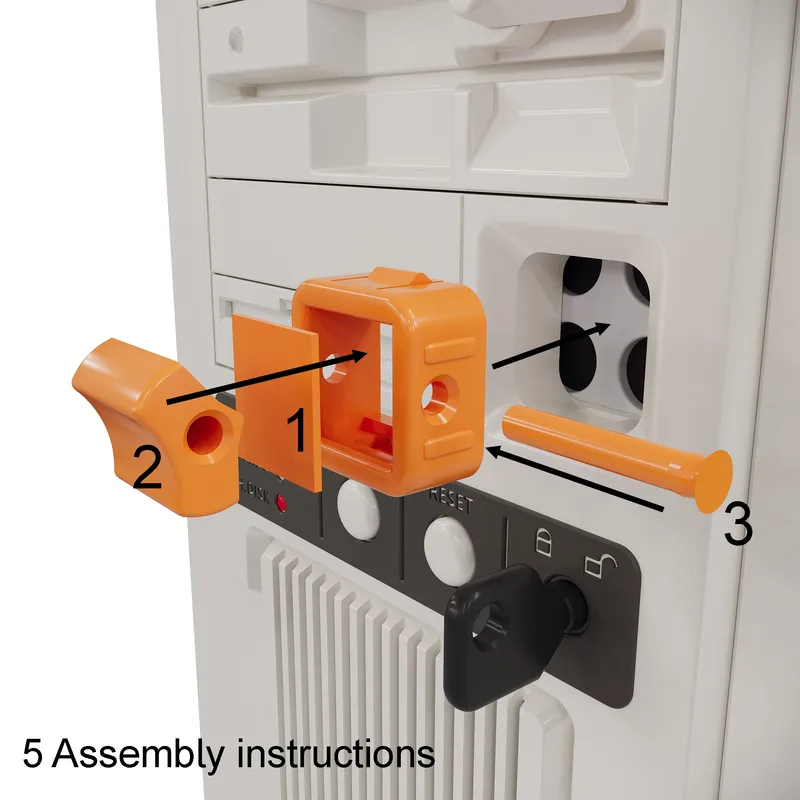

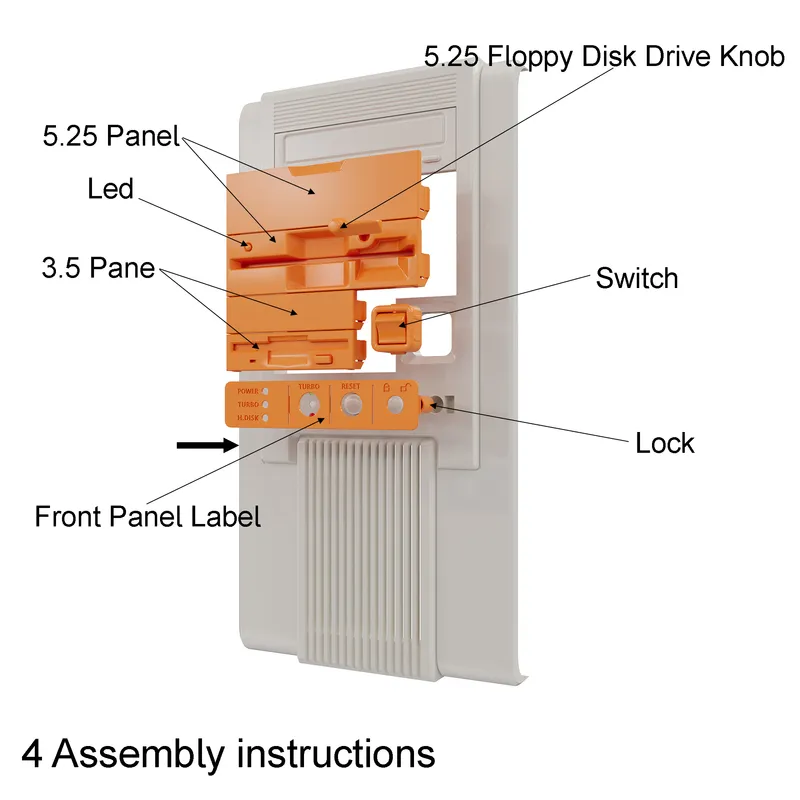

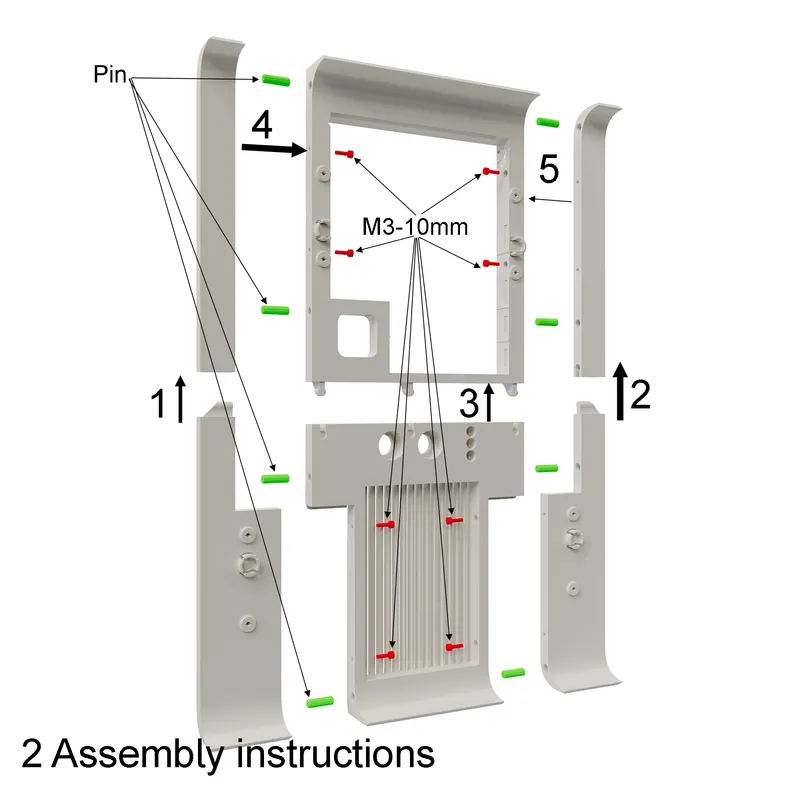

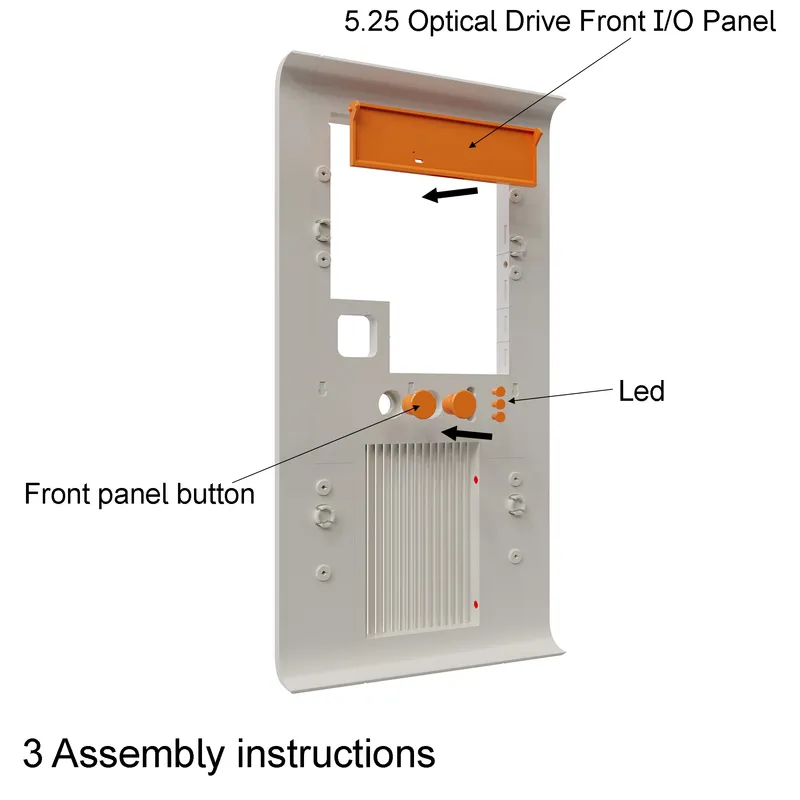

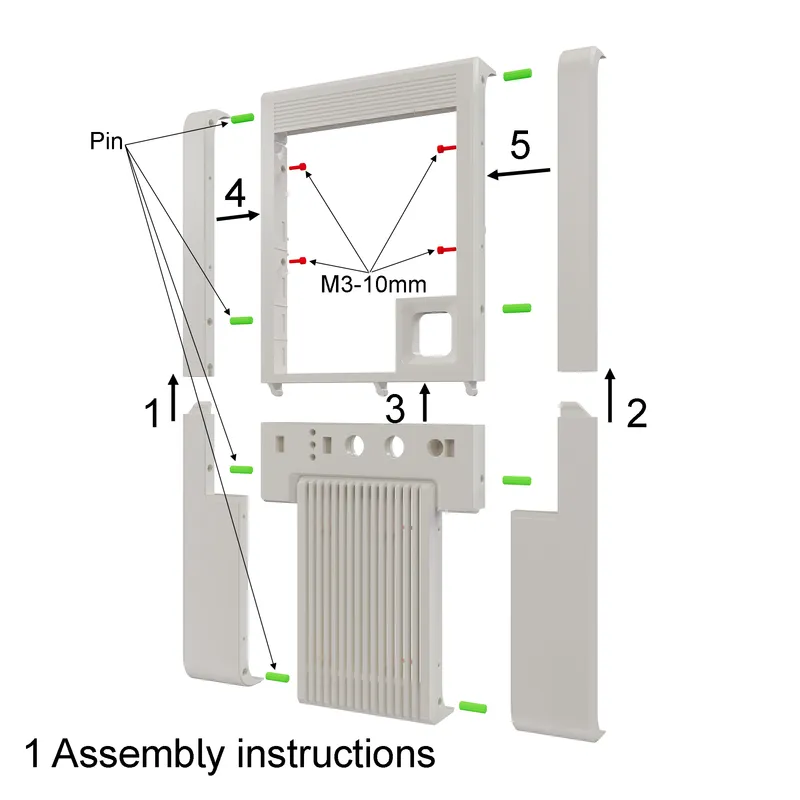

Assembly instructions
