Frame Brace for LDO Voron

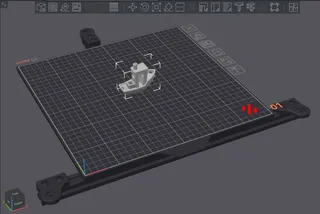

Print in ASA/ABS with standard Voron spec print settings. No supports required.

Trident gantry K braces will interfere with Y axis drag chain, 75mm braces will not.

Required Hardware:

• Each 45 degree brace needs 4 x M5x10 BHCS; 4 x M5 roll-in T nuts
• Each gantry K brace needs 6 x M5x10 BHCS; 6 x M5 roll-in T nuts

Original v2 parts (96mm brace) interfered with full range of tool head movement and did not fit LDO extrusion channel (6.5mm).

• K brace resized to perfectly fit optimal Trident gantry spacing (110mm)
• 75mm corner brace will not interfere with StealthBurner motion or drag chains
• Fits LDO 2020 extrusions
