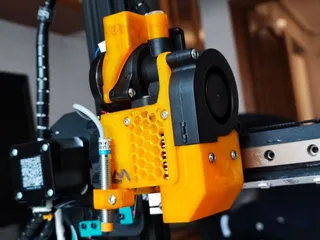

Gran diseño, todo encaja a la perfección! El salto en calidad con respecto al extrusor de serie es brutal. (edited)
Kingroon KP3S - Orbiter V2.0 + V6 - Direct Drive
Kingroon KP3S - Orbiter V2.0 - Direct Drive V6/Phaetus Dragon ST
88
460
13
4162
updated
March 23, 2024
Makes
Comments
Muchas gracias. Me alegra ver el resultado final, y lo más importante es saber que has notado una gran mejoría en el máquina. Disfrútala.
@Tadeus_973874 Thanks for your make and comment!!
@gohackurself_1475923 Thanks so much for your make!! Enjoy it!!
Using this setup for a while, with no issues.
The only thing I modified, added heat inserts for every hole (3D Touch mount too) for a better maintenance ability.

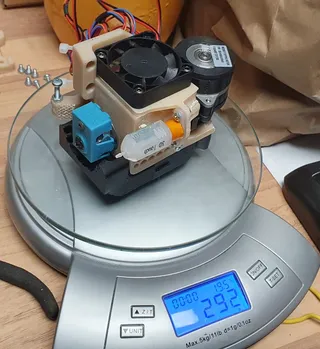

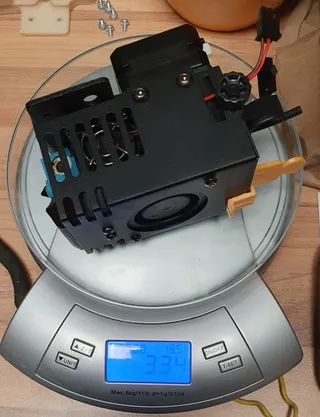

Cooling working great, weight is much less than the original (Titan) setup.

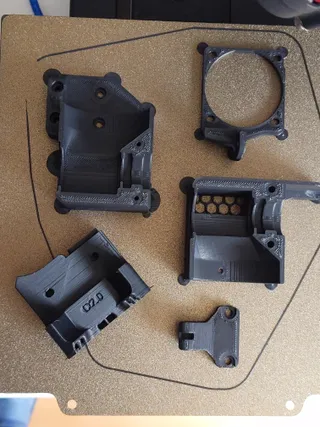

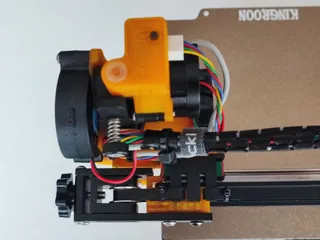

Reference pictures added (the first try was made from natur HIPS, but the long term model is from ped/black ABS). All the measured toolheads was assembled, with cables, etc.
@LMaker Do you maybe have a X/Y Offset for BL-Touch with this?
@yardi83_647374 Yes, I updated the publication with X/Y offset for BL. X=-20 Y=-33.65
@LMaker Thank You :)
@xuximojados Gracias por compartir, esa va con todos los mods.... Un saludo
@LMaker al final si jajajaja , me faltaba extrusión ya con titán si iva rápido.
View 2 more comments

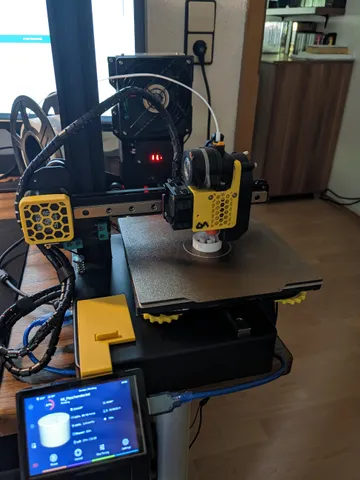

Nice Design! Printed in Extrudr Durapro ASA black and yellow. I drilled out the screw holes a bit and putted in M3 brass inserts.
I am using a V6 CHC hotend and the performance is excellent! Thank you! Verry thought out Design!
Thanks for your make, it look very nice. Good job!!

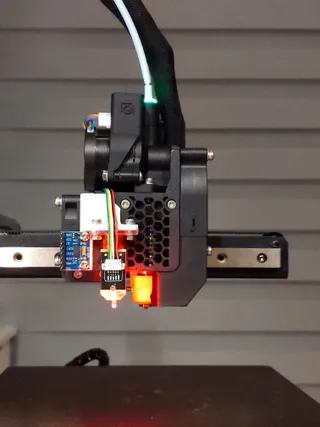

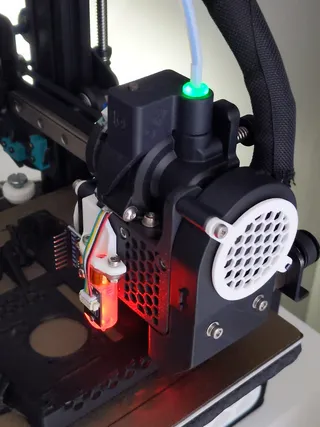

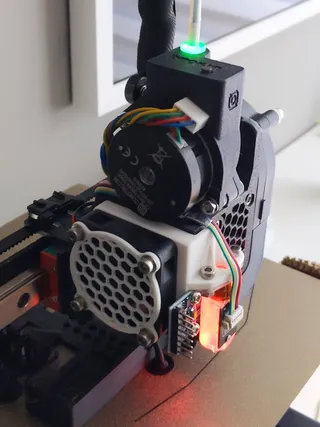

Printed with Winkle filament. Jet Black ASA, with Glacier White PLA for fan grids and modified 3Dtouch + ADXL345 mount. Very good fit between parts, only missed heated brass inserts. I also needed to scale up the fan shroud by 2mm in Z because my heatbreak was a bit longer. (edited)
@Nephiel_428563 Thanks so much for your make. It look very nice. Enjoy your kingroon
Are the jumper and driver physical changes needed if we're using klipper?
@mallrat32_229223 If you want to modify the microsteps of your driver, you need to change the jumpers in the case of the v1 v2 board, in the case of v1.3 you need to change it to uart mode
Finalizing installation, but like another person that finished theirs, I had to trim a little bit out to fit my Revo Six.
@ionv3n0m_298221 Yesterday I uploaded a new version for the revo six. Thanks for sharing your make!!!
Como con otros mod de @LMaker muy fácil de instalar y usar. Muchas gracias por compartirlo.
@terkayuk_430430 Que guapo si señor, gracias por el make!!
