About

Hydra AMS HT is an enhanced drop-in main body replacement for the Bambu Lab AMS HT.

The Bambu Lab AMS HT internals are used, you just need to move over the parts.

Hydra AMS HT supports all standard functions such as heating, venting, RFID support, filament bypass etc. but with these improvements:

• Increased spool widths, up to 77 mm, meaning most 1 Kg spools will fit.
• Increased spool diameters, up to 203 mm diameter spools fit.
• Adjustable spool rollers in 10 positions for 120 mm to 203 mm diameter spools.
• Optional front and rear spool guides, can be easily removed for even larger spools (max 77 mm wide).
• PTFE filament guide that automatically adjusts to the remaining filament on the spool. This curved PTFE guide ensures correct entry into the feeder and it has a range of 20 degrees, meaning filament entry is always optimized. This sorts the issue of near empty spools when the AMS throws a code, pauses and can't feed filament forward as the angle is too steep.

The name Hydra is inspired by the mythological creature which grew two new heads as one was cut off, similar to how the AMS's tend to duplicate if you don't keep a firm grip of your wallet. I have other designs with names from Greek mythology (Icarus / Hercules) so I thought it was fitting.

All stock parts are reused and no extra parts are needed for assembly, except for two 20 mm M3 socket heads and a small piece of PTFE tube for the guide. Optionally, you can use standard size M3 heated inserts (either 4.5 mm length or 5.7 mm) and an 8 mm socket head for attaching the PTFE guide but most will be fine with just using longer socket heads into the main casing, there is about 13 mm of material to screw into. But it's a hybrid so both threaded or heated inserts can be used.

The installation is much easier and quicker than a Hydra AMS / Hydra PRO / Hydra 2 AMS conversion.

If you download the individual 3MF files in the files section, they are design files only and can be easily printed on any printer / slicer. If you get a warning that they do not come from Bambu Lab just ignore the warning, they were exported directly from my design software.

Leave feedback in the comments. Thanks!

BOM - Bill of Materials

I recommend printing Hydra AMS HT in ABS, ASA or higher due to the high temp heater. Around 200 g of filament is required at the recommended print settings.

I've printed most of the test builds in Prusament ASA and eSUN ABS, both brands and filament types work great.

Filament

• eSUN ABS

Fasteners

You need just two M3 socket head bolts, 25 mm in length is ideal.

If you don't have any at home it's best to grab the kit below, it will have everything you need for this build and more:

• 150 pcs M3 Hex Socket Head Kit

Optional

Although not required these PEO/PEI/PEY bed sheets are great, I have most options myself, it gives a quite cool look on the first layer. There are a few shops offering different plates:

• Build Plate PEO/PEI/PEY Spring Steel Sheet

The Hex Tools are superb for any 3D printer, I've had a few different ones over the years, these are the ones I use now as they are quite compact with replaceable different hex bits, they're the ones you see in the assembly guide a few pages down:

• Hex Tools (1.5 mm - 3.0 mm)

Before Printing Hydra HT AMS

Make sure you dial in flow correctly before you start, we've seen a few Hydra prints that were overextruded so avoid that. Printed correctly, everything works just as stock but support for larger spools (among other advantages).

The Bambu Lab printers usually do a pretty good with automatic flow calibration but it's best to confirm flow anyway, sometimes it is inaccurate.

Print Settings

As it's a HT heater supporting up to 85 C heating, Hydra HT must be printed in ABS/ASA or higher. At the recommended print settings, less than 200 g of filament is used in total including supports so you may like to step up to PC-CF or PA-CF even, as the filament cost will be low regardless.

Print the parts in the direction I have set them. I recommend using a wide brim for improved bed adhesion and Nano Polymer if you have some.

Hydra AMS HT prints in seven parts and only very few supports are required (less than 10g in total) as the floor prints separately, it's pressed in place by the heater against a ledge of the main part for a flush floor and heater installation. The "cover" is a perfect fit gear housing for the feeder gear.

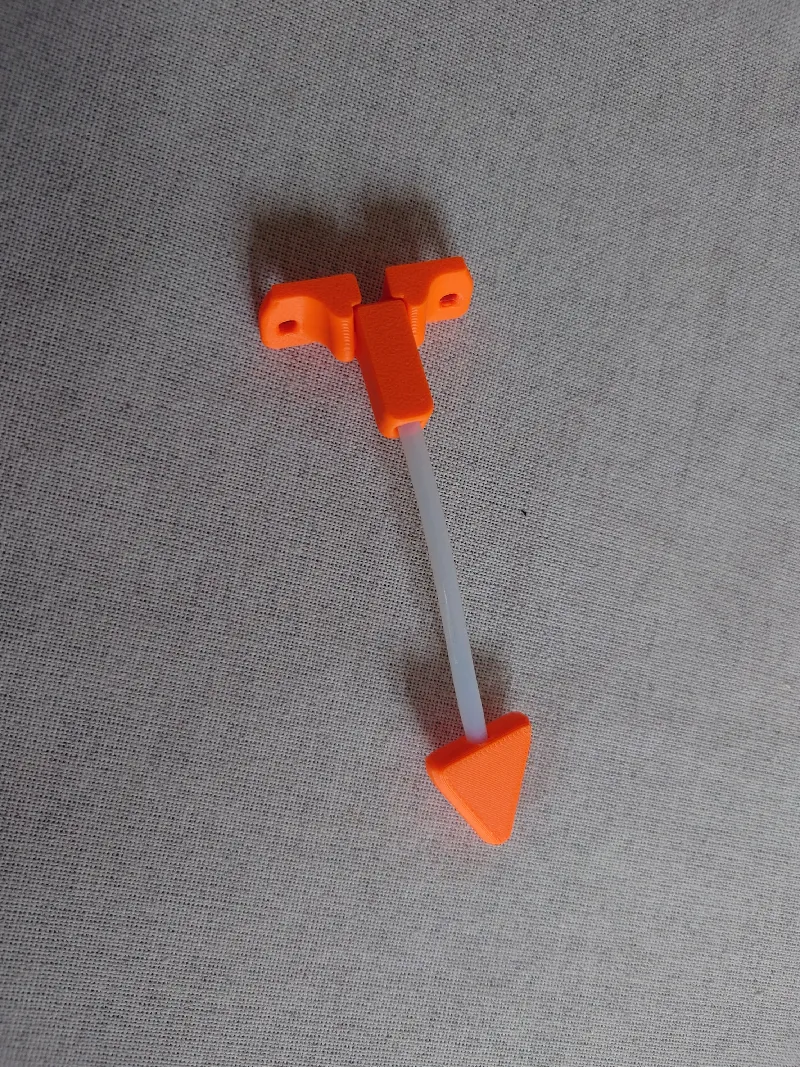

The PTFE guide is actually two parts pre-assembled and it has a ball joint with a limited movement of 20 degrees. The "seal divider" is a press-fit divider to keep the rubber seal in place, it has small wedge shaped teeth that go into the main casing for alignment. The rubber seal is just peeled off from the stock casing and moved over, no new glue is needed.

• hydra-ams-ht-main-1.00.3mf
• hydra-ams-ht-floor-1.00.3mf
• hydra-ams-ht-cover-1.00
• hydra-ams-ht-seal-divider-1.00b.3mf
• hydra-ams-ht-ptfe-guide-1.00.3mf
• hydra-ams-ht-spool-guide-print-2pcs-1.00.3mf

Once you have printed everything, make sure to remove all supports completely.

Warranty

Hydra AMS HT does not void your warranty but be careful, especially with the electronics, use an antistatic wrist band. Also be extra careful removing the cables on the main board, most cables have a little locking tab you need to press before you can unplug them.

The rest of the disassembly and assembly is quite fast and easy.

Although the mod is completely reversible and you can't tell the parts have been installed in Hydra AMS HT, I take no responsibility and you're on your own. Be careful and take it slow, read this page twice before you start.

Assembly Instructions

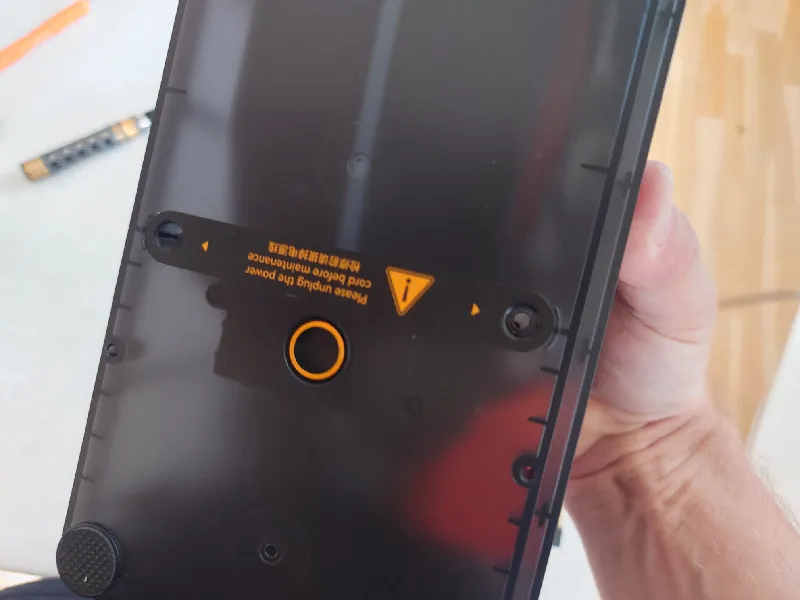

Remove the Bambu Lab AMS HT internals from the standard AMS HT box, follow this guide, it's not difficult:

https://wiki.bambulab.com/en/ams-2-pro/maintenance/disassembly-and-assembly

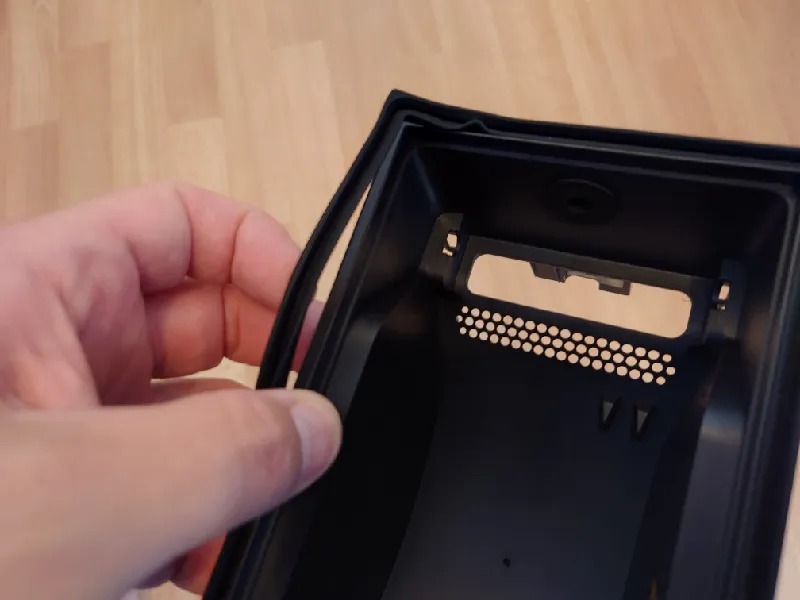

Once that is done, also remove the the gasket on the stock AMS HT, just pull it straight up and off, it's glued but pulls off easily. Leave the gasket with the glue side up so you can reuse it in the assembly steps later (without applying new glue).

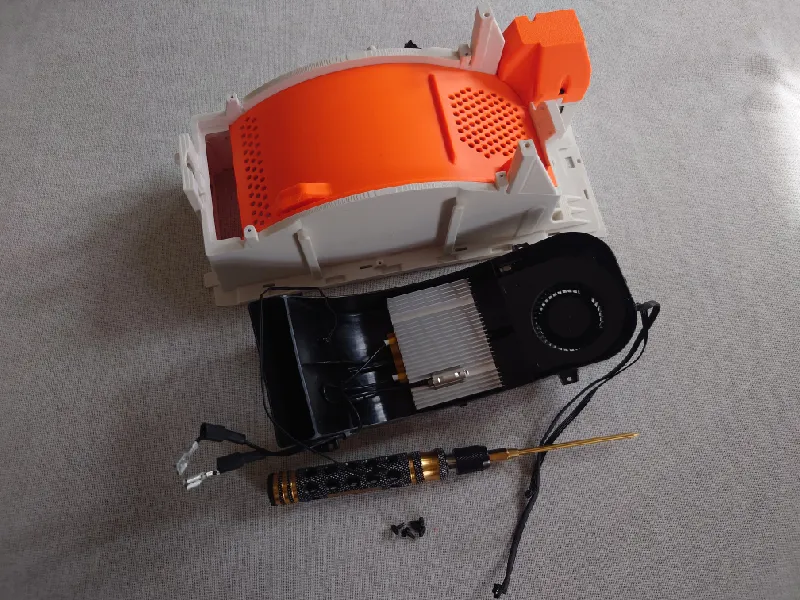

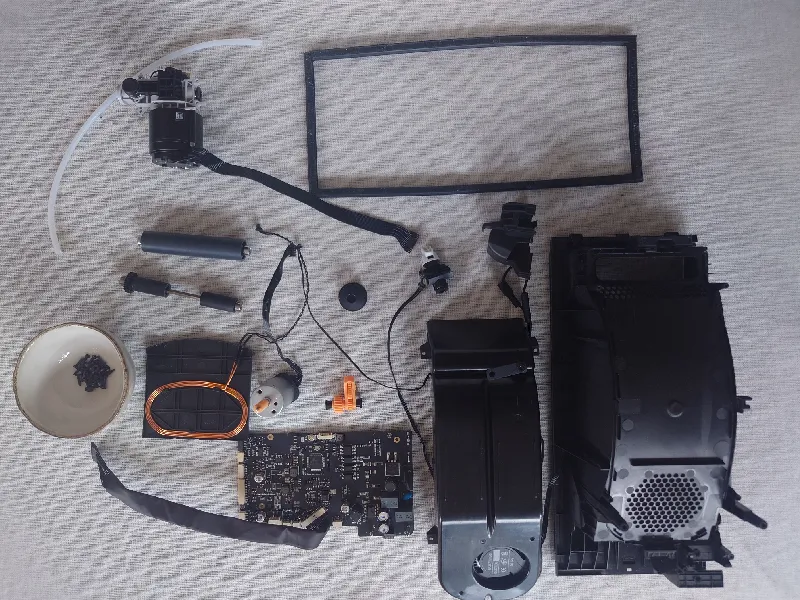

Once done, you should have all the parts as pictured below:

Floor

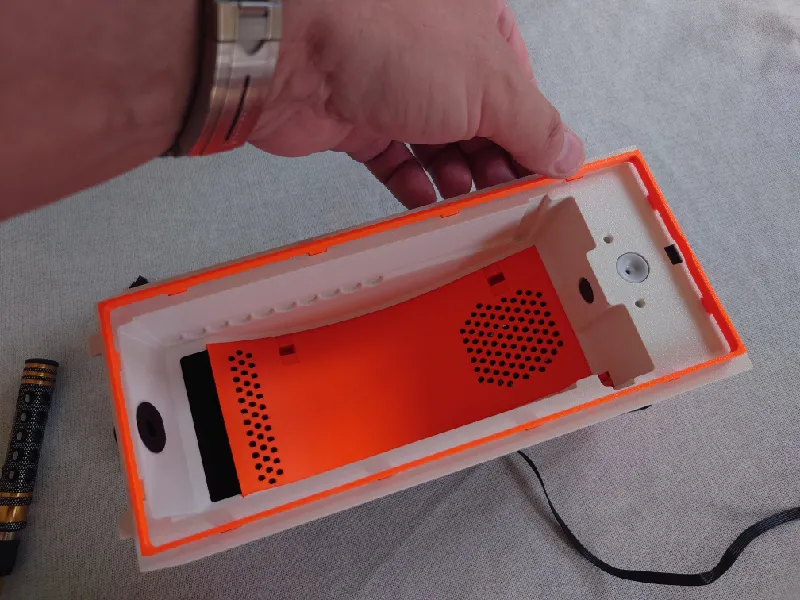

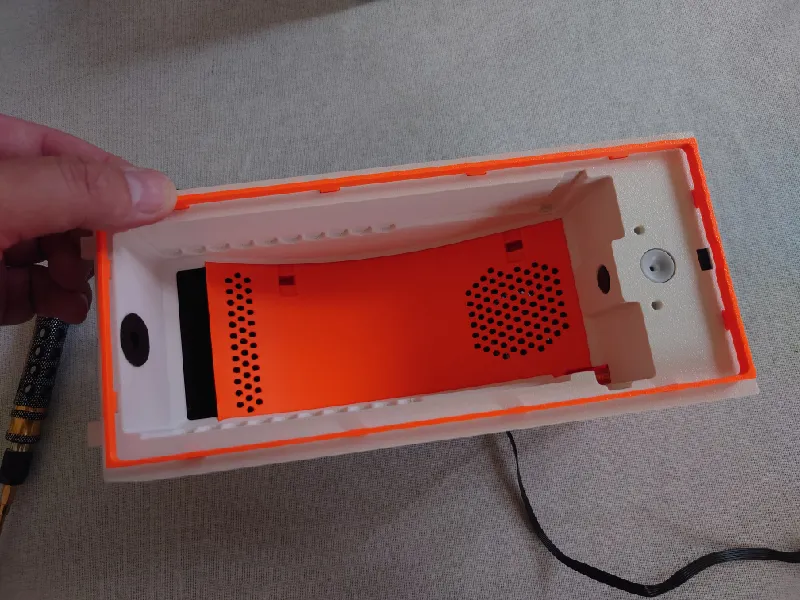

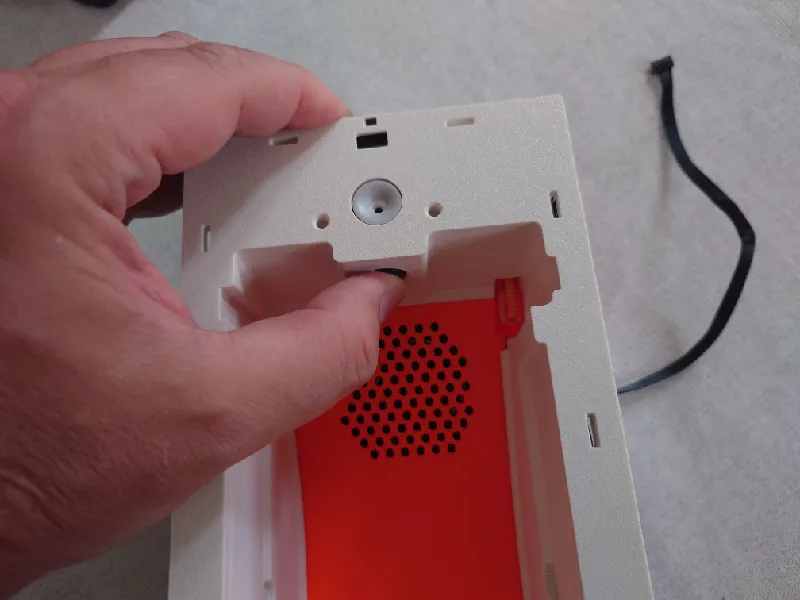

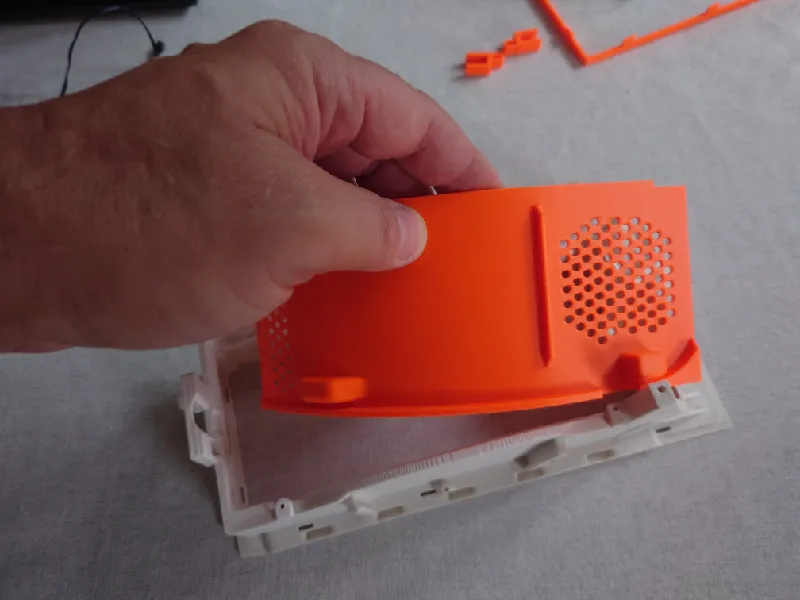

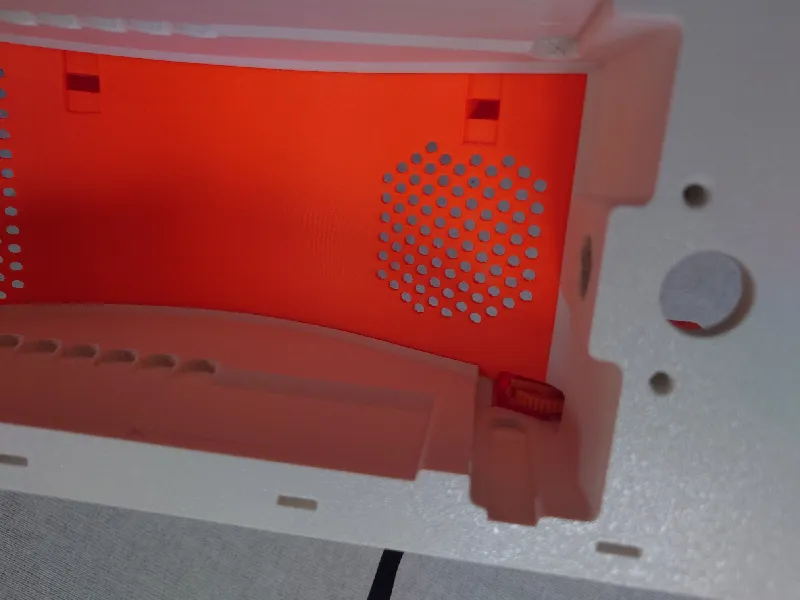

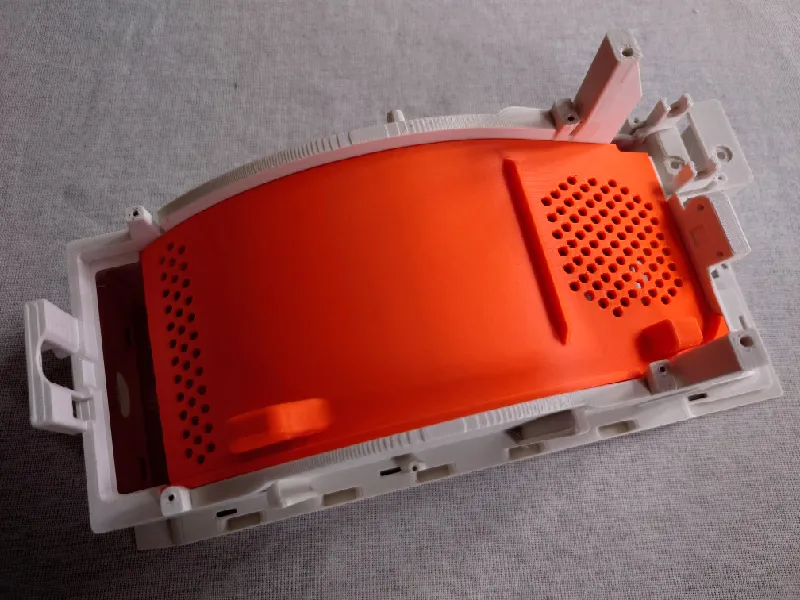

Start by placing the main part (in white here) flat to a surface. Install the floor (in orange here) in this direction, it presses in place against the ledge and is then locked in place using the actual heater.

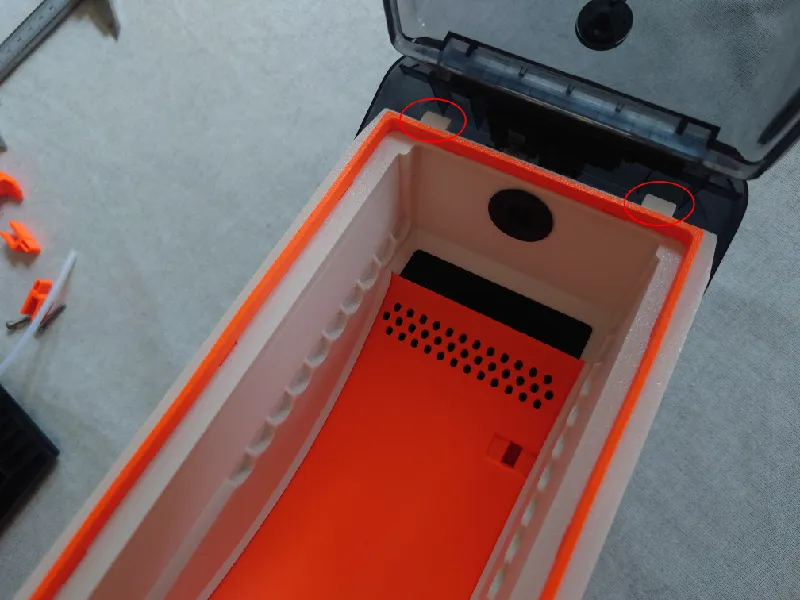

Tilt it as in the picture below and it should install easily. Take notice of the direction of the floor.

Do NOT install the heater yet, please follow the guide completely.

Filament Retraction Assembly

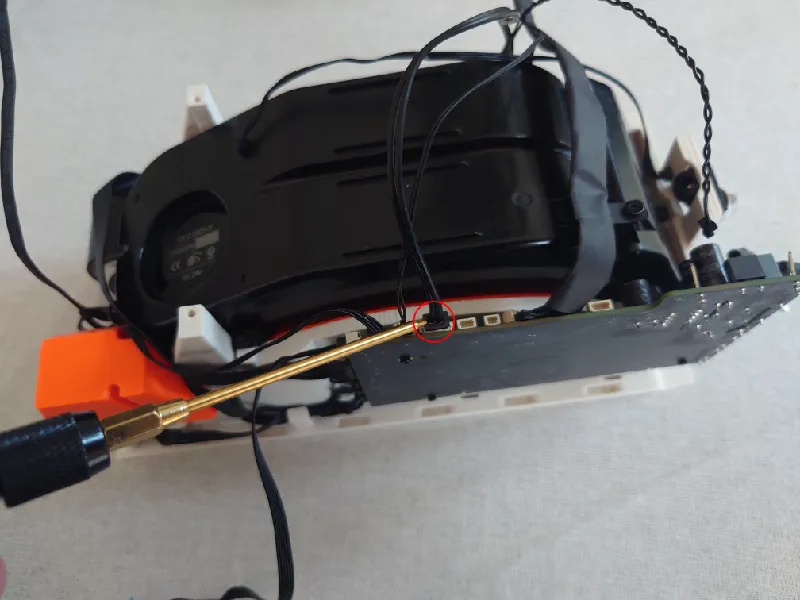

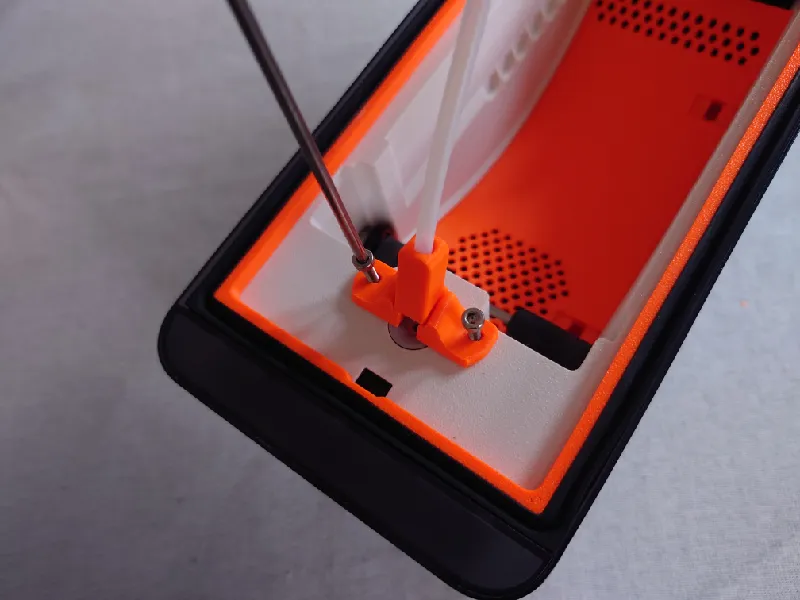

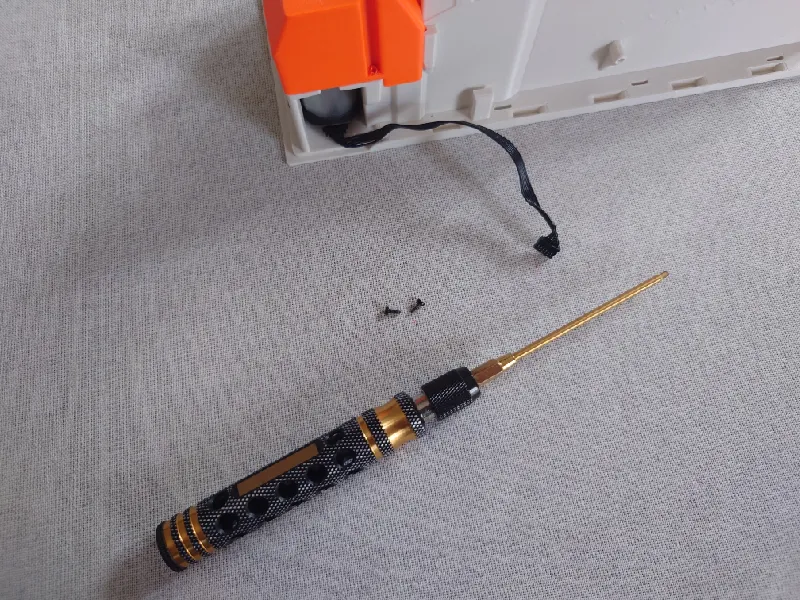

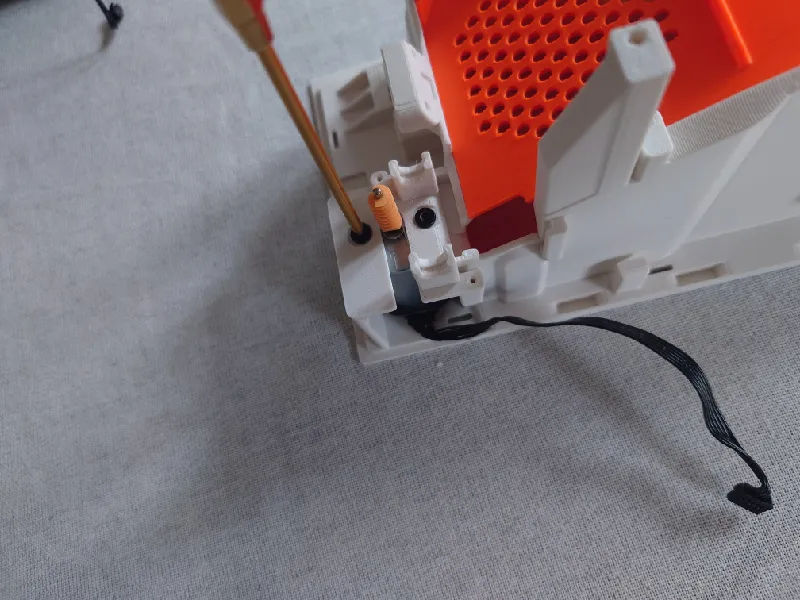

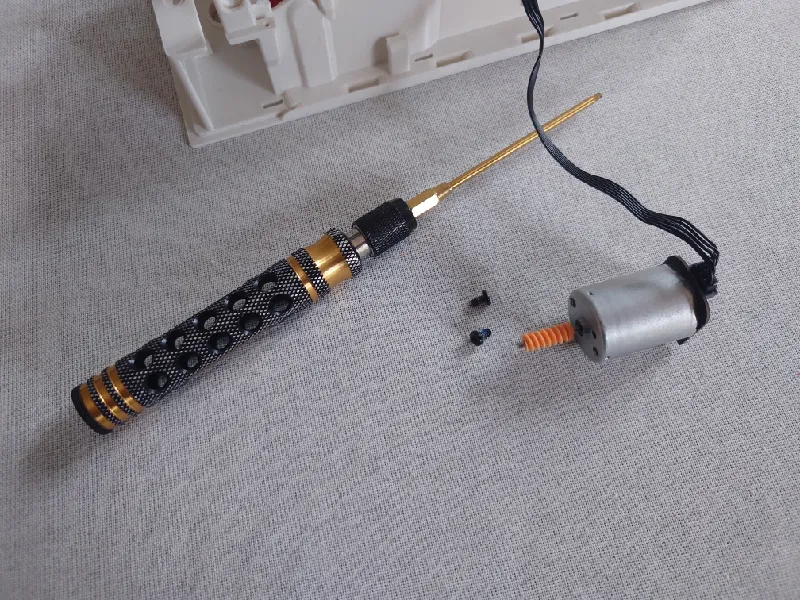

Use the two small screws (M3×5) and a hex tool. They're the shorter and thicker screws that have a wider head, acting sort of like a washer.

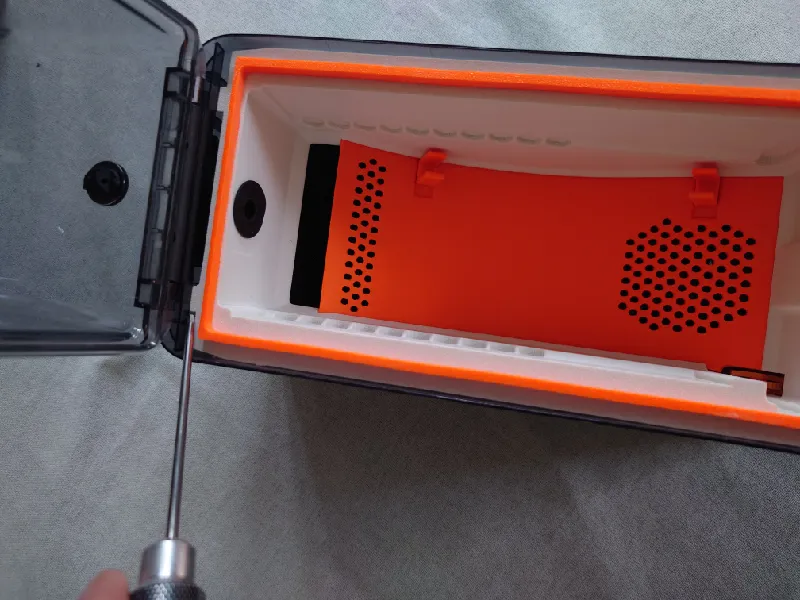

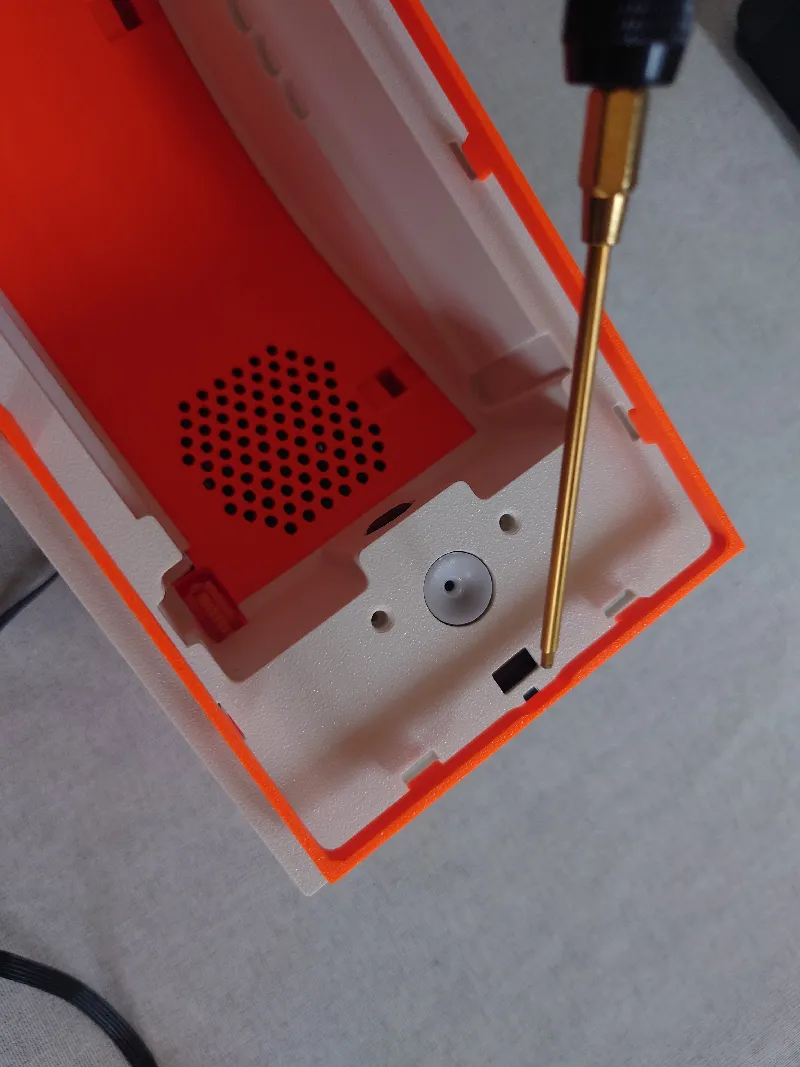

Make sure the housing is completely free of supports so the motor sits flat when you tighten.

Fully tighten it and make sure it sits flat.

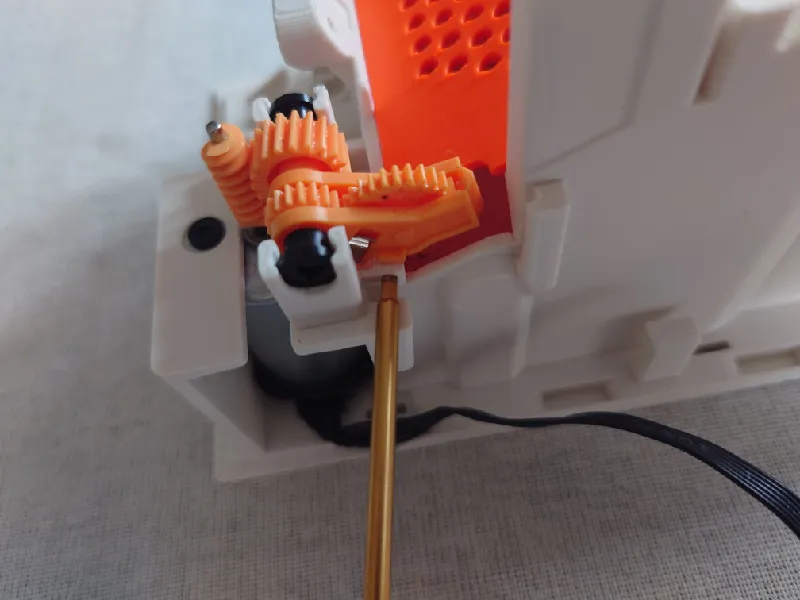

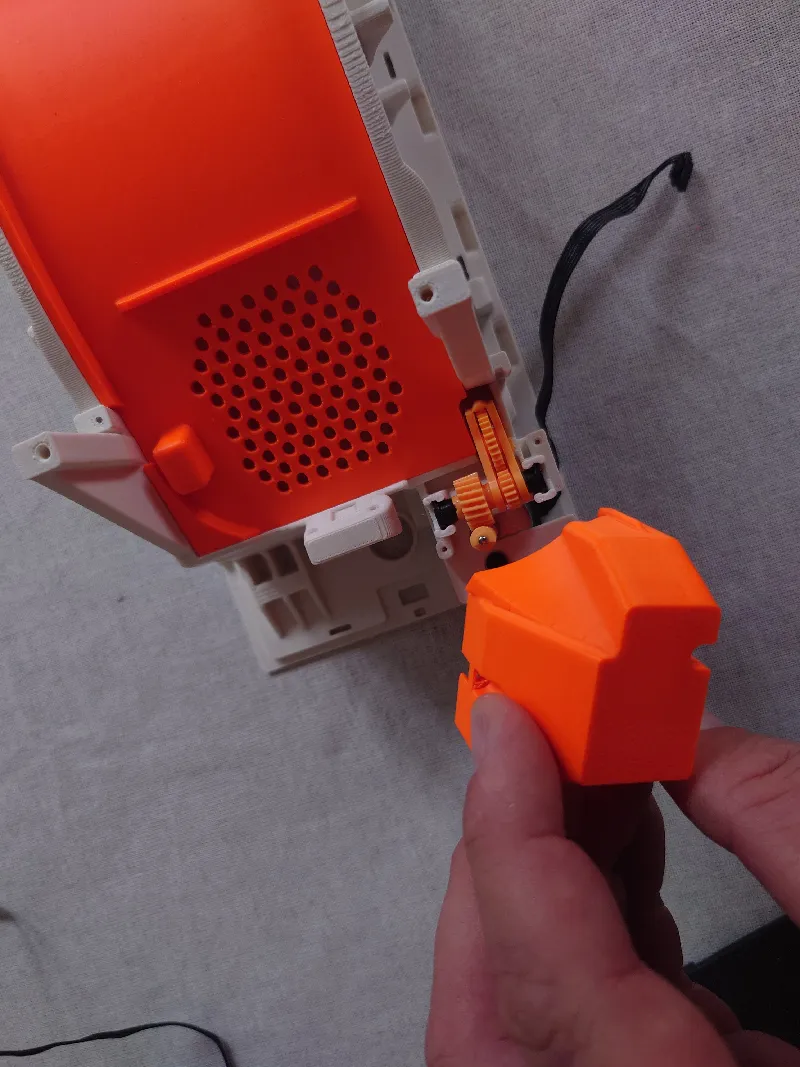

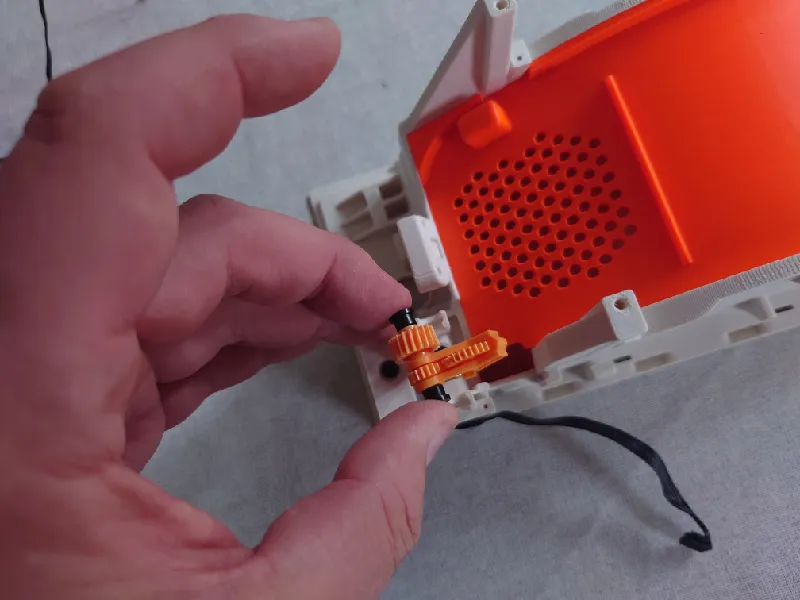

Place the retraction gear in this direction, take notice of the foldable gear location and ensure the black plastic “washers” are in place and correct.

Just press in the gear set and you're done.

When the filament is retracted, the motor activates to both fold down the gear (it hits a printed limiter as pictured) and also to drive the final gear, which in turn rotate the filament spool.

Important! It's tempting to install the heater now but to make space for everything you must install the cover (orange here) for the gear set first as it partially sits below the heater.

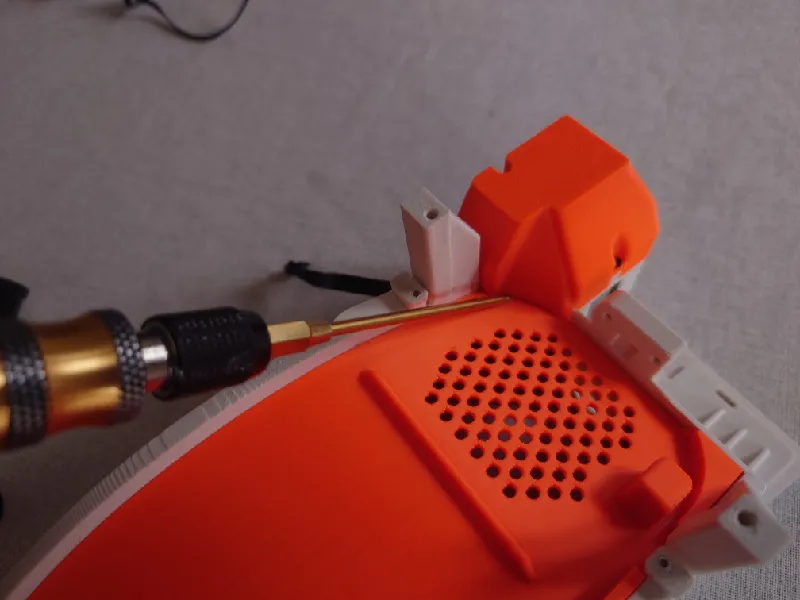

Install the cover using two (BT2×5) screws.

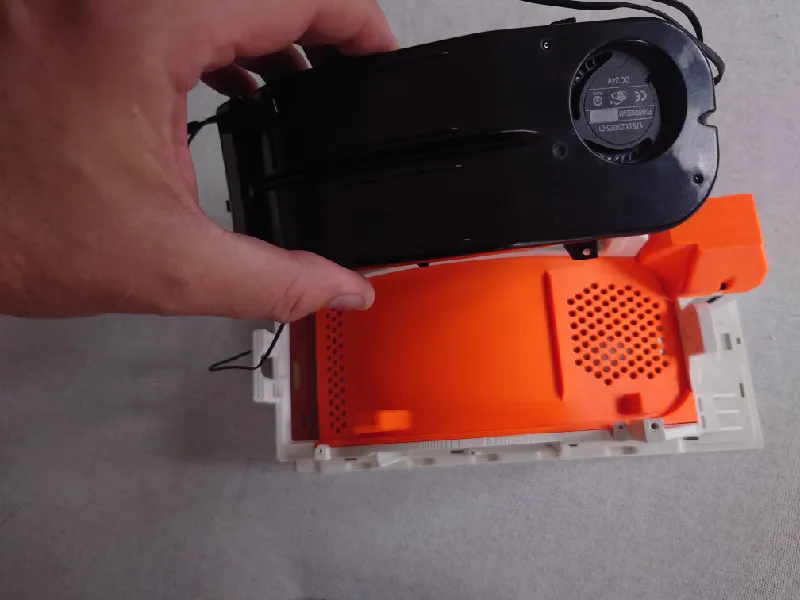

The heater will sit above a portion of the retraction gear cover pictured here, it's why it must be installed after the cover. :)

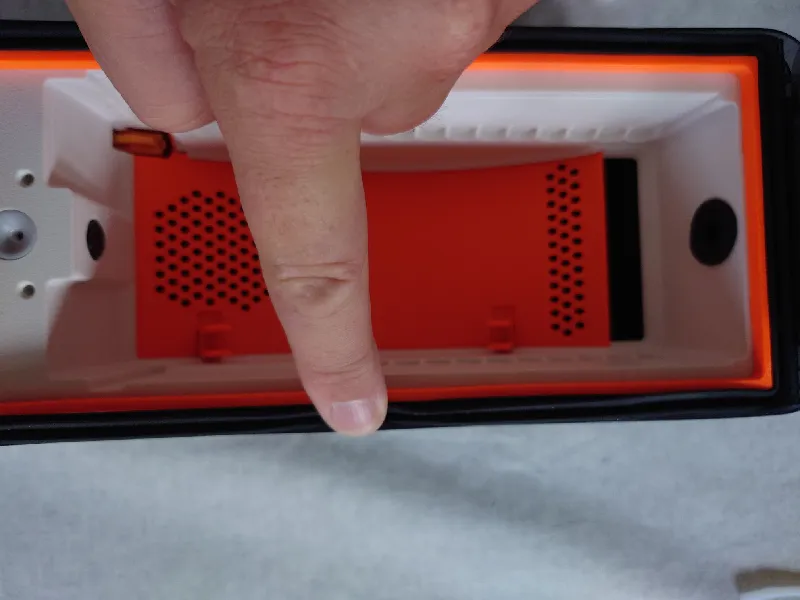

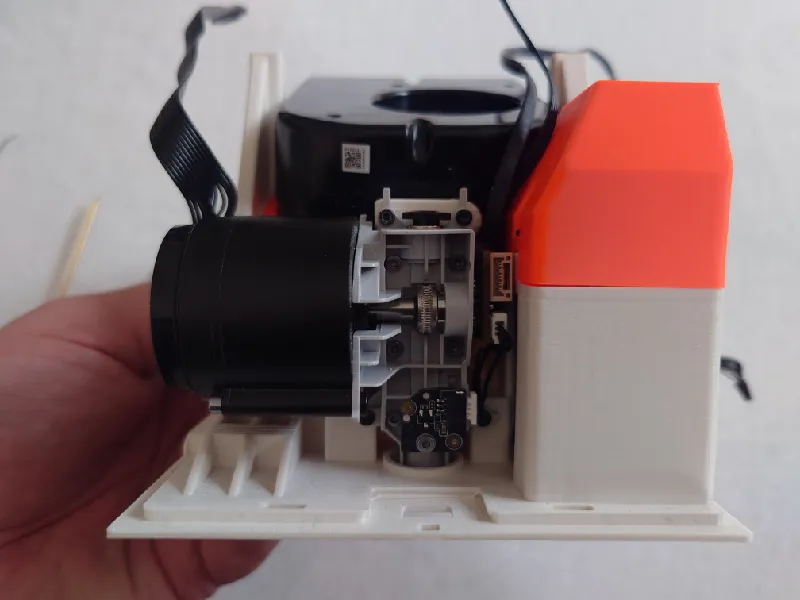

Now if you flip it over you should see the retraction gear placed neatly inside the Hydra AMS HT.

Heater

Once the floor, retraction assembly gear cover are installed, continue with the heater. You need the heater and the four stock screws (BT2×6), they're the screws with a little wider flat top.

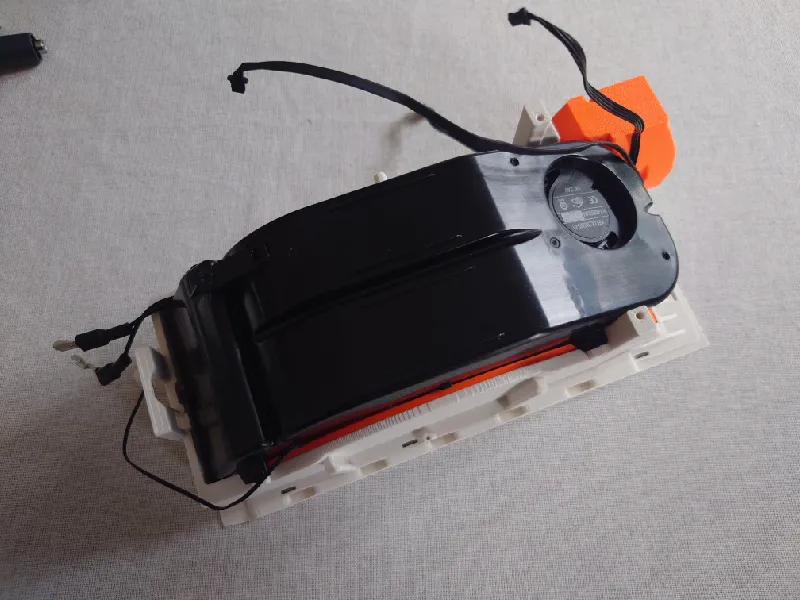

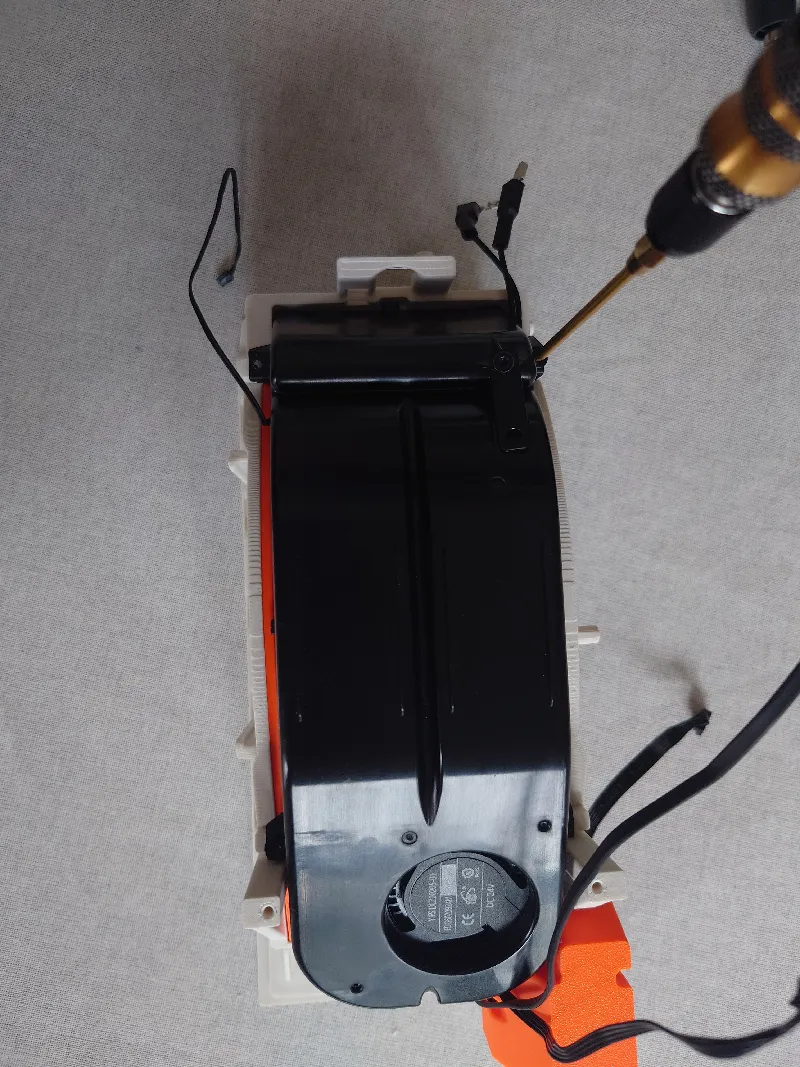

The heater installs in this direction.

Get the heater below this tab in the rear first when folding it down.

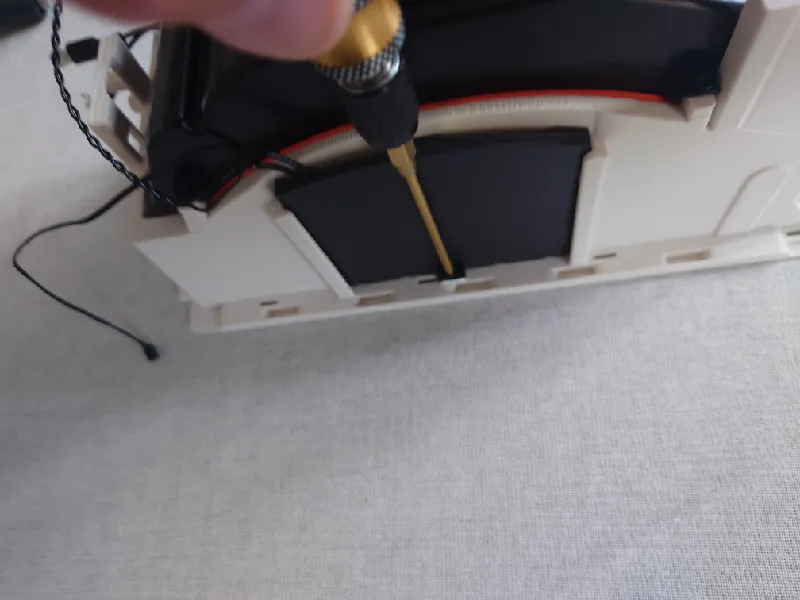

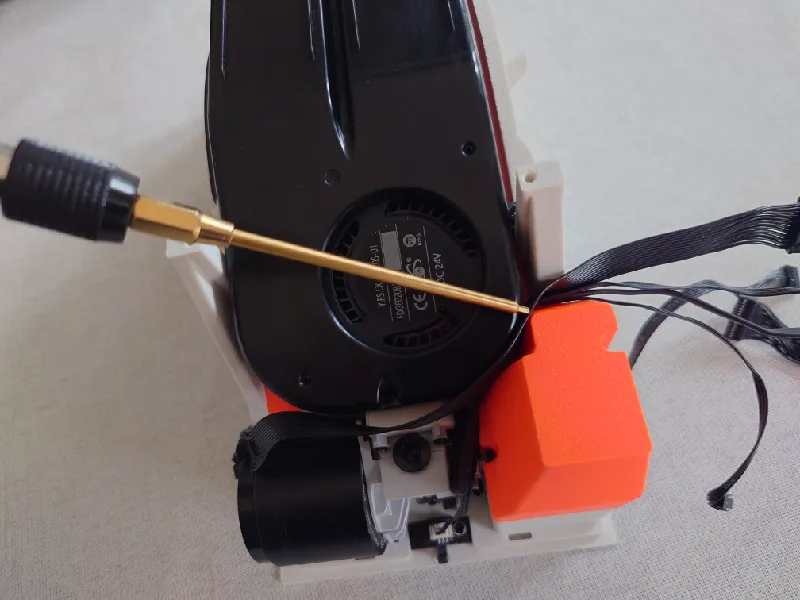

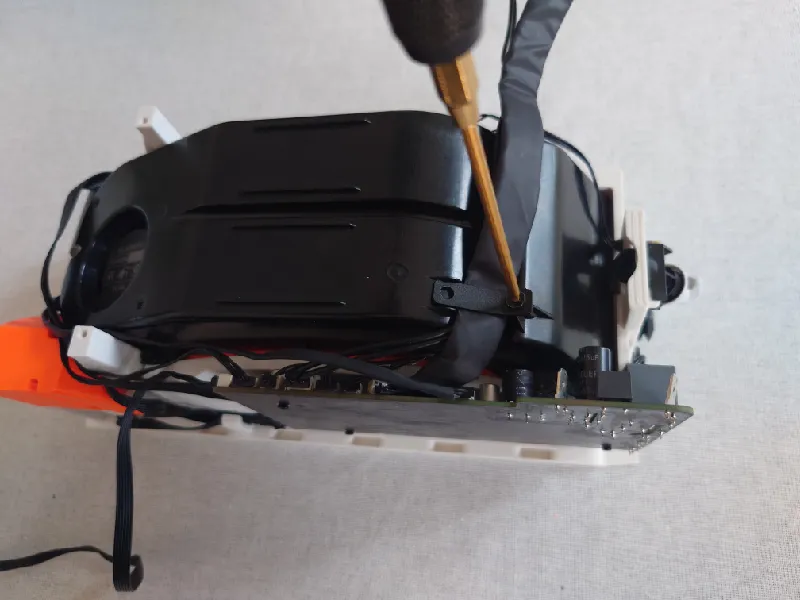

Then press down the heater against the floor and tighten the four screws as the same time.

Careful to not overtighten as you could rip off the columns holding the heater!

Heater in place.

RFID Coil

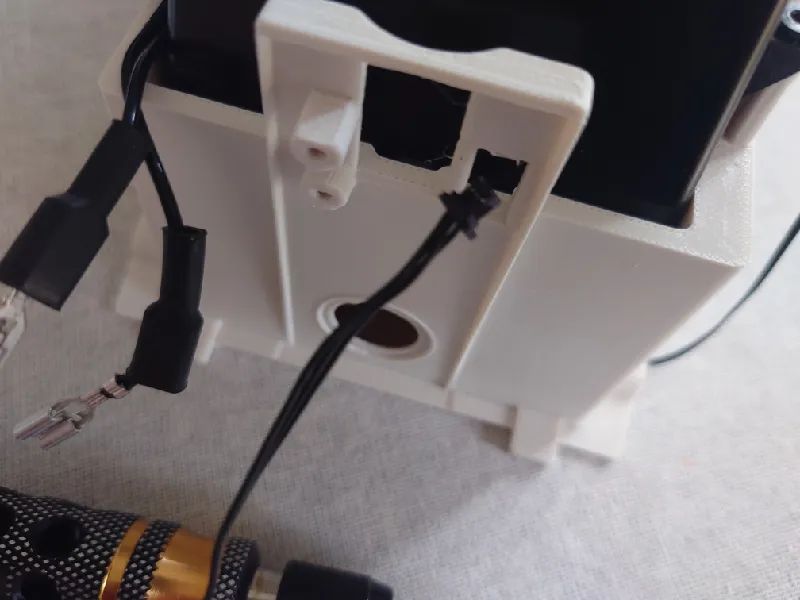

The RFID Coil sits in a plastic casing. It installs in a slot and is secured with a single screw in the middle. (BT2×5)

Feeder Hall Sensor Assembly

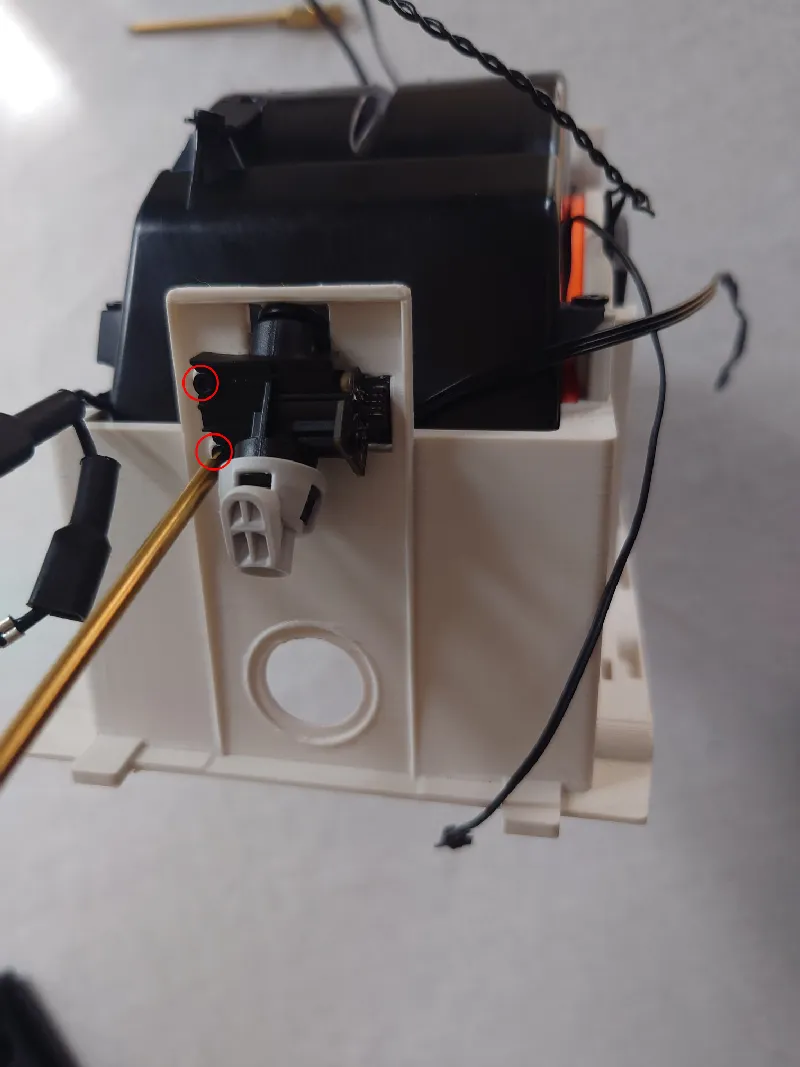

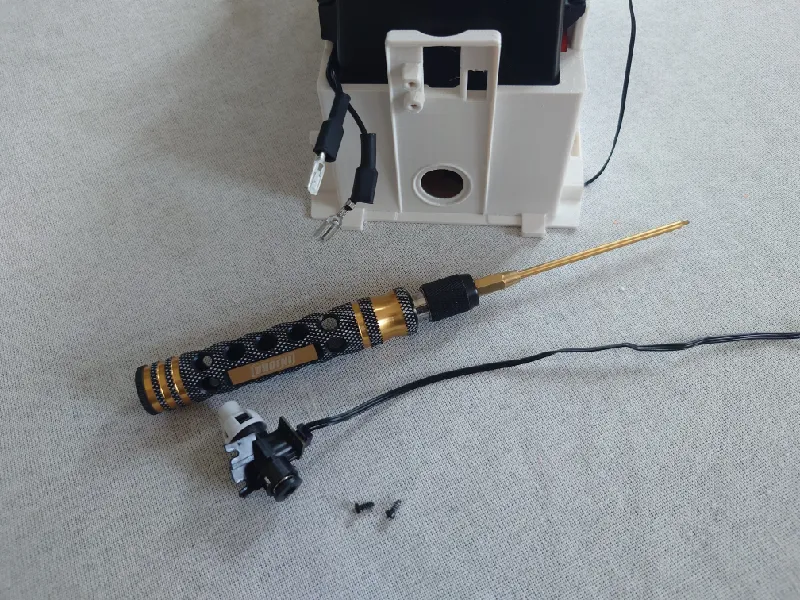

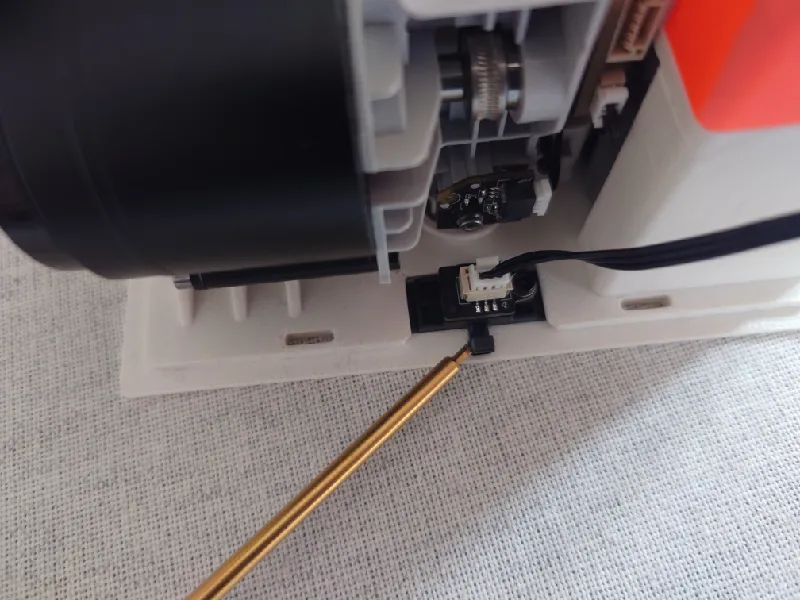

This is a small assembly with a hall sensor, detecting the filament. It installs using two screws. (BT2×5)

Begin by guide the cable through the slot.

Then install the two small screws, securing the assembly in place. By the way, the grey plastic casing you see here is what you press on through the rubber button on the rear of the AMS HT to release the PTFE tube going to your printer.

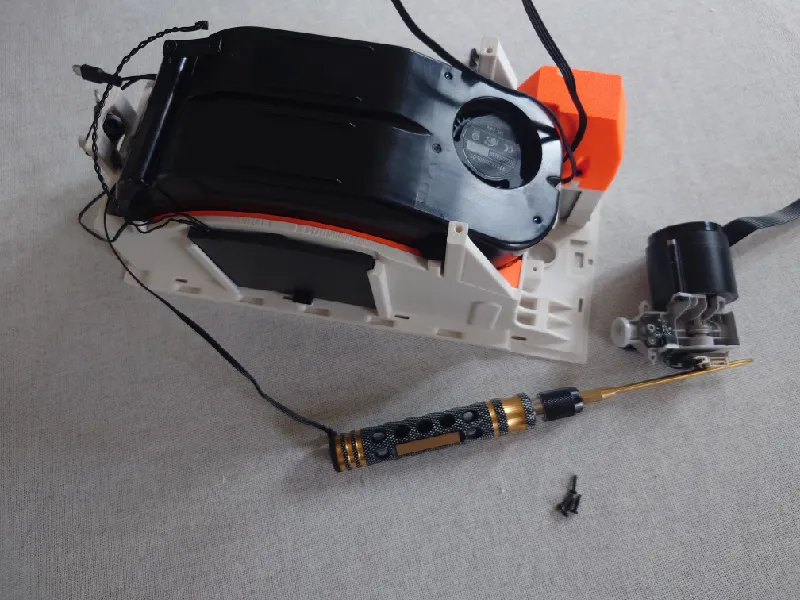

Feeder Unit

The feeder unit attaches to the main body using four (M2.5×8) stock screws.

First, guide the feeder unit's ceramic filament entry through the round cutout (bottom of this picture) then tilt it back and you can install the four screws.

Proceed to tighten the four screws as pictured.

Rubber Gasket

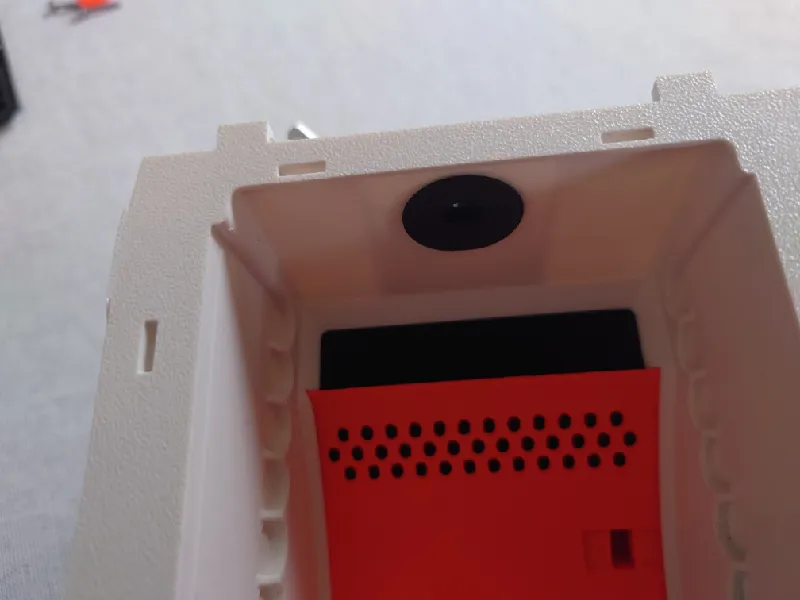

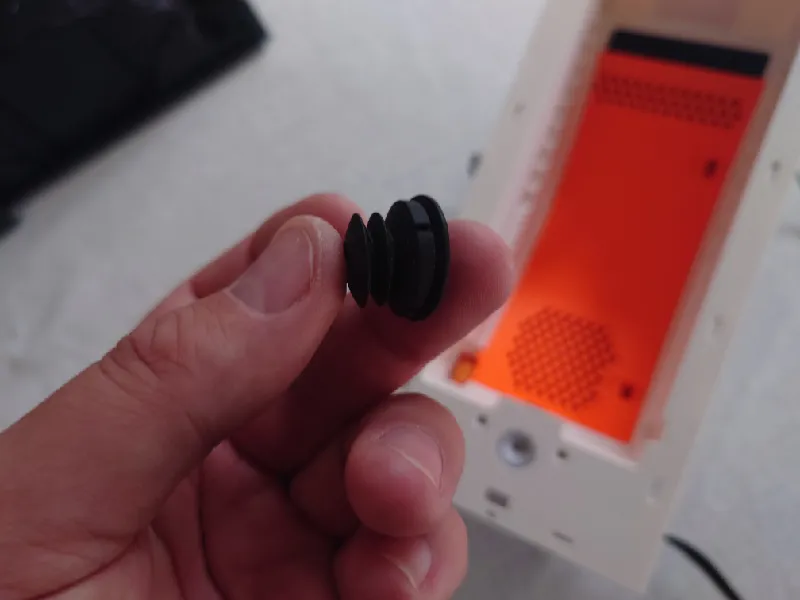

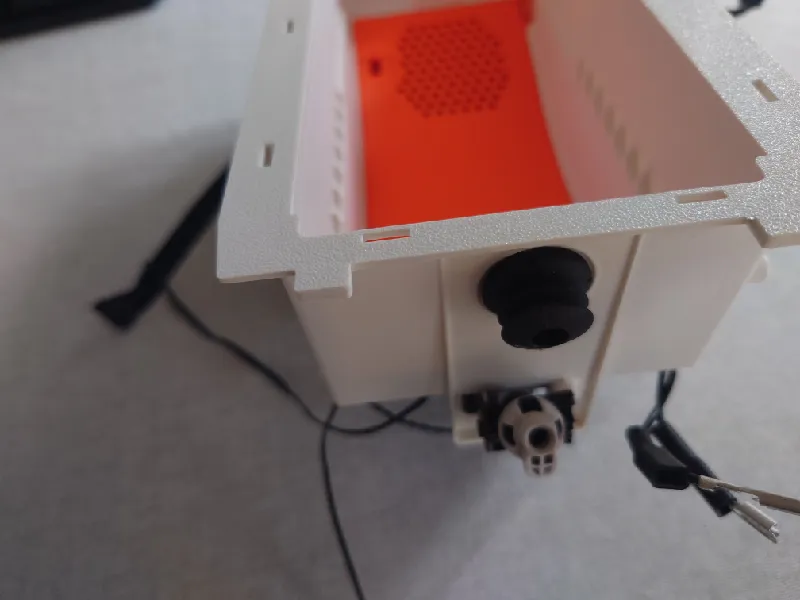

This little rubber gasket is to provide a seal between the AMS internals and the outside of the AMS HT box.

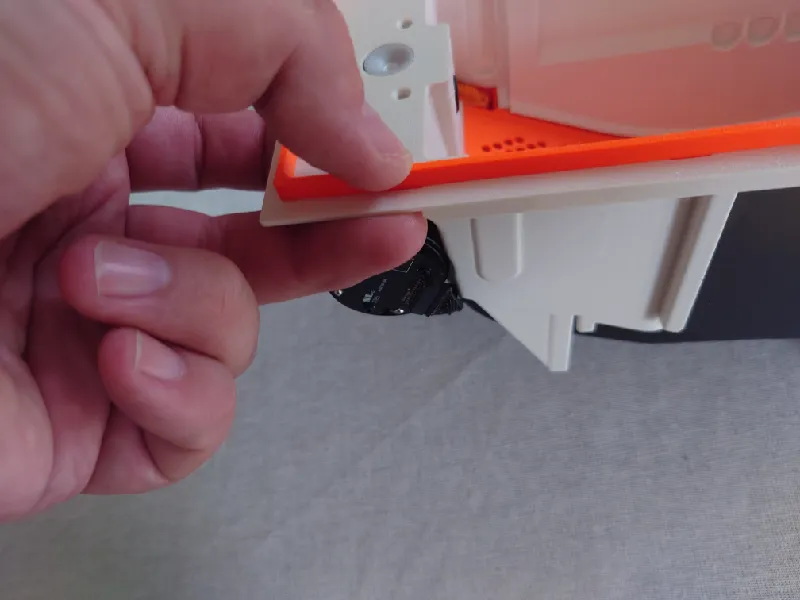

Just press it in the place in this cutout of the rear, you may need to pull on it a little and rotate it so it goes into the cutout slot.

It should then sit flat as pictured.

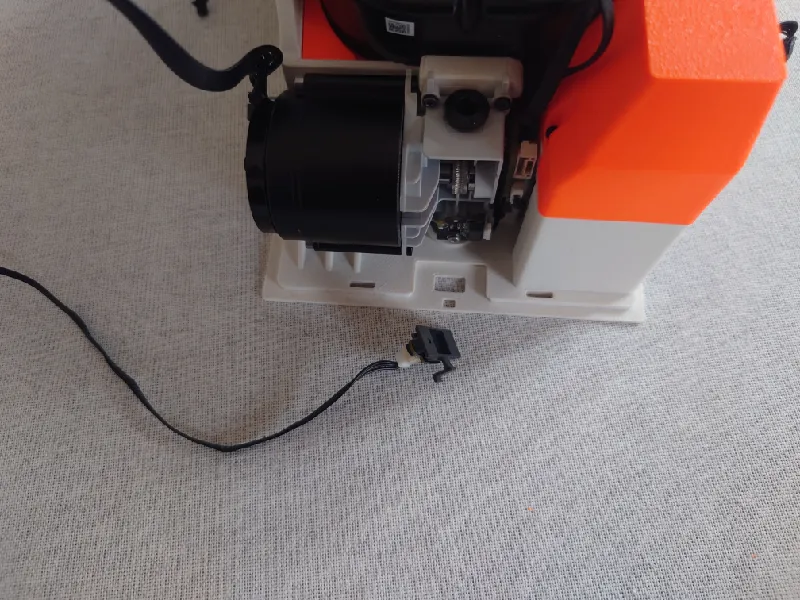

Lid Status Hall Sensor

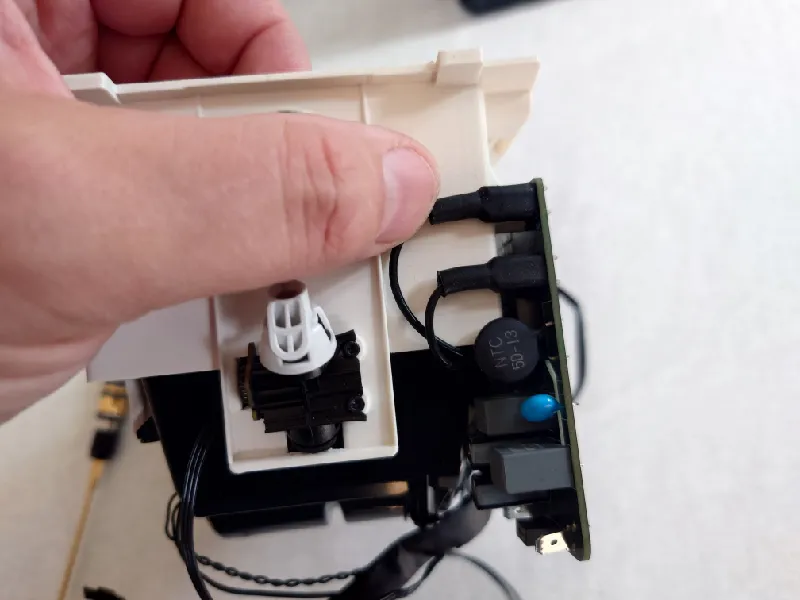

This sensor detects when the lid is open/closed and it installs by a combination of press fit and a locking tab.

Just slide it in and this little tab (pictured) will lock it in place.

Main Board and Cables

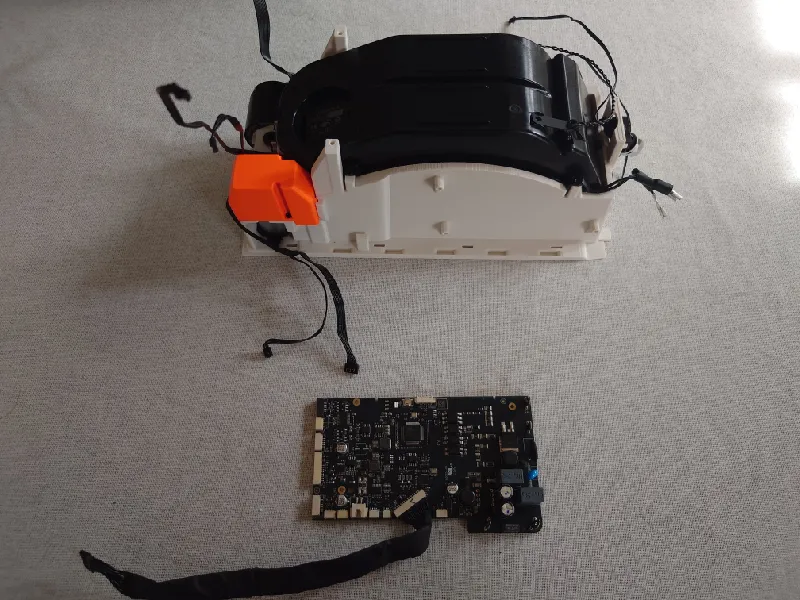

The main board installs using three stock screws. I recommend you connect all the cables before you screw the board to the main Hydra AMS HT casing.

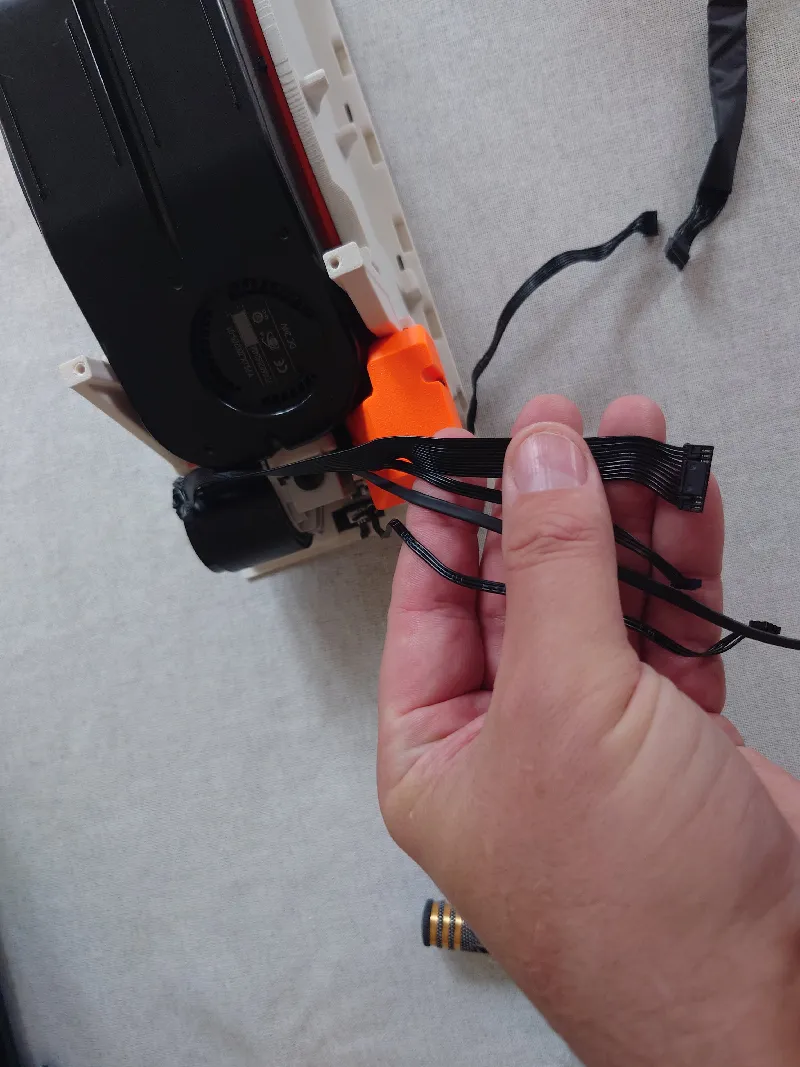

Begin with the cables from the motor, heater and lid sensor, guide them in the small slot between the heater and the gear cover (in orange here).

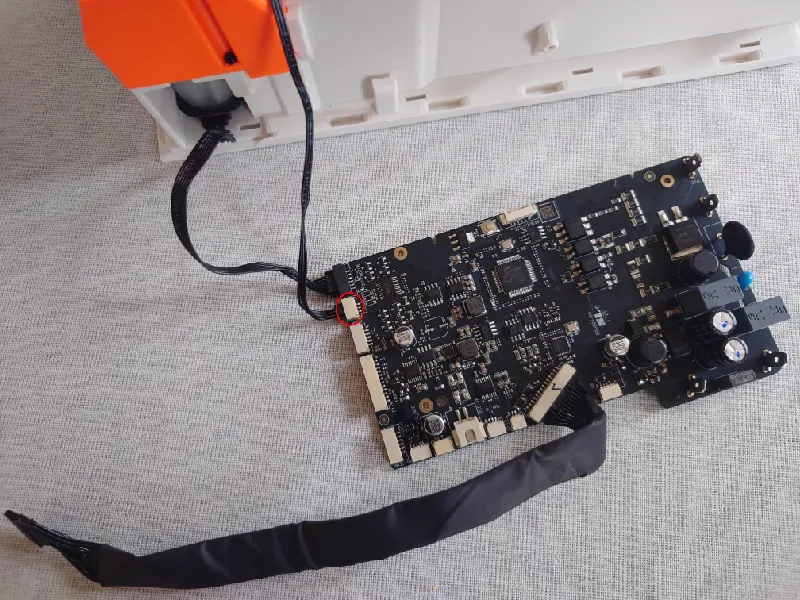

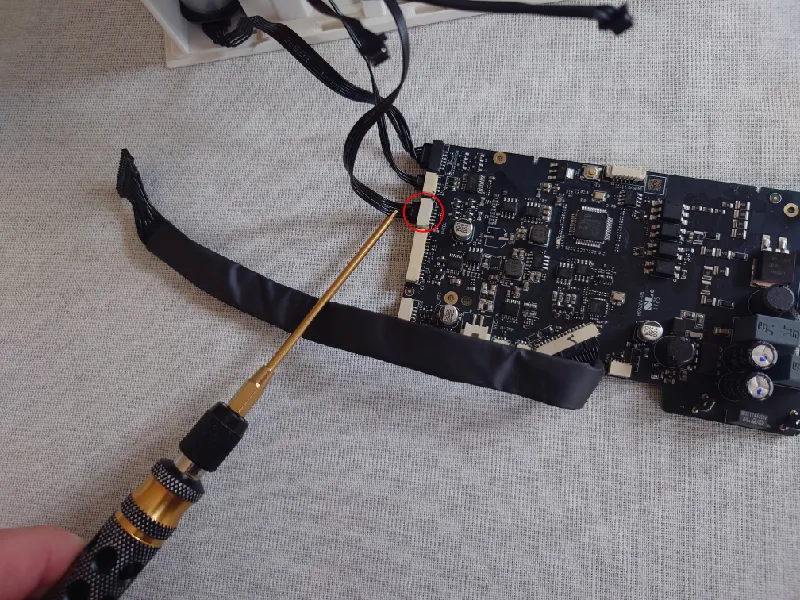

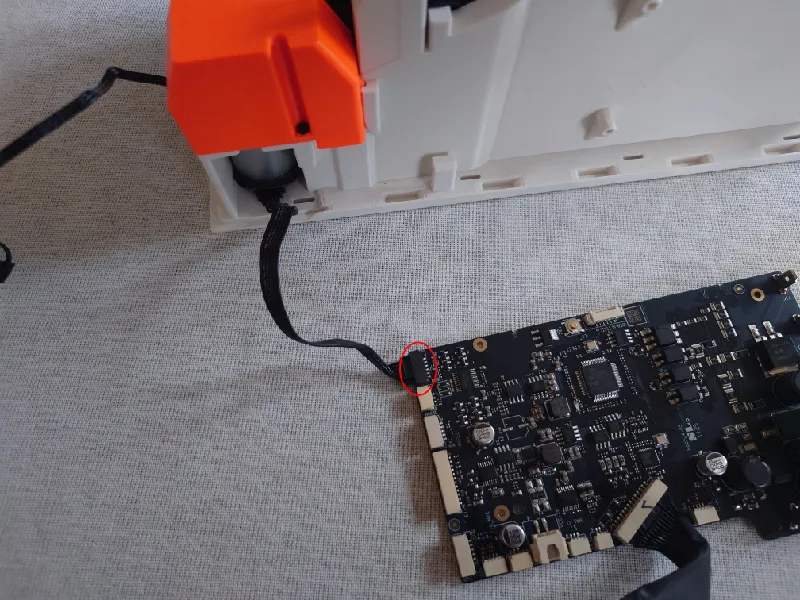

First, connect the cable from the filament retraction motor here:

Connect the cable from the lid sensor here:

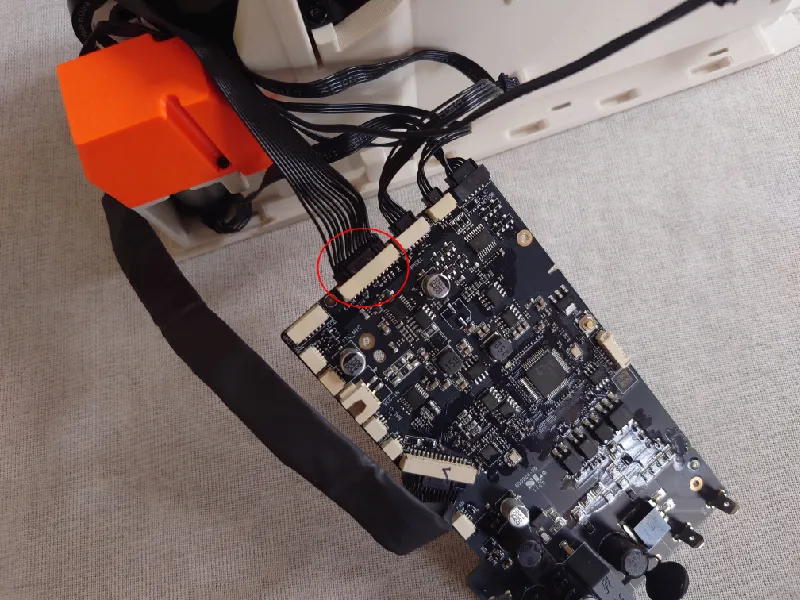

Next up is the narrower cable from the Feeder Unit, it's from the odometer board on it. Connect it here:

Next up is the wider cable from the Feeder Unit, it's from its motor.

Now you'll also notice it's difficult to get the cables to reach without lifting the board so now it's time to attach it to the to the main Hydra AMS HT casing. But that's no problem as the rest of the cables can be plugged in with the board in place.

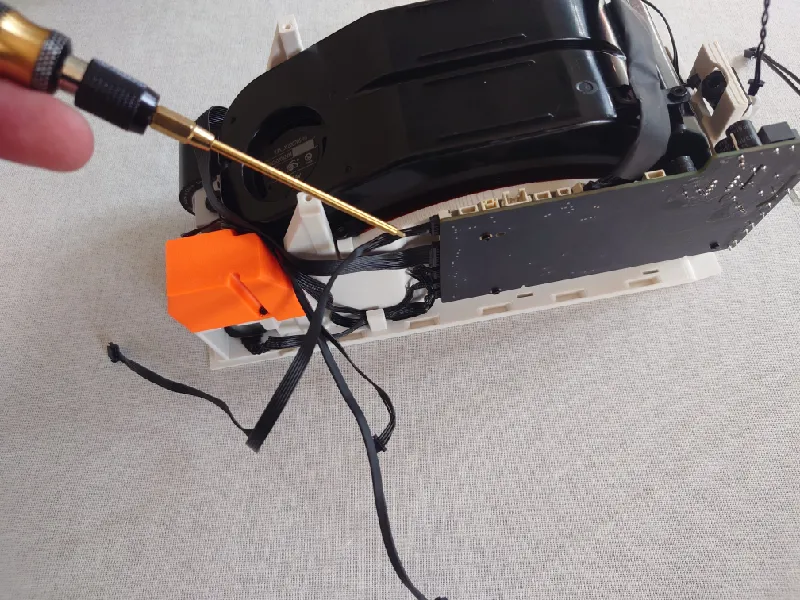

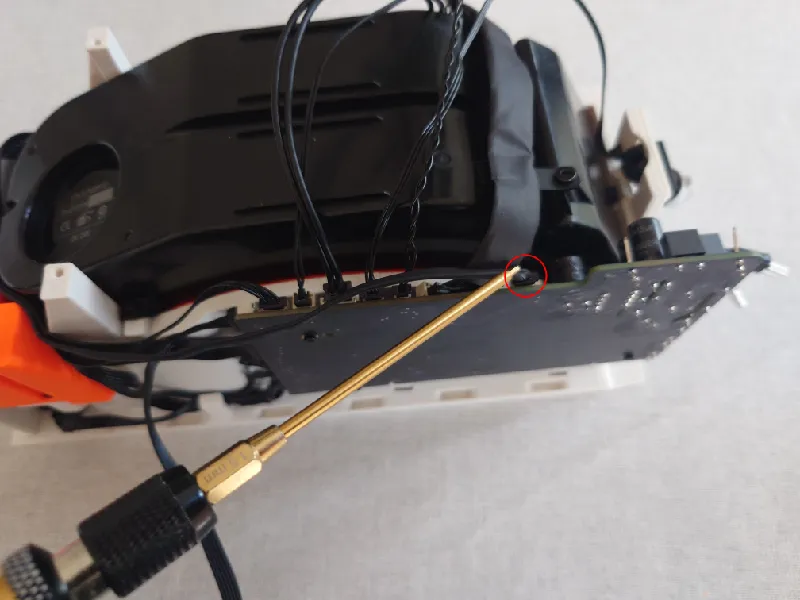

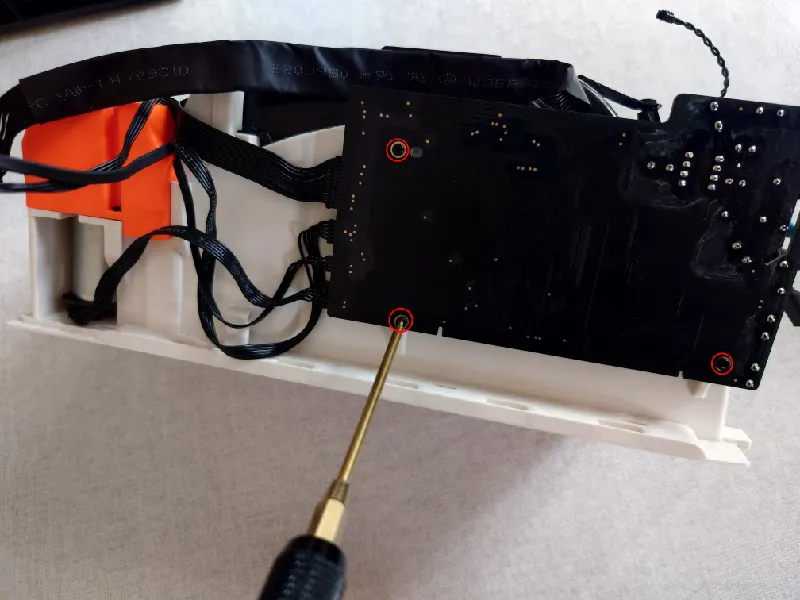

Screw the mainboard in place using three stock screws (BT2×5), locations marked in red:

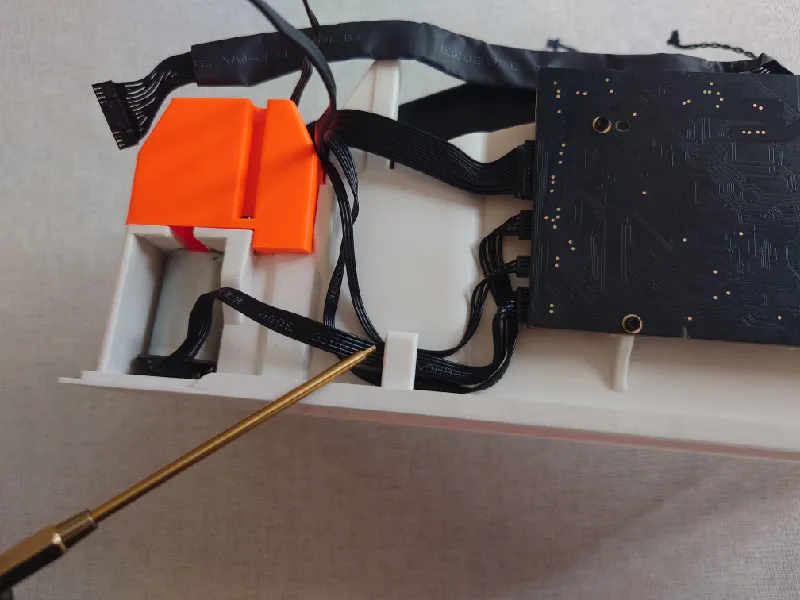

Organize the cables you've connected so far behind this tab.

If you happened to remove the cable from the AMS HT screen during disassembly, connect it here:

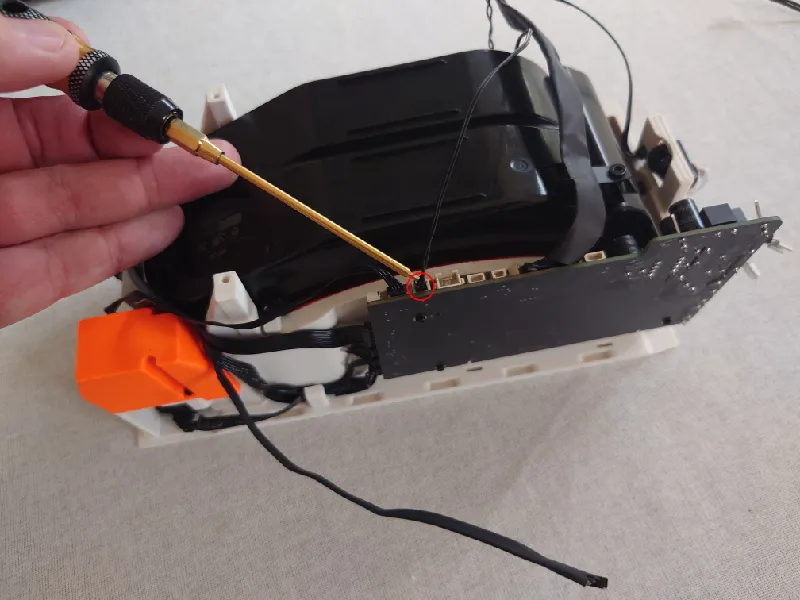

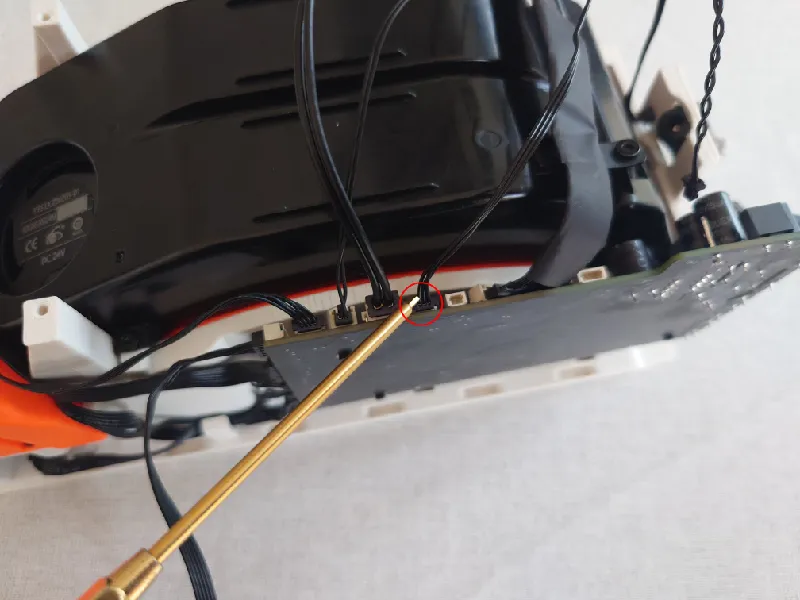

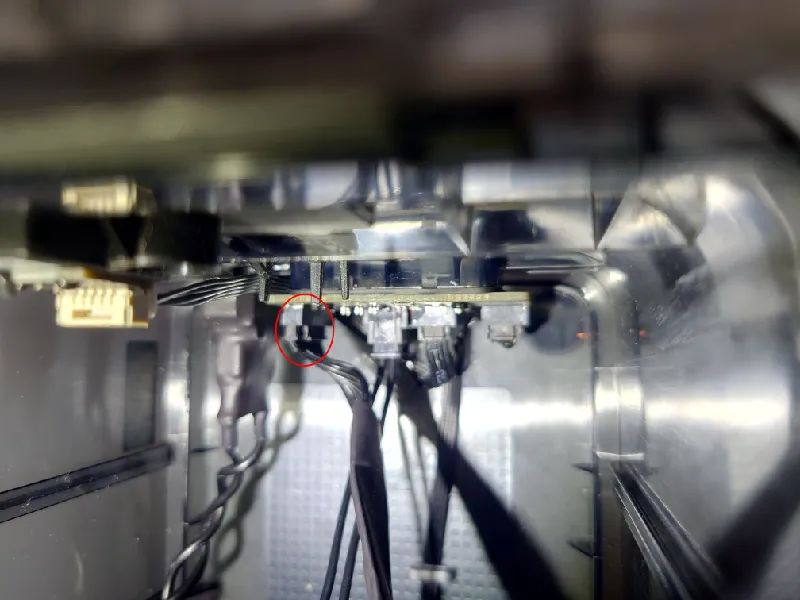

Connect the first cable from the heater here, it's for the temp and humidity sensor:

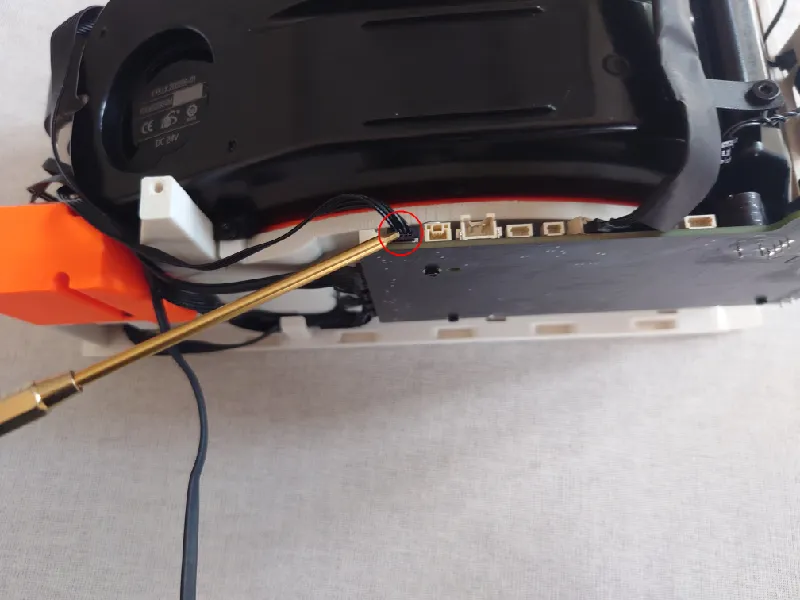

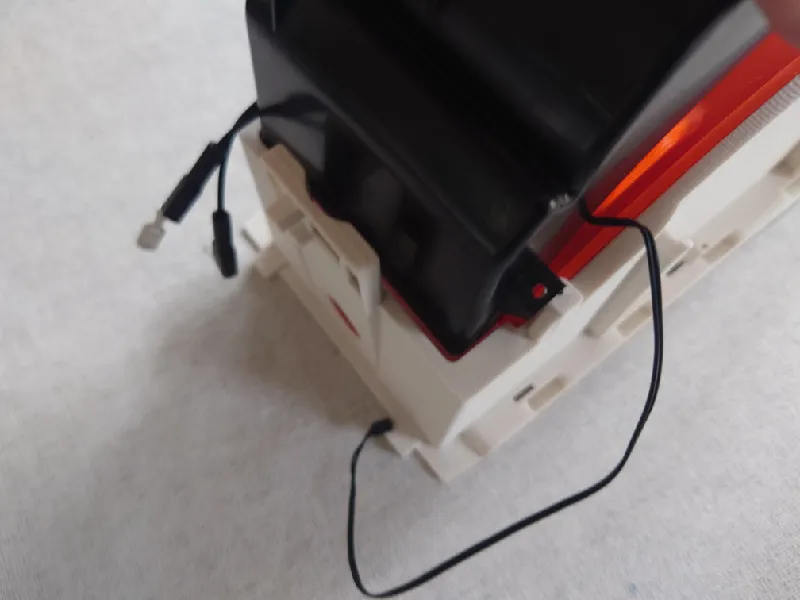

Next up is the small 2-pin connector from the heater, it's the thermistor cable, it's keeping track of the heater's temperature. It connects here:

Now we connect the mainboard power here, it's the one with a larger socket (2-pin cable):

Connect the feeder hall sensor cable here:

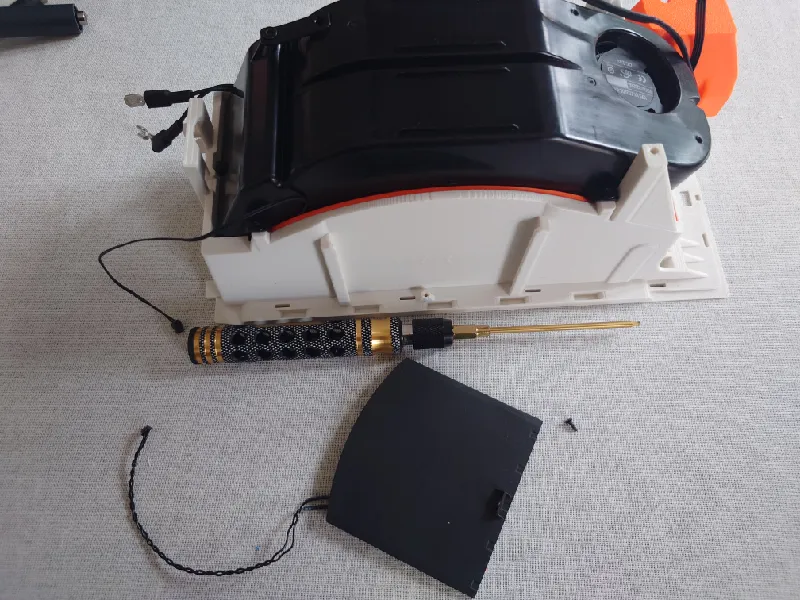

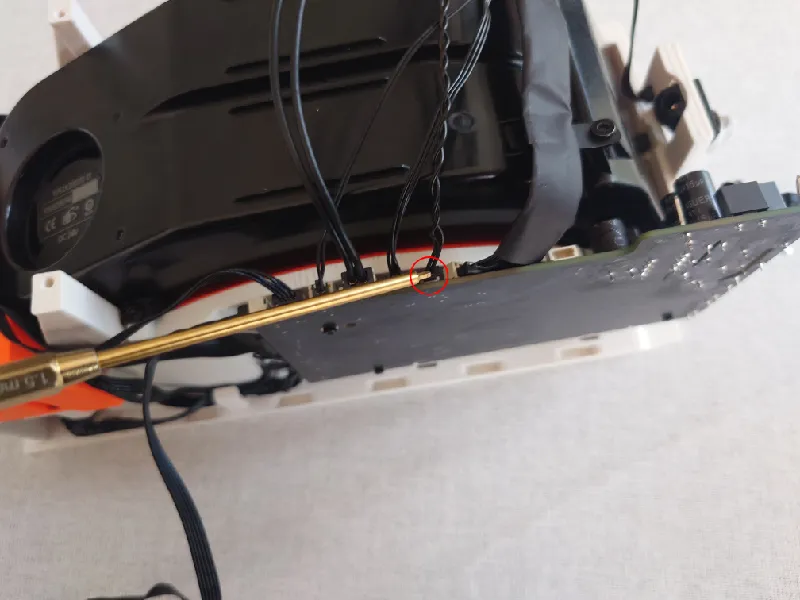

Next to it, we connect the RFID coil, it's the thin twisted 2-pin cable:

The fan from the heater connect here:

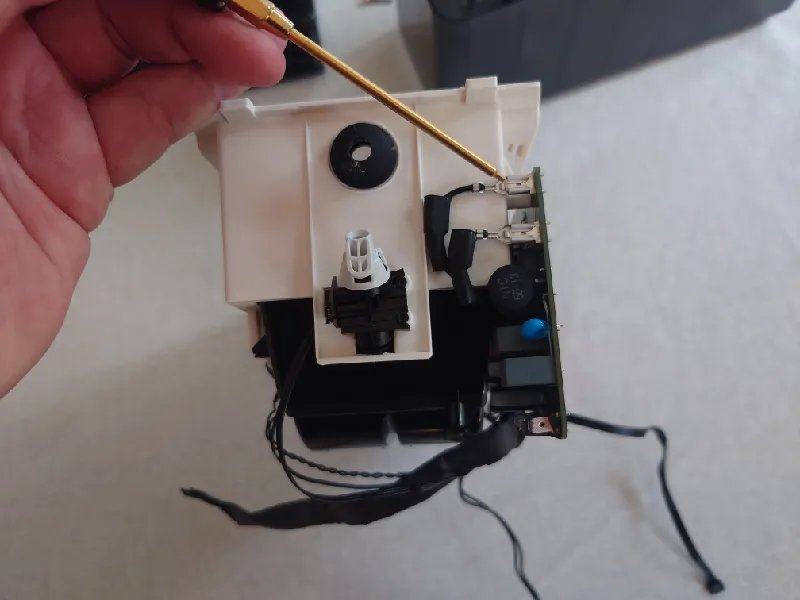

Next up is connecting the two heater cables.

The polarity doesn't matter so connect either one to top or bottom.

Don't forget to slide over the insulation sleeves.

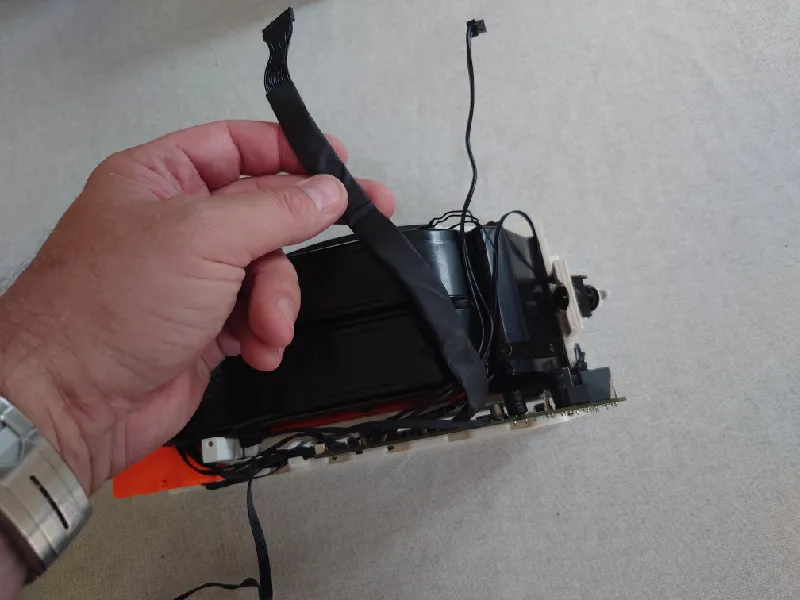

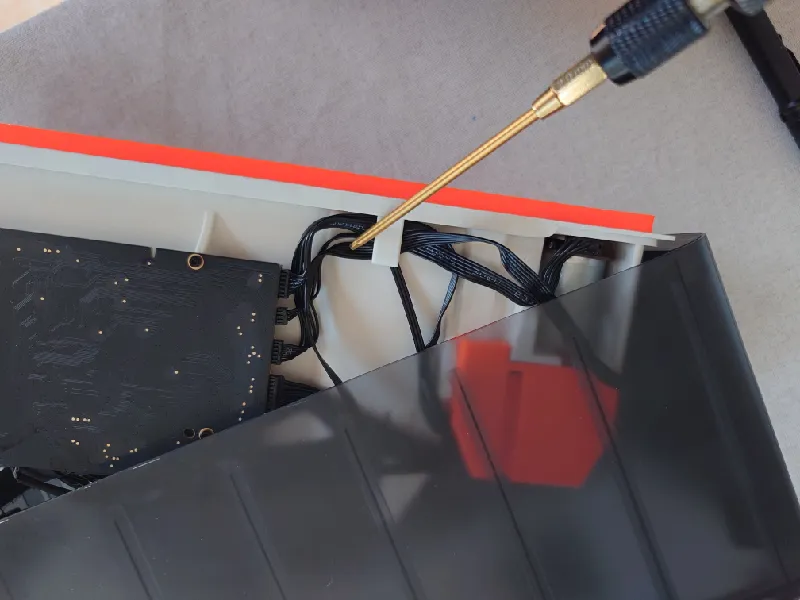

Next, guide the wide ribbon cable from the main board below the slot of the heater, along with the other thinner wires coming from the mainboard.

Place the small cables on the bottom against the heater and the wide ribbon cable on top. Then tighten the small screw with the bracket.

Internal PTFE Tube

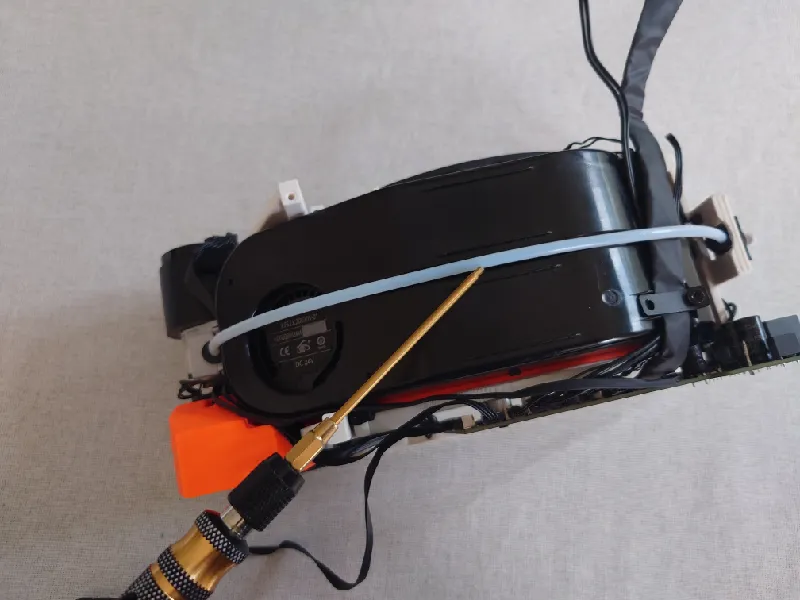

Almost done. Press in the internal PTFE tube between the feeder unit and outlet.

Flip it over and confirm that the filament release button work as intended. You have to press it quite hard, it's normal and just as the stock operation.

Seal Divider

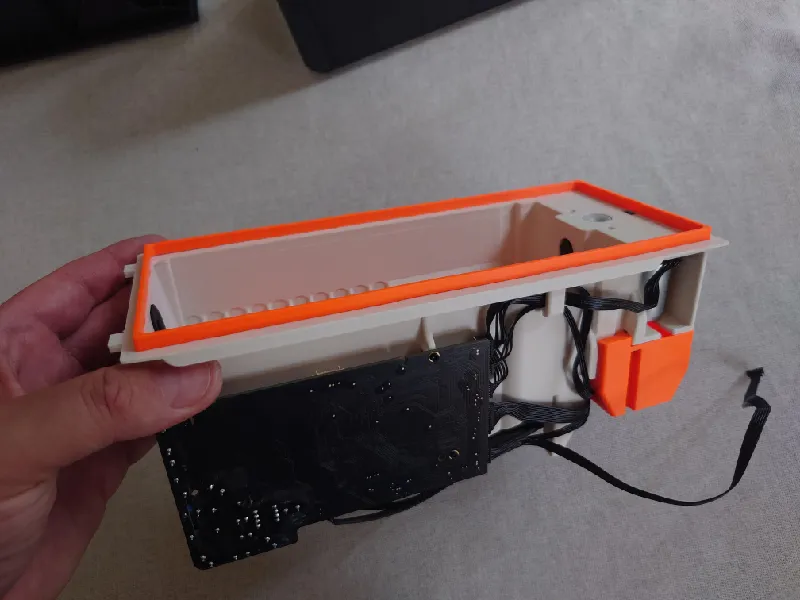

The purpose of the seal divider is to keep the lid gasket in place and so it stays centered between the Hydra AMS HT printed parts and the actual AMS HT box.

Align it in this position, with the small section that's a little thinner on the end with the filament entry.

Next, press down the seal divider evenly across all cutouts. The tabs are quite thin but if you break one it's no worry but if you happen to break too many it's best to print a new seal divider and install it during this step. Just be careful and you shouldn't break any tabs.

Once the seal divider sits flush everywhere it's quite strong.

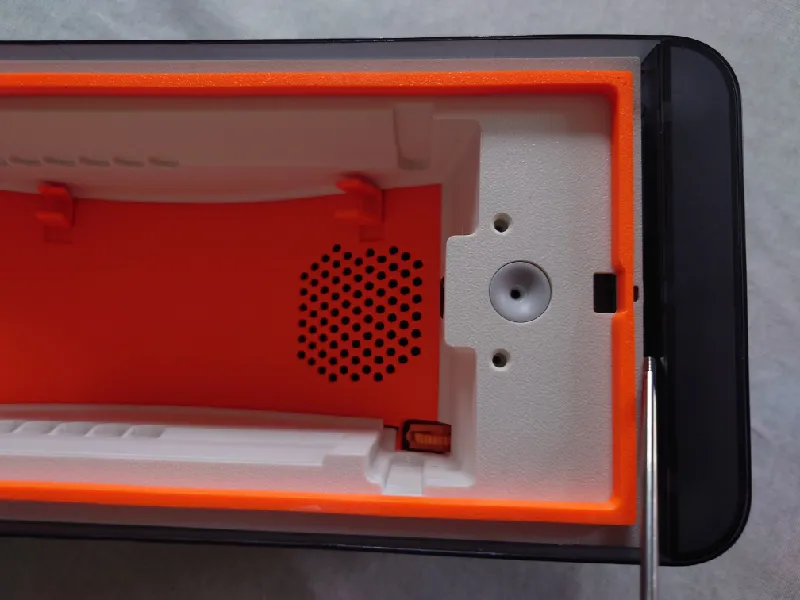

Install Hydra AMS HT in the box

Now we're nearly there, just need to install the whole assembly in the box. I find it's best to rest the assembly on the edge while connecting everything but do what you find is easiest.

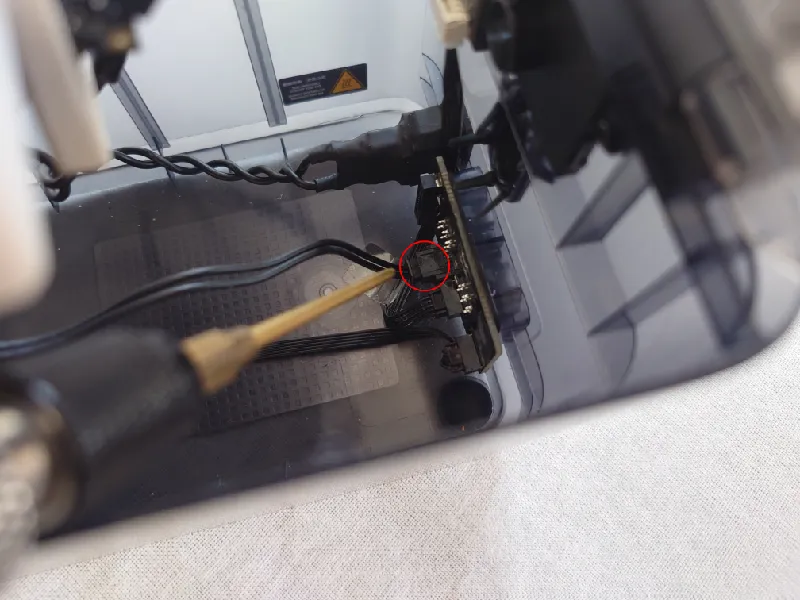

First, connect the the mainboard power cable here, it's the 2-pin cable that's a little thicker.

Next, connect the wide flat (14-pin) communication cable. This can be a bit more difficult to get installed so just take your time with it and identify the direction before you start.

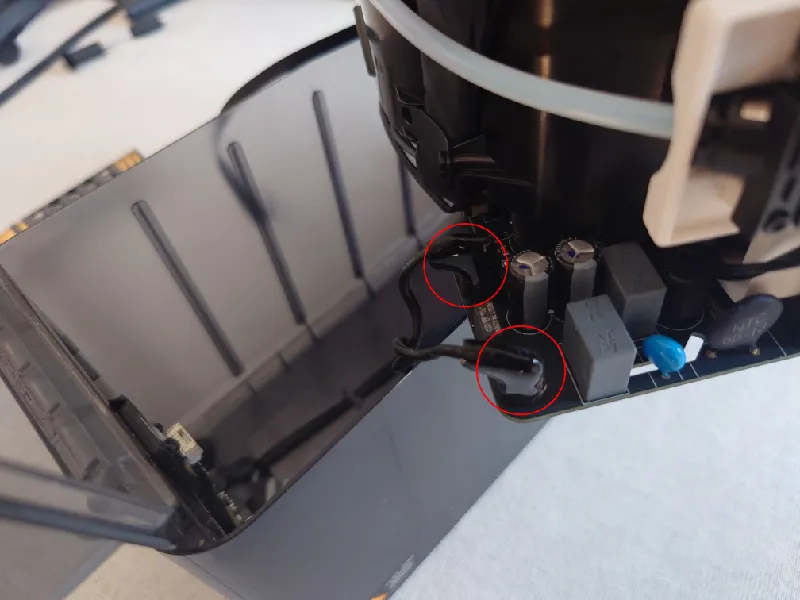

Next, connect the cables from the power socket in the box, don't forget to slide over the insulation sleeves afterwards, like pictured.

The polarity doesn't matter so connect either one to top or bottom.

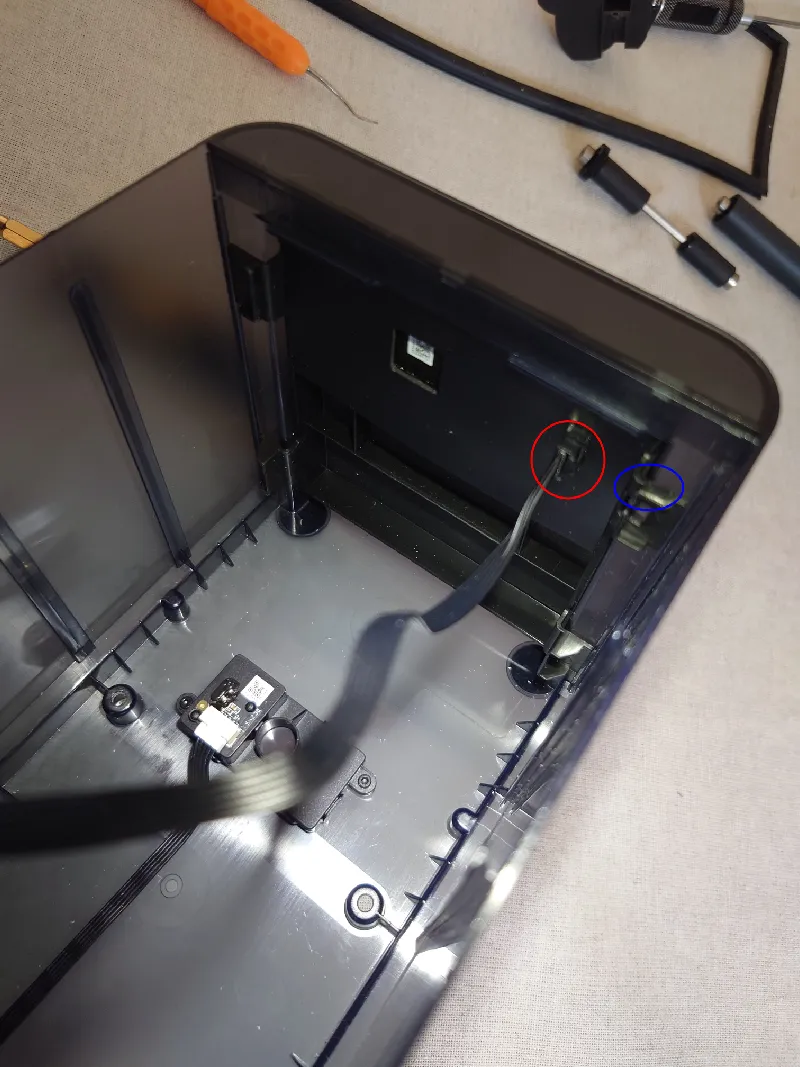

Connect the front screen cable here, circled in the red. Then guide the cable around the hook, circled in blue, to get it out of the way.

Now you can begin to slide down the Hydra AMS HT assembly into the box, make sure all cables are out of the way then install the rear side first then drop down the front.

Make sure the tabs in the rear go below the casing of the AMS HT box. Also, be careful with the hall sensor assembly in the rear with the rubber gasket and ensure it clears.

You can then fold down the front as well, you may need just force it slightly back to clear the retraction gear cover.

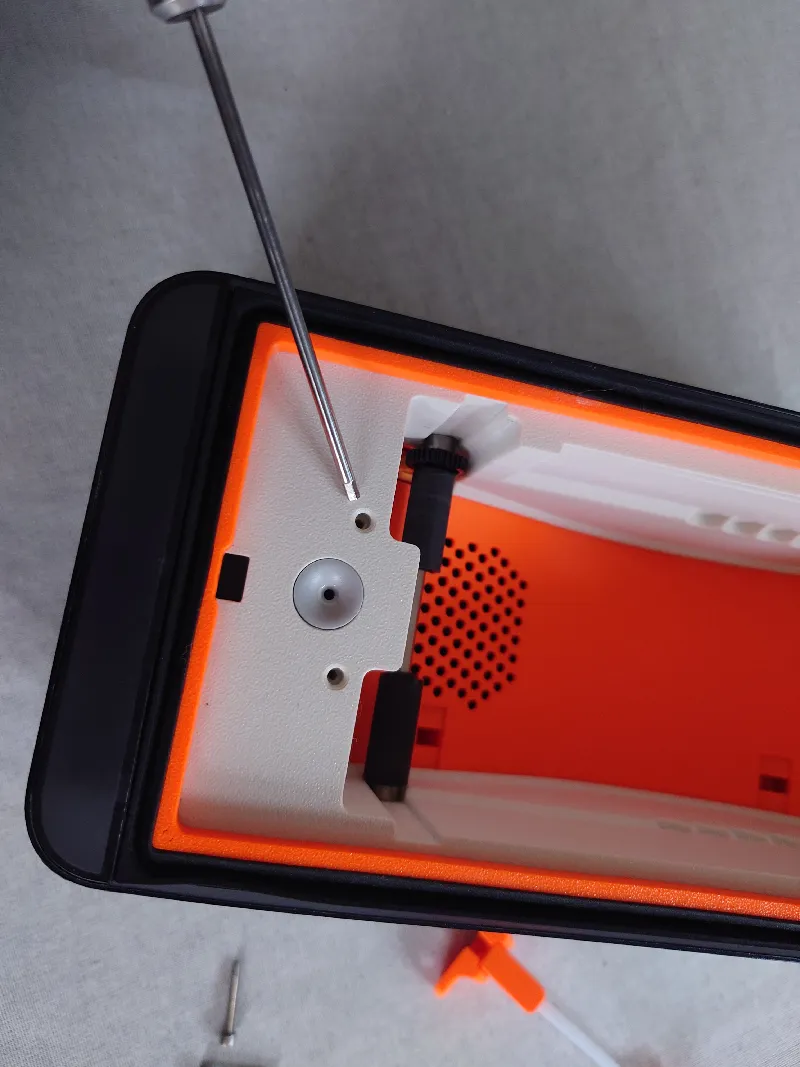

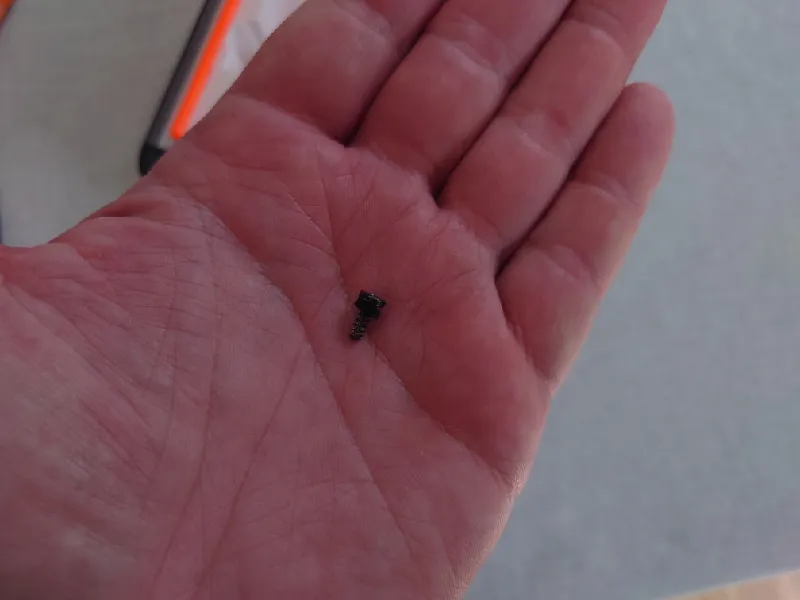

Secure it with two stock screws from below (BT3×8). I have just one pictured in my hand here but you should use two screws.

Adjust the Hydra AMS HT assembly until you see the columns lining up then install the screws.

Don't overtighten these! We don't want the columns snapping.

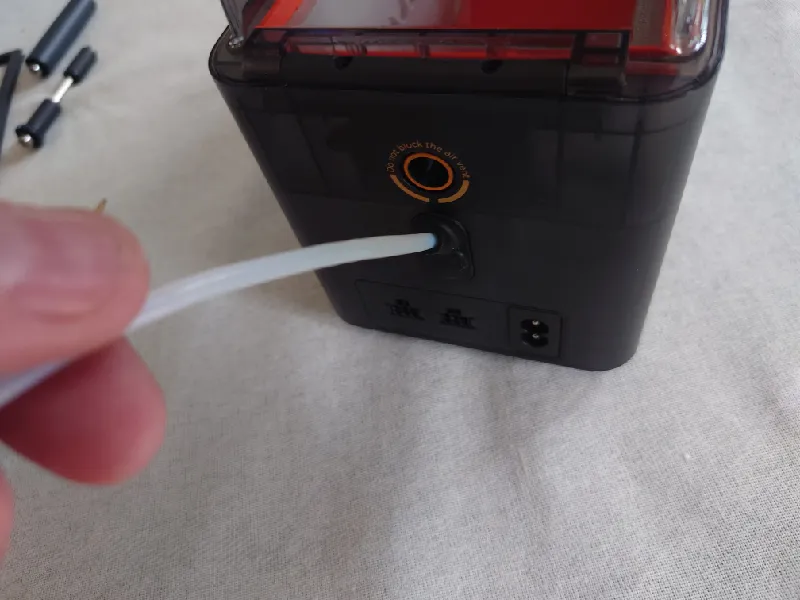

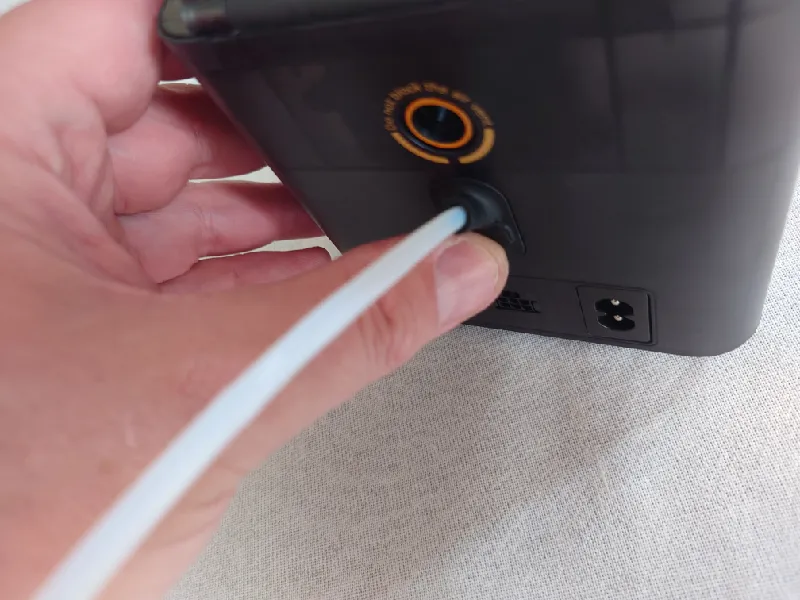

Install the external PTFE coming from/to your printer.

Press the release button to test it, it should release the PTFE tube. Then insert it again and pull on it, ensure it is locked in place.

Spool Guides

Now you can install the optional spool guides, they're used to keep the RFID spools as close to the RFID coil as possible for a good reading, or if you use narrow spools and keep them centered. I recommend using the guides both front and rear for perfect alignment.

Notice: The spool guides are bi-directional. The default position is show below, this is used to bring the spool as close as to the RFID as possible for a reading. If you flip it the other way it's suitable for smaller spools.

If you use extra wide spools you can remove the spool guides completely, then spools up to 77 mm wide will fit.

Now you'll see some small gaps in the front and rear of the unit. This is completely intentional as Hydra AMS HT was designed so it could be printed on smaller printers like the Bambu Lab X1/P1, not only larger printers. The gaps do not matter as they're sealed up in the next step (installing the lid gasket)

Lid Gasket

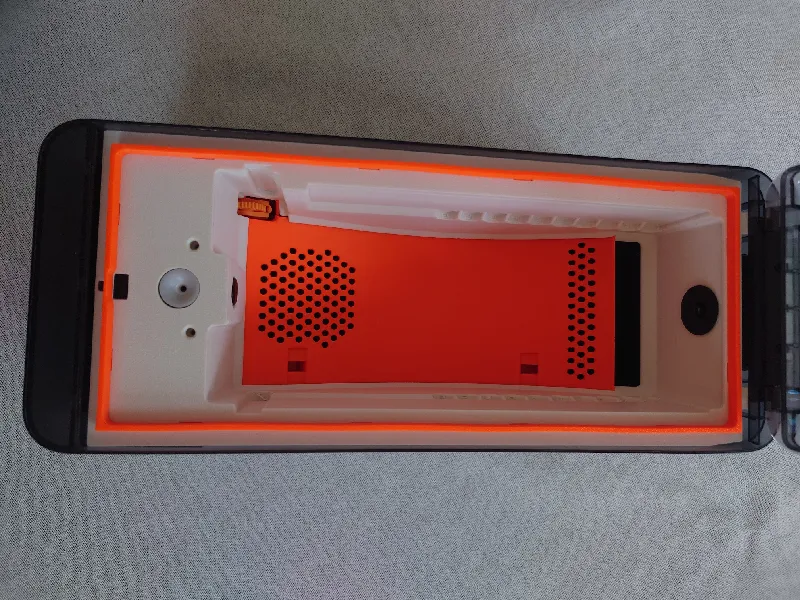

Install the lid gasket between the Hydra AMS HT just outside the seal divider. You should not have to use any additional glue, the stock glue will hold it.

Place the gasket evenly and do one corner at a time, then the middle of the gasket, pressing it down. Once you've done that, press the rest of the gasket straight down.

Then open and close the lid a few times and it should set nicely.

Rollers

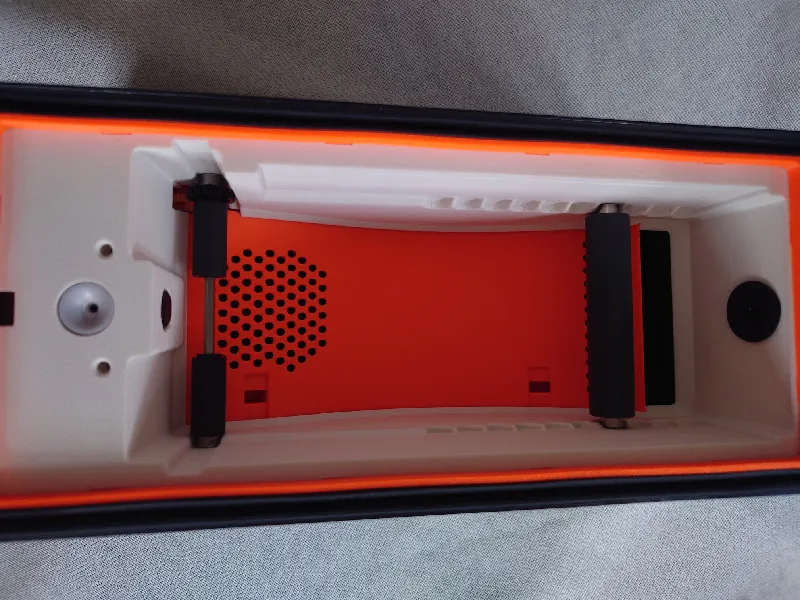

Just press down the front and rear roller, it snaps in place. The front roller is geared, the gear should of course sit on the same side as the yellow retraction gear below in the socket. The rear roller can be moved in different slots, depending on the size of your spool.

PTFE Guide

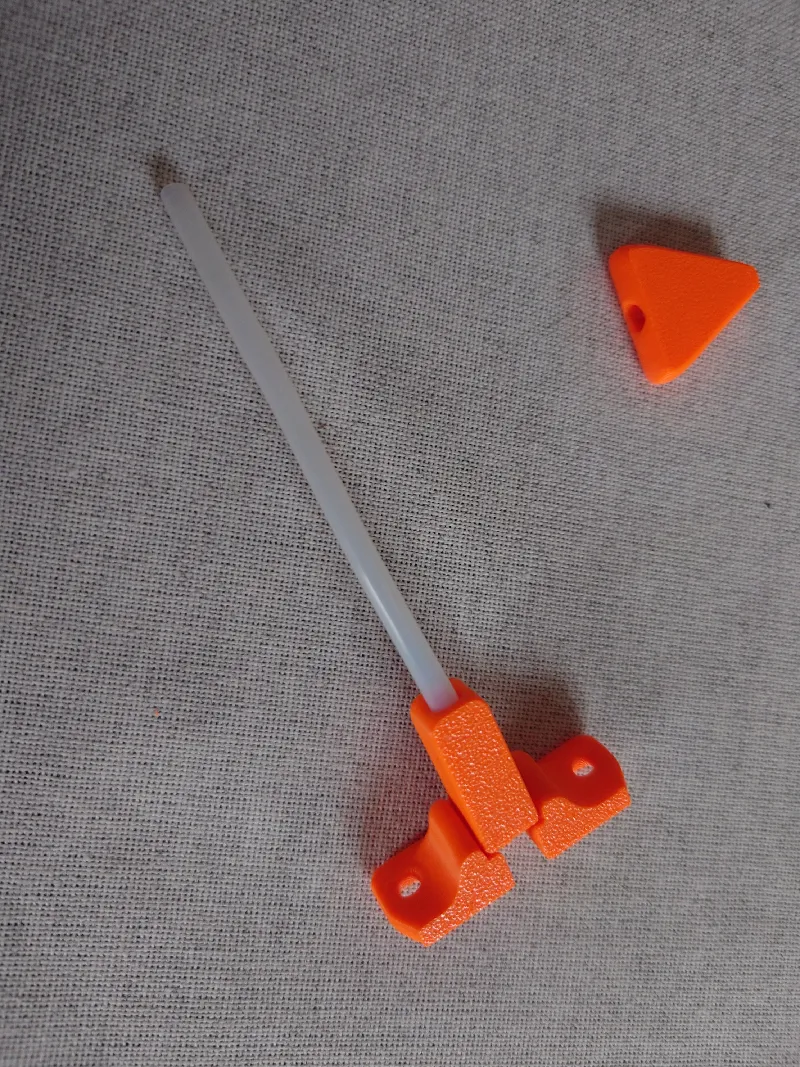

Install the PTFE guide. I recommend using two M3 x 20 mm socket heads and a short piece of PTFE, around 100 mm long. Optionally, you can use heated inserts and a shorter (8 mm) socket head but it's a bit overkill, there's plenty of material for just using threaded.

Press the PTFE tube fully to the bottom of both ends.

Then install it here using the M3 socket screws:

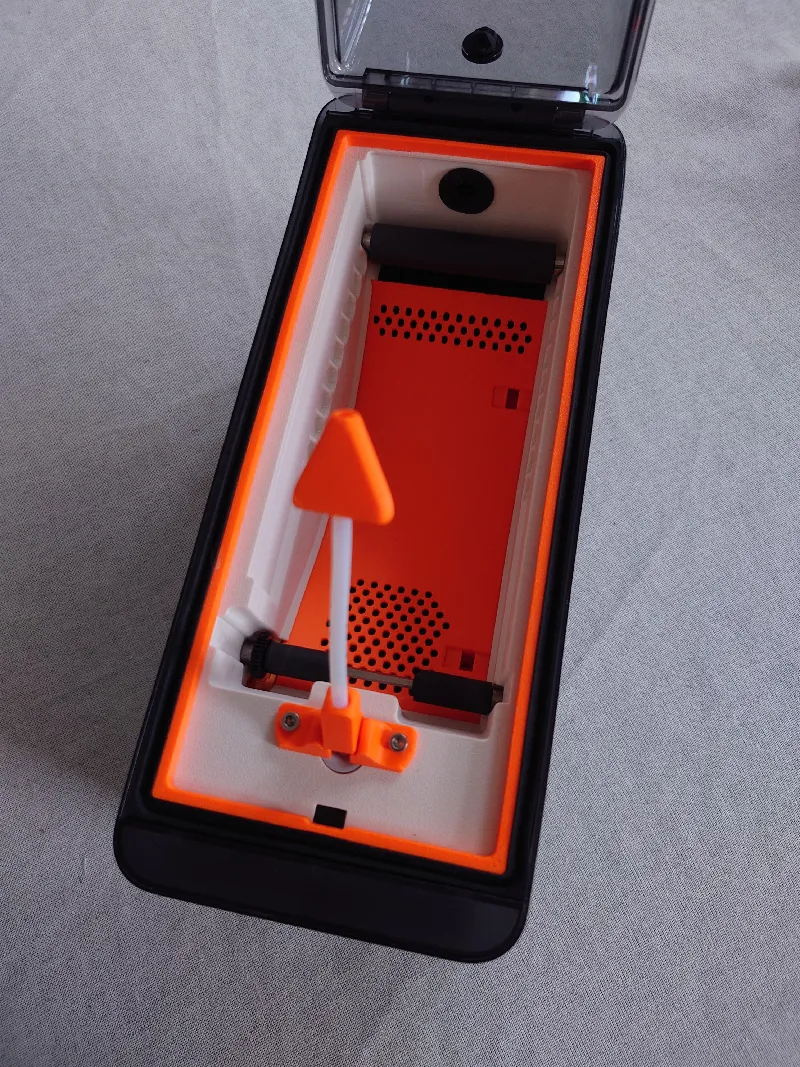

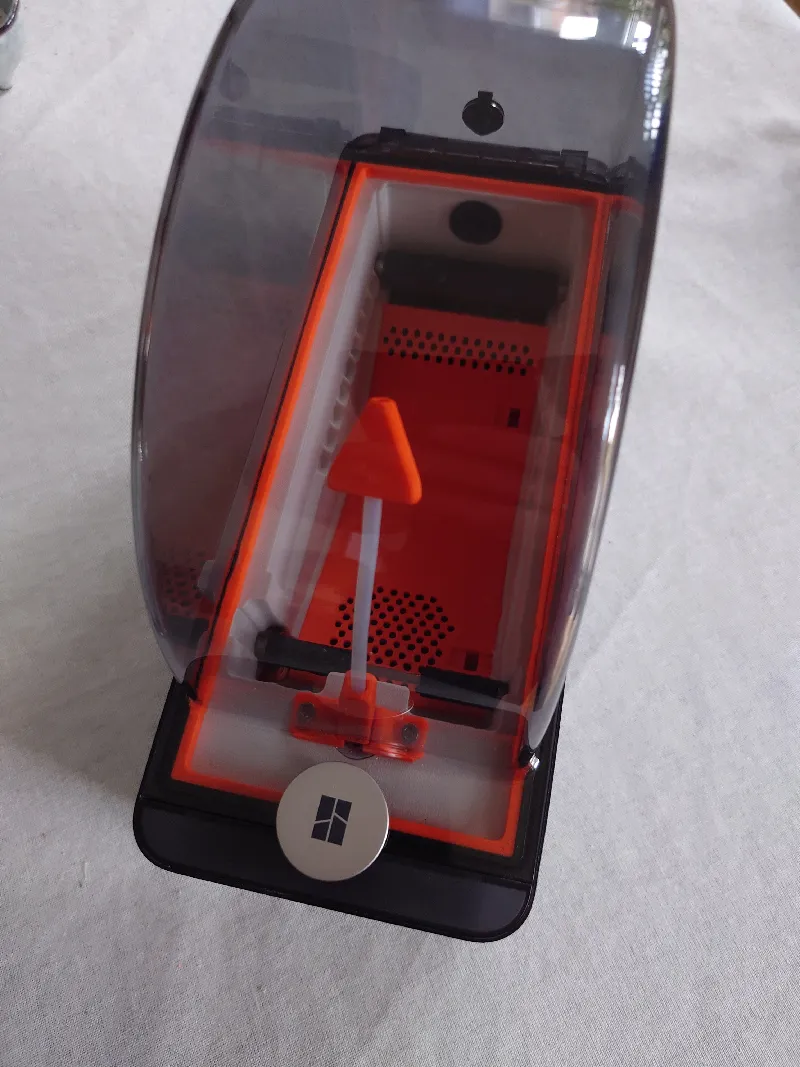

All done!

Confirm the lid closes and opens fine, you may need to press it down slightly harder than before as you've removed and install the lid gasket, it will settle once you've used it for a few times.

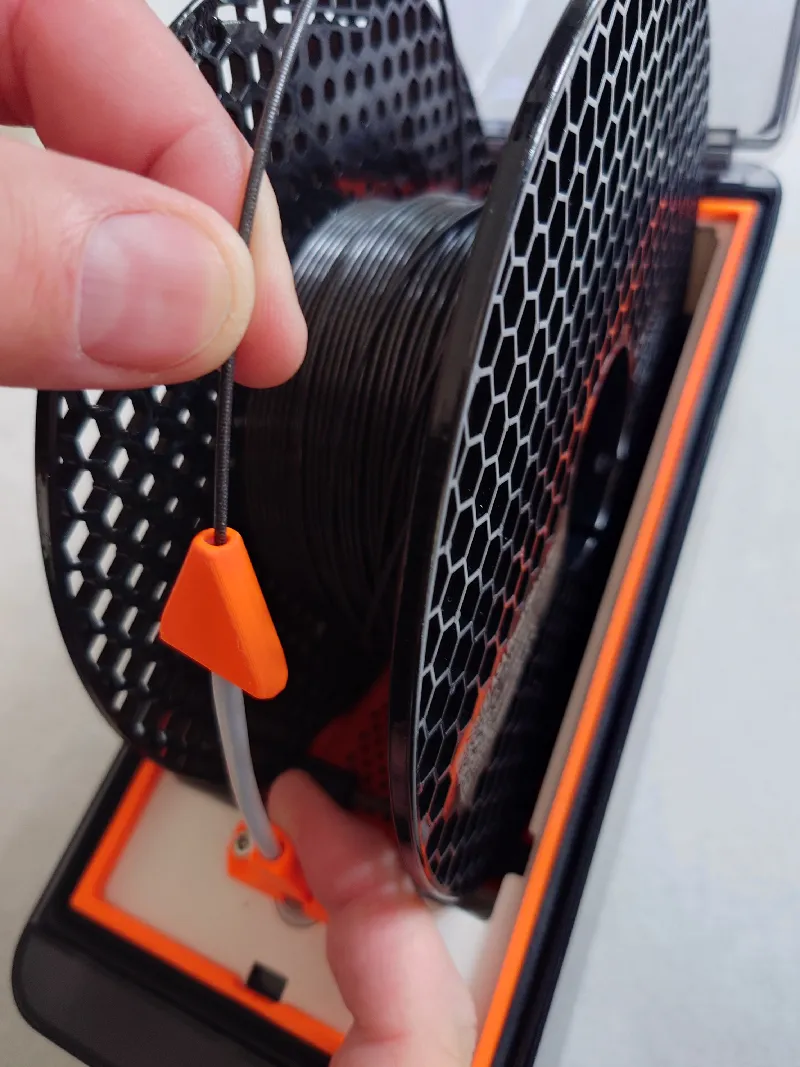

Tip: When loading a spool, stand up the filament guide so it enters the entry more easily.
