WAGOStation – Wallmounted WAGO Dispenser – 3D Printed Functional Display (221 Series)
Description
PDFThe WAGOStation is a fully 3D-printed, wallmounted dispenser and display system for WAGO 221 connectors.
Designed to bring structure and style to your workspace, it lets you store, organize, and dispense your connectors with precision and ease.
Each WAGOStation body holds three independent dispensing modules, compatible with 221-412, 221-413, and 221-415 connectors.
You can freely mix and match modules — creating the perfect setup for your workflow.
Assembly

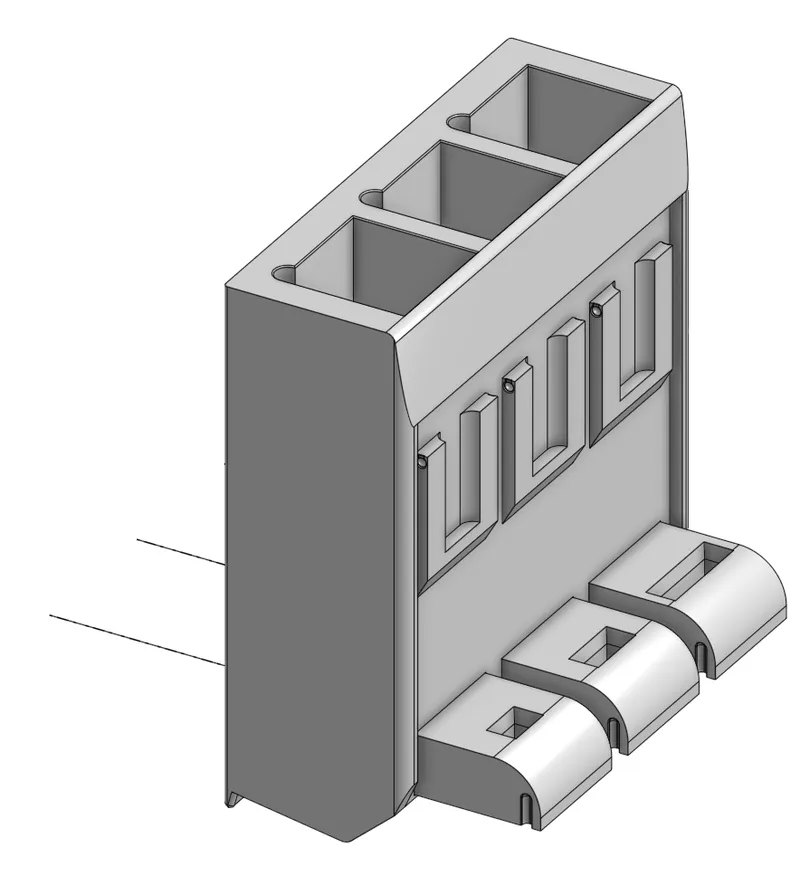

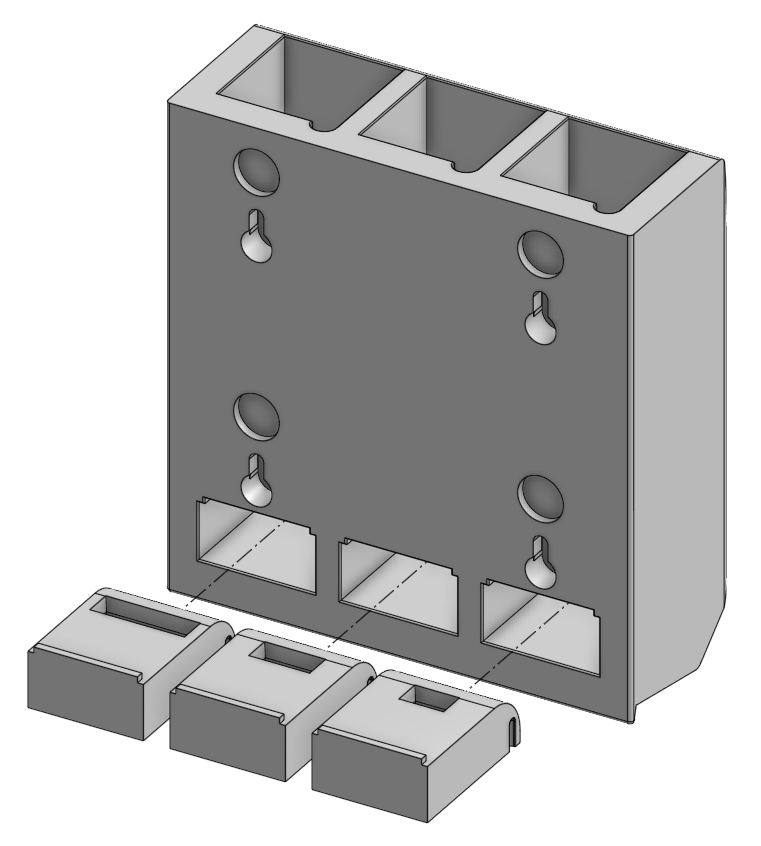

Insert Drawers – Slide the drawers into the body from the back.

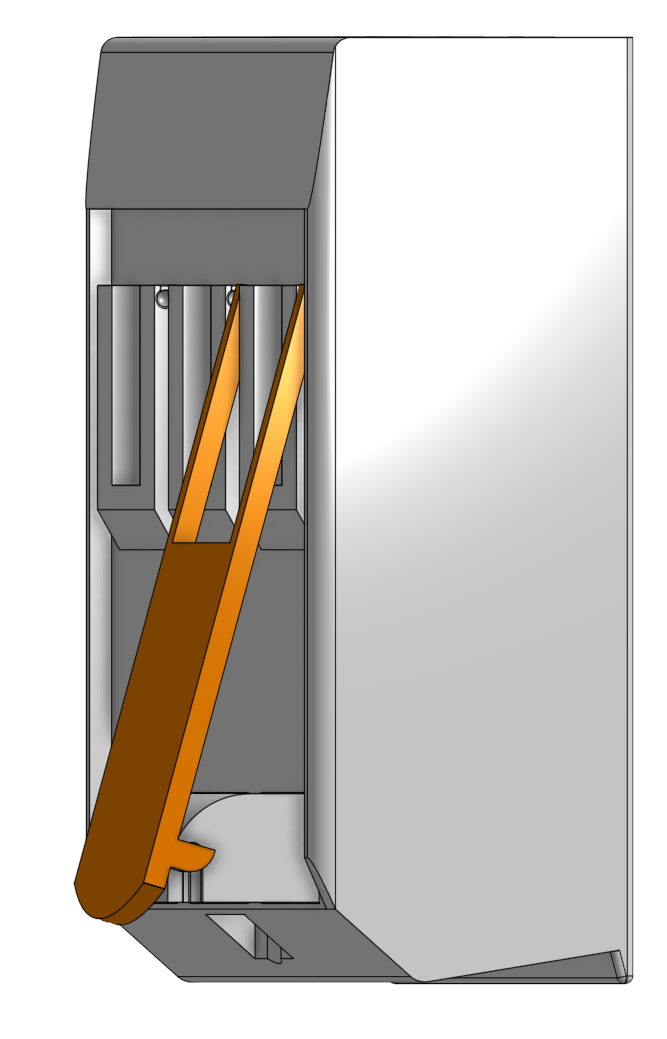

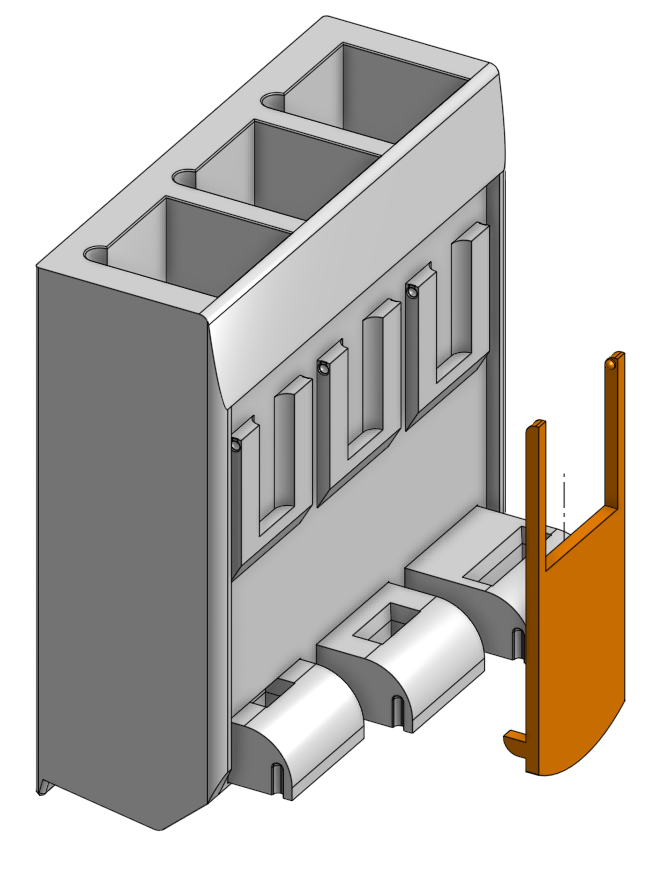

Mount Levers – Insert the levers from below into the drawer slots, then hook them into the top body recesses.

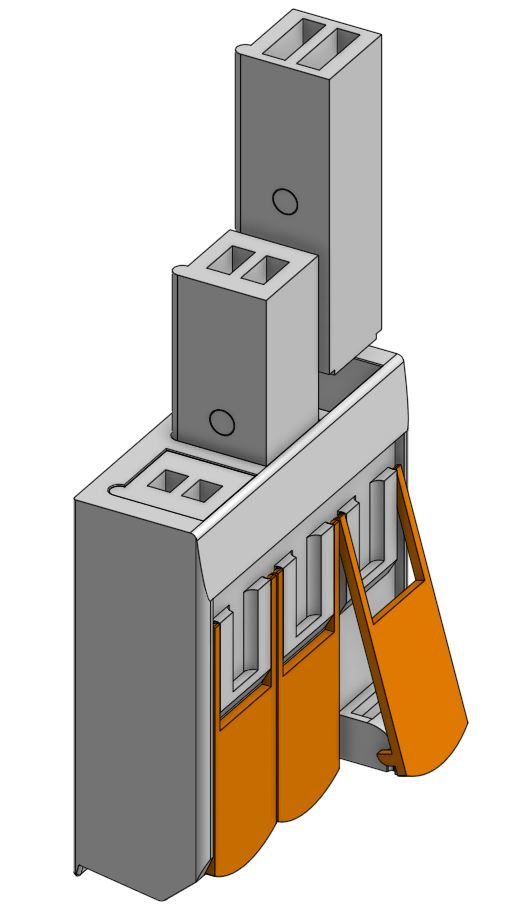

Add Magazines – Slide the magazines into the top openings of the body.
Load & Use – Fill the magazines with WAGO connectors and start dispensing!
Mounting Options
- Includes a drilling template for precise wall mounting
- Four mounting holes for screws

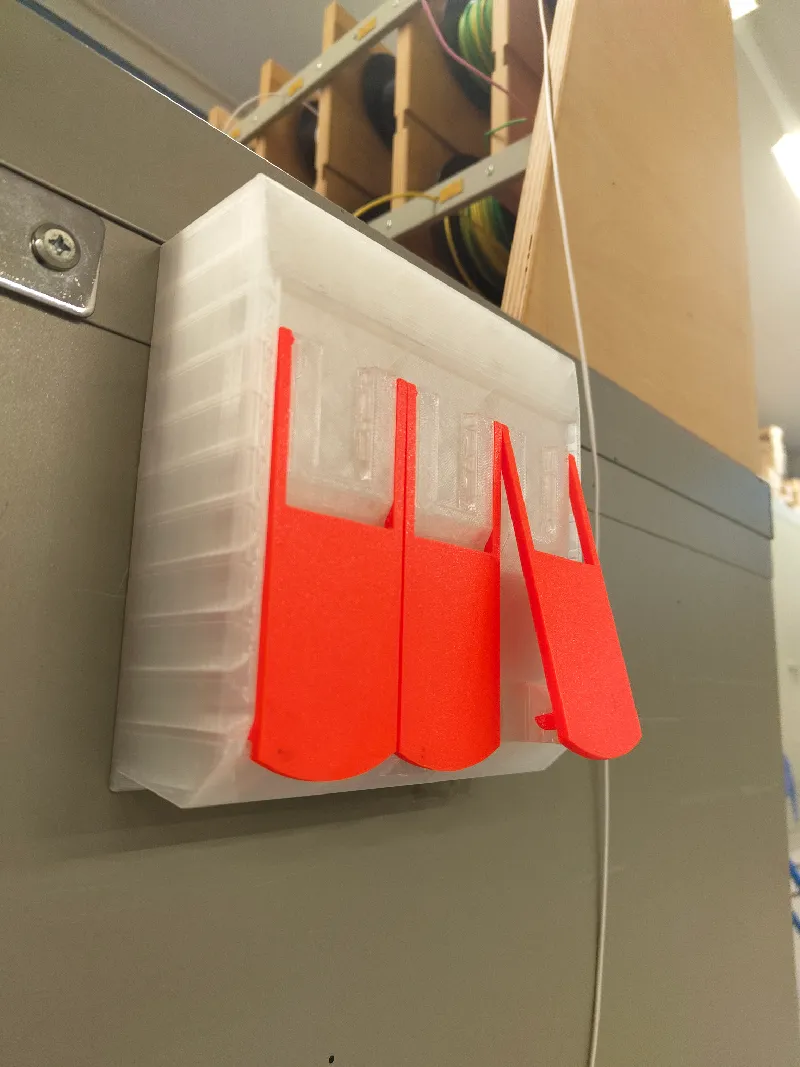

- Optional magnet recesses allow quick attachment to metal surfaces (15mm diameter)
Perfect for flexible workshop or mobile setups
Features
- Fully 3D printable – no extra hardware required
- Modular design with three bays per dispenser
- Interchangeable magazines and drawers
- Works with WAGO 221-412, 221-413, and 221-415

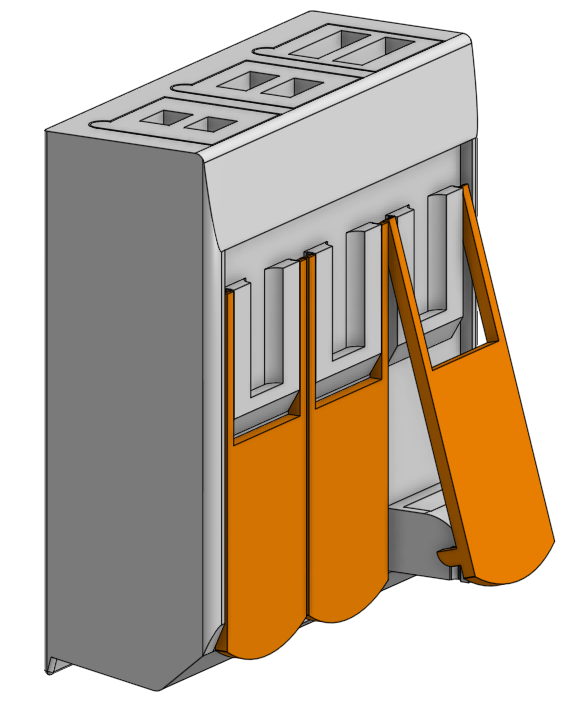

- Functional flip-levers modeled after the real 221 design
- Snap-fit assembly — no glue, no fuss
- Sturdy and ergonomic construction
- Great for workshops, labs, or tool displays
Tags
Model origin
The author marked this model as their own original creation.
