Frame for hanging pictures in a string (Fusion 360 parametrized included)

This is a simple frame to hang some pictures in a string in the wall, I have it in my daughter's room with some color strings and it looks quite nice, I'm printing more frames in more colors since she has like 30 pictures there.

It is easy to print with whatever configuration you choose, no supports are needed.

The models included are for 10x15cm (4x6 inches) pictures, horizontal and vertical versions (H and V at the end of the name), let me know if you want any other dimensions and I can create them for you.

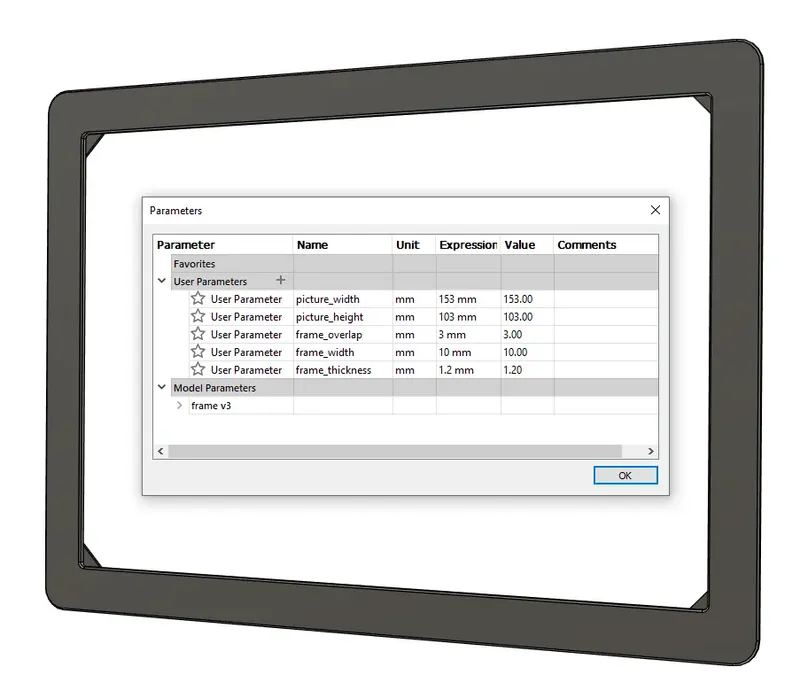

I also included the Fusion 360 file (.f3d extension), which is parametrized so you can customize your own design.

Parameters:

• picture_width and picture_height are the dimension of the picture for the frame dimensions and to set the corner supports, I added some millimeters for clearance. For vertical version just make picture_height larger than picture_width.
• frame_overlap is the part of the frame that will overlap the picture in the front side.
• frame_width is the total width of the frame sides, including the frame_overlap.
• frame_thickness is the thickness of the frame, it was too obvious :)

I hope you like it, have fun!
