Gaggia Classic Intake Tube Holder Experiments
Exploring an alternative to the Gaggiuino Tubing Consolidation.
For modded machines w/ active pressure and flow control
3
8
0
98
updated
October 31, 2025
Description
PDFDescription
Exploring an alternative to the Gaggiuino Tubing Consolidation.
Designed for modded Classic variants with active pressure and flow control (e.g. Gaggiuino).

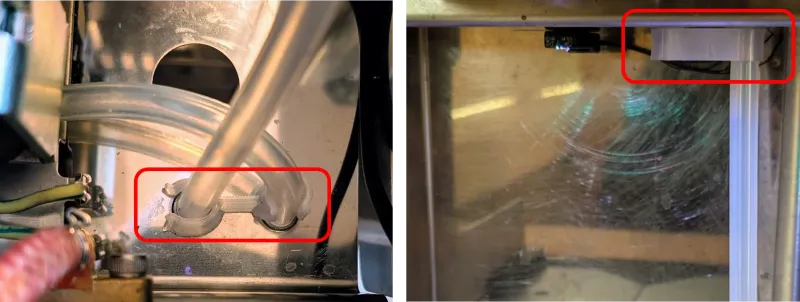

The intake tube should be moved to the right hole in the housing extended the depth of the water tank, and the OPV outlet tube in the left, extended ~10 mm out of the housing.
Each of the designs is an option to clip onto the tubing either inside the housing or in the water tank area. TubeHolder_Snap-On_SetHeight is for internal use only, while TubeHolder_Snap-On_Adhesive is for use below in the water tank area only.
