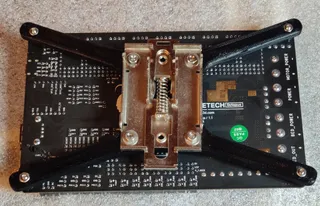

BTT Octopus mount for metal DIN rail clips

This is a bracket for mounting the BIGTREETECH BTT Octopus printer control board onto metal DIN rail clips like these here: https://de.aliexpress.com/item/32971006389.html

The intended purpose of this is for mounting the Octopus board in the electronics compartment of a larger 3D printer like a RatRig V-Core-3 or something similar.

Print Settings

Printer:

Prusa i3 MK3S

Rafts:

No

Supports:

No

Resolution:

0.2 mm

Infill:

25%

Filament:

Required hardware:

You'll need some M3 screws, washers, and nuts to attach the bracket to the metal clip and to the back of the Octopus board. The outer holes have hexagons to insert M3 nuts at the back.
