Bin filler and dispenser for smaller parts, especially for WAGO clamps

Bin filler and part dispenser for Honeycomb storage system

Functionality

With this model you can fill up your storage bins easily and fast by just pressing the bins against the front lip of the slider. A spring will bring the slider back to starting position.

It is functional for every popular kind of bin. E.g. FESTOOL with Systainer³, Allit, and of course Gridfinity

If you only want a few parts you can just press the button above and fill the parts into your hand.

Required hardware

This model requires one spring per module and a 2mm thick acrylic panel.

Spring size: 9x35mm

Panel size: 55x78mm

I am planning to replace both in a future update with printable parts.

Printing and settings

Try to use the .3mf file for orientation.

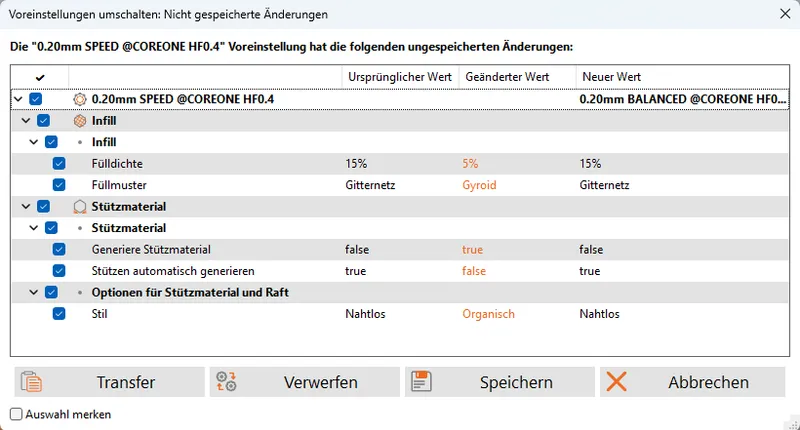

I changed the settings like above. it is important to activate organic supports. 5% infill is enough. You can see the modified supports in the .3mf file.

Slider and main body will be printed into each other. You do not have to change anything. Just enable supports and remove them when finished.

I used PETG but other materials should also work fine👌👍.

Make sure: The press label is not included. You are welcome to add custome text or logos if you want to. Like this you can put the logos of the companies of the parts like the wago logo you can find here: https://de.wikipedia.org/wiki/Datei:Logo_WAGO_2020.svg Make sure not to use such logos commercially and check the copyrights of the companies.

Here is the instruction to put text on objects: https://help.prusa3d.com/de/article/text-tool_399460

The full print will take around 7 hours and about 200g of material.

I only used the concept and sizes
