Ring of Fire - a guitar for CNC

The Ring of Fire is a guitar that was meant to be cut on a CNC router. It references a special stage of an eclipse. I've provided you with the .step file for easy modification of the guitar and for easier use with CAM. If you would like a 3d printed version of the guitar, let me know in the comments.

Setup: HH

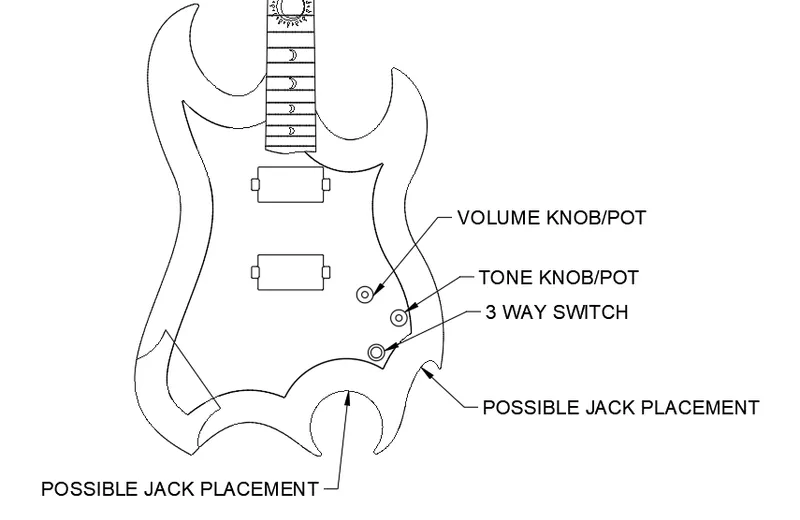

Wiring: 2 pots: one tone, one volume, and a 3 way switch

There is no hole specifically for a jack but I recommend a barrel jack that you can hand drill into the bottom of the guitar. Use the diagram given with the jack you buy to drill holes for best orientation and placement.

Bridge placement is not marked for customization of bridge. The scale length of the guitar is 25.5.

For example, a non tremolo style Stratocaster bridge would be about 25.25in away from the edge of the nut in order to account for saddle adjustment. You would drill your holes for your screws at that mark making sure the bridge is centered.

For more specific information and more Info for different bridges visit: https://www.stewmac.com/fret-calculator/ and plug in 25.5 for the scale length.

I'm still working on learning how to use cam, so I don't have a build video or something physical to show. But if you like what you see support me by purchasing or downlading this guitar (this file will be free untill tested). and I'll release more guitar files. Comment what kind of guitar you want to see next, or anything you would change on this guitar.
