Centauri Carbon Cable Arm - Sturdy Riser

UPDATE 11/3:

Elegoo has acknowledged the issue and designed a new cable for the printer. If you want an Elegoo supported solution please see this post: https://www.reddit.com/r/elegoo/comments/1onc5ee/response_to_the_feedback_on_the_print_head_cable

Credits:

A large amount of credit to baconmilkshake for his insistence that this is a serious issue that needs to be corrected. Into The Mild for his openness and ability to create usable and workable models and solutions. And for this riser, credit to Raymond for originally putting a cable arm on a riser and giving the community the idea to look into it.

The opencentauri discord server has been tracking the USB cable issue and doing what we can to attempt to mitigate this until Elegoo gives the community an acceptable response. If you want to track this issue or see what the community is working on, it's the place to be.

Requirements:

To utilize this cable arm properly, you will need the following:

1. You will want to install the cable strain guide from this link, you only need to follow the instructions to install the guide onto the toolhead: https://www.printables.com/model/1447575-elegoo-centarui-carbon-usb-cable-strain-guide-and
2. 16 m3x16 screws and nuts (For connecting the riser pieces)
3. 2 m4x8 or m4x10 screws
4. 1 m4 nut
5. 2 m4 washers
6. New PTFE tube (The stock one may not be long enough)

Suggest Materials:

• ASA/ABS: This will easily handle the temperatures inside the the chamber of the CC
• PETG (CF/GF): This should be sufficient for the internal temperatures of the CC, unless you have an active chamber heater you may want to go with ASA/ABS. This is what I used.
• Polymaker HT PLA: This is the only PLA I would recommend to use for a riser on the CC
• Other: If you wanted to use Nylon or PC for this you could, but is definitely overkill and expensive

Printing:

I highly recommend using the provided 3mf files, they have supports painted on, and there are speed modifiers so that the vented frames print cleaner. There are also two options for the riser, one without Elegoo memes on it, and another with memes that pay homage to the issue we are attempting to correct.

You will need to print out the following items regardless of the riser you choose:

1. 1 - Back Mount Frame
2. 3 - Either vented or solid frames (Personal preference)
3. 2 - Front Right/Rear Left Corners
4. 2 - Front Left/Rear Right Corners
5. 1 - Cable Arm Mount
6. 1 - Cable Arm
7. As many cable clips as you need

Assembly:

I believe Assembly of the riser is pretty self explanatory so I will just provide instructions on attaching the cable arm and mount:

1. Determine how high you want the cable arm to be, you can rotate the Arm Mount either up or down, and install the Cable Arm to the mount on either the top or bottom. You can reference the pictures in the following steps to see where I installed mine.

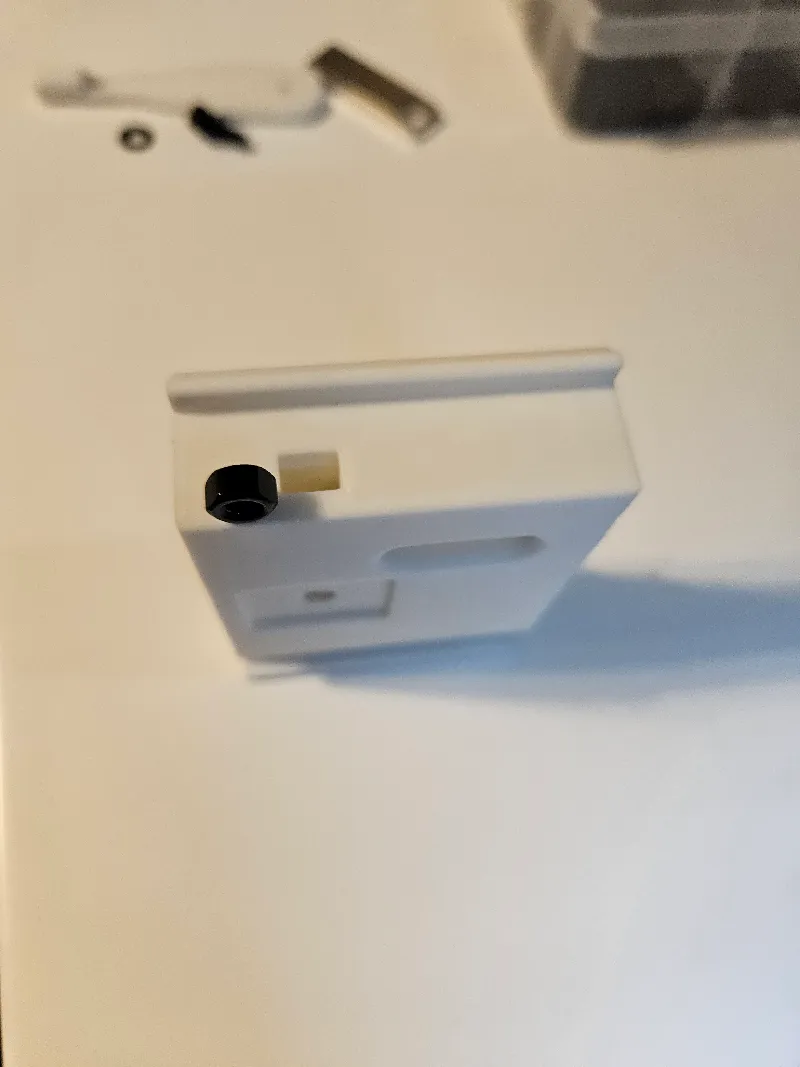

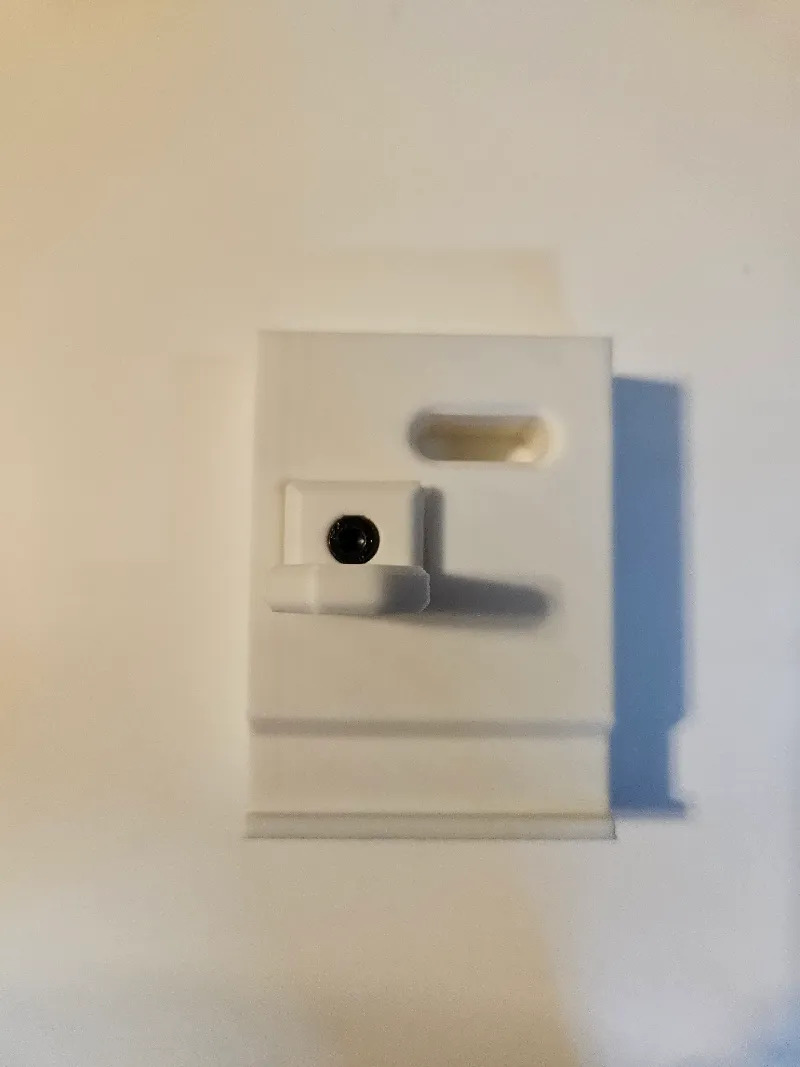

2. On the back mount frame drop the m4 nut down the channel on top. Then install the Cable Arm mount in the chosen orientation.

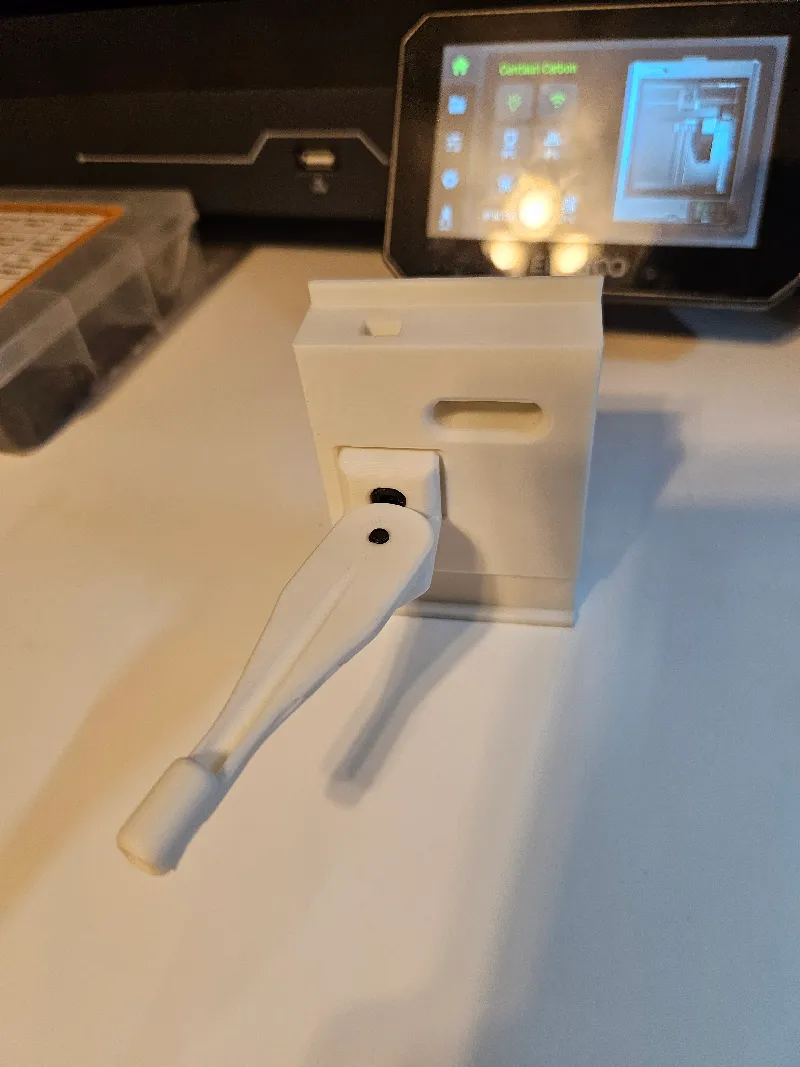

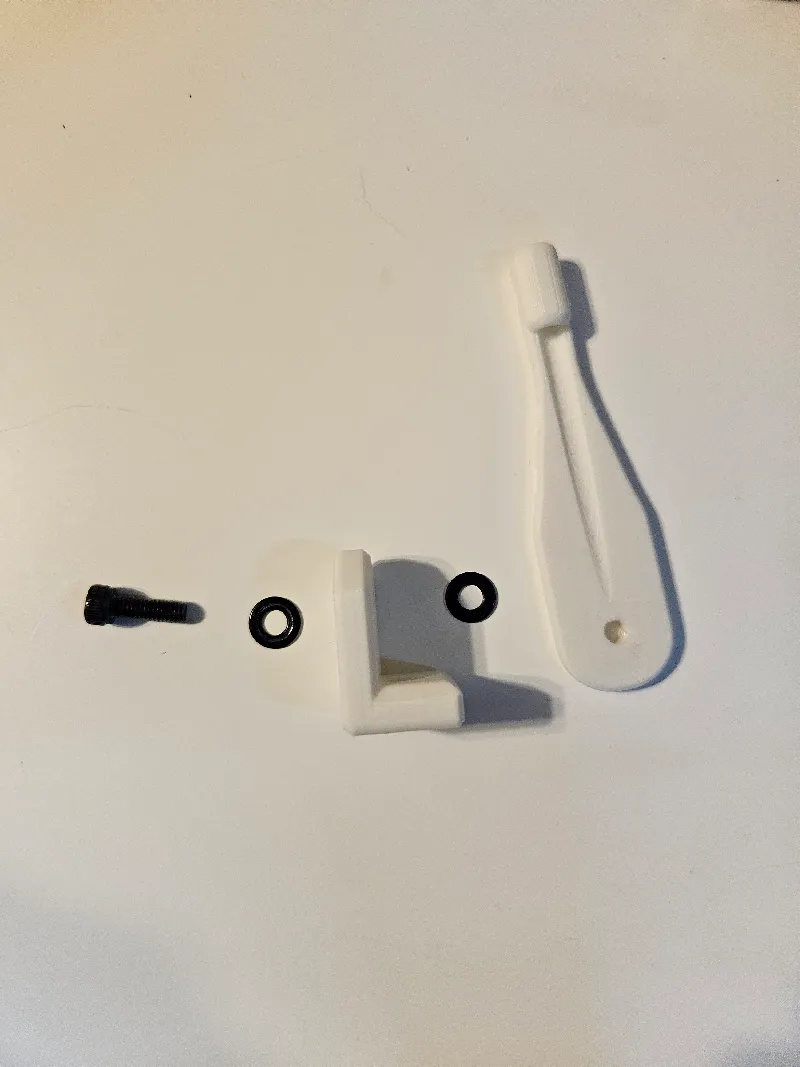

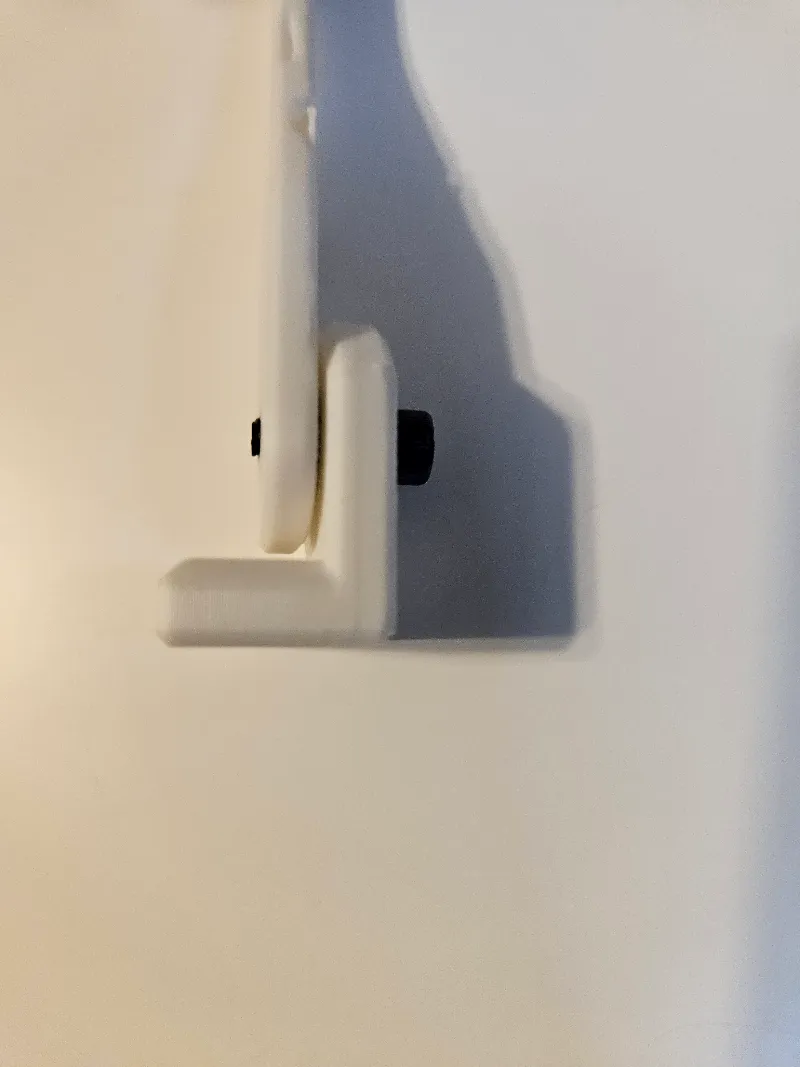

3. Attach the Cable Arm to the Cable Arm Mount using the m4x10 screw, and both washers. The Cable Arm has self tapping threads that should grab on pretty tight. Do not over tighten this screw, you want the arm to be able to move smoothly.

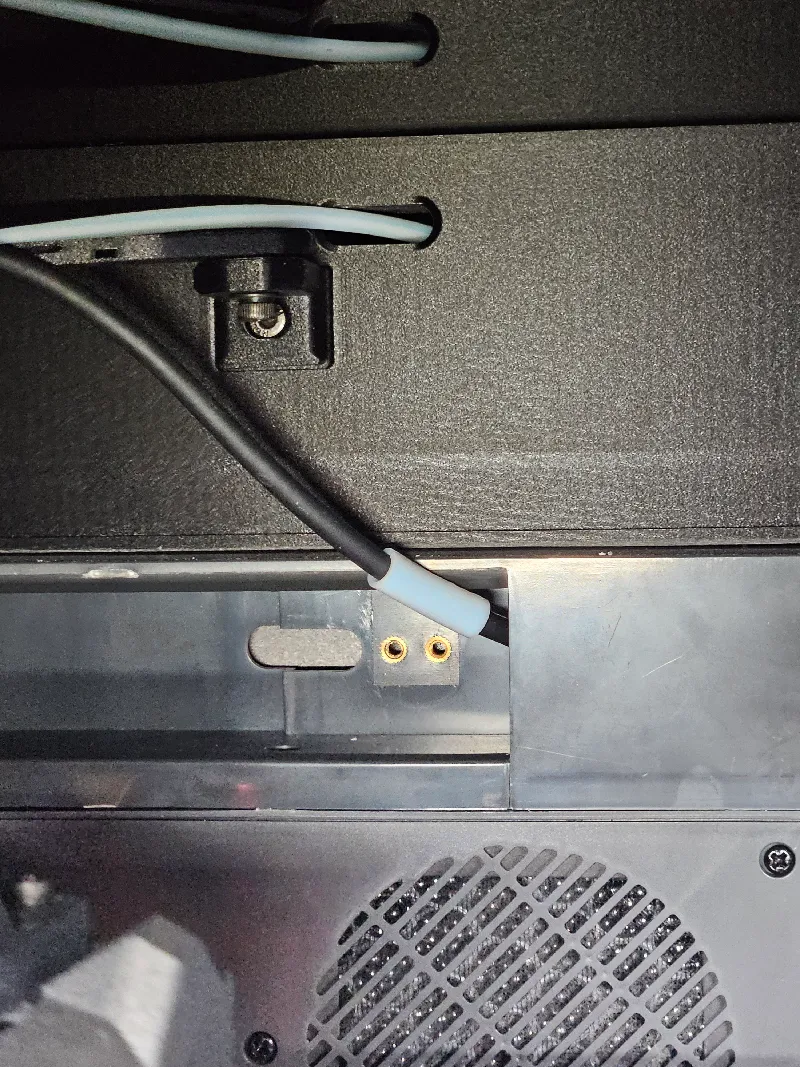

4. Move PTFE Tube through the opening in the back and through the enclosed Cable Arm hole and put the USB cable through the Cable Arm hole with an opening.



5. Connect the PTFE and USB cable with the cable clips.

6. If you find that the cable drags against the opening where it's routed, I cut a small piece of 5mm Inner Diameter PTFE and placed it on the cable at that point.

TODO:

1. Upload Step files

UPDATE 10/27:

1. Uploaded M5 Screw and Nut Version

I took the Sturdy riser model and added the PTFE tube arm to support the cables higher to work with the USB Cable Strain Guide.
